Search › Model › VG45

VG45

Toyota CENTURY · 1990 · 7,453 parts · 231 categories
VG45 ×

← Back to categories

7,453 items

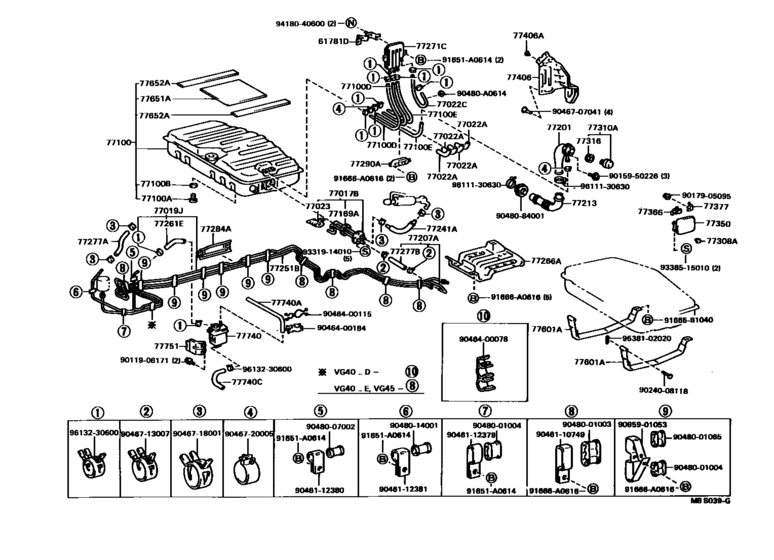

Fuel Tank & Tube ([09.1990 - 12.1992] VG45=ﾘﾑｼﾞﾝL (8709-9212)VG40 ; (9009-9212)VG45) 122
#OEMPart name
61781 61781-91401 Bracket, Fuel Vapor Liquid Separator
77017 77017-91401 Tube Sub-Assy, Fuel Tank Vent
77019 77019-40010 Tube Sub-Assy, Fuel Tank To Canister
77019 77019-40030 Tube Sub-Assy, Fuel Tank To Canister
77019 77019-91404 Tube Sub-Assy, Fuel Tank To Canister
77019 77019-91405 Tube Sub-Assy, Fuel Tank To Canister
77022 90445-20025 Hose, Fuel(For Fuel Evaporative Separator)
77022 95333-06070 Hose Or Tube(For Fuel Evaporative Separator)
77022 95333-06100 Hose (L=1000)
77023 77023-30010 Filter Sub-Assy, Fuel Suction Tube
77100 77001-40900 Tank Assy, Fuel
77100 77001-40902 Tank Assy, Fuel
77100 77001-91496 Tank Assy, Fuel
77100 77001-40901 Tank Assy, Fuel
77100 90341-20004 Plug(For Fuel Tank)
77100 90430-20007 Gasket(For Fuel Tank)
77100 90445-12113 Hose, Fuel, No.1(For Fuel Tank)
77100 90445-12114 Hose, Fuel, No.2(For Fuel Tank)
77100 90445-22020 Hose, Fuel, No.1(For Fuel Tank)
77169 77169-14020 Gasket, Fuel Tank Vent
77201 77201-91405 Pipe Sub-Assy, Fuel Tank Inlet
77207 77207-40010 Tube Sub-Assy, Fuel Return
77207 77207-40030 Tube Sub-Assy, Fuel Return
77207 77207-91404 Tube Sub-Assy, Fuel Return
77207 77207-91405 Tube Sub-Assy, Fuel Return
77213 77213-91404 Hose, Fuel Tank Sub Inlet
77241 77049-91401 Hose, Fuel, No.1 (For Main Tube, No.1)
77251 77251-40010 Tube, Fuel Main
77251 77251-40030 Tube, Fuel Main
77251 77251-91411 Tube, Fuel Main
77251 77251-91412 Tube, Fuel Main
77261 95333-06030 Hose, Fuel
77261 95338-06030 HOSE, FUEL
77266 77038-91401 Protector, Fuel Tube, No.1
77271 77271-13010 Separator Sub-Assy, Fuel Evaporative
77277 95336-08030 Hose, Fuel, No.1(For Return Tube, No.1)
77277 95333-08020 Hose, Lpg Injector
77277 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77284 77284-91403 Protector, Fuel Tube, No.3
77284 77284-91404 Protector, Fuel Tube, No.3
77290 77290-40010 Grommet Assy, Fuel Hose
77290 77290-91600 Grommet(For Fuel Evaporative Separator Fuel Hose)
77308 90541-06026 Cushion(For Fuel Inlet Box Cover)
77310 77310-16011 Cap Assy, Fuel Tank
77310 77310-12140 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-91401 Cover Sub-Assy, Fuel Inlet Box
77366 77360-24010 Retainer, Fuel Inlet Cushion
77377 77377-24010 Retainer, Fuel Filler Opening Lid Lock
77406 77406-91401 Protector Sub-Assy, Fuel Tube
77406 90467-06017-01 Clip(For Front Bumper Retainer)
77406 90467-06017-11 Clip(For Front Bumper Retainer)
77406 90467-06017-B7 Clip(For Deck Trim Side Cover)
77406 90467-06017-22 Clip(For Instrument Panel Under Cover)
77406 90467-06017-C0 Clip, Rear Floor Mat Set (BLACK)
77406 90467-06017-37 Clip (For Center Pillar Garnish Panel, Upper)
77406 90467-06017-47 Clip (For Center Pillar Garnish Panel, Upper)
77406 90467-06017-51 Clip(For Luggage Compartment Trim Rear Cover)
77406 90467-06017-53 Clip(For Instrument Panel Under Cover)
77406 90467-06017-54 Clip(For Instrument Panel Under Cover)
77406 90467-06017-57 Clip (For Center Pillar Garnish Panel, Upper)
77406 90467-07041-01 Clip(For Radiator Lower Air Deflector)
77406 90467-07041-C0 Clip(For Steering Column Cover)
77406 90467-07041-13 Clip(For Instrument Panel Under Cover)
77406 90467-07041-B8 Clip(For Steering Column Cover)
77406 90467-07041-26 Clip(For Instrument Panel Under Cover)
77406 90467-07041-34 Clip(For Instrument Panel Under Cover)
77406 90467-07041-43 Clip(For Instrument Panel Under Cover)
77406 90467-07041-P0 Clip(For Rear Seat Side Garnish)
77406 90467-07041-59 Clip(For Instrument Panel Under Cover)
77406 90467-07041-B4 Clip(For Instrument Panel Under Cover)
77406 90467-07041-E0 Clip(For Instrument Panel Under Cover)
77406 90467-07041-E8 Clip(For Instrument Panel Under Cover)
77406 90467-07041-E9 Clip(For Instrument Panel Under Cover)
77406 90467-07146 Clip
77601 77601-91403 Band Sub-Assy, Fuel Tank, No.1
77651 77651-91401 Cushion, Fuel Tank, No.1
77652 77652-91401 Cushion, Fuel Tank, No.2
77740 77704-40040 Canister Assy, Charcoal
77740 90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift)
77740 90445-12241 Hose, Fuel, No.3(For Charcoal Canister)
77751 77750-40020 Bracket, Charcoal Canister Base
90480 90480-A0614 New Genuine Part
91651 91651-A0614 BOLT WWASHER
91651 91653-A0614 BOLT WWASHER
91665 91665-B1040 New Genuine Part
91666 91666-A0616 New Genuine Part
91666 91661-B0614 New Genuine Part
9011906171 90119-06171 BOLT
9015950226 90159-50226 New Genuine Part
9017905095 90179-05095 NUT
9017905095 90179-05004 NUT
9024008118 90240-08118 Pin (For Fuel Tank Band)
9046110749 90461-10749 New Genuine Part
9046112379 90461-12379 New Genuine Part
9046112379 90461-10061 New Genuine Part
9046112380 90461-12380 New Genuine Part
9046112381 90461-12381 New Genuine Part
9046112381 90461-10932 New Genuine Part
9046400078 90464-00078 New Genuine Part
9046400115 90464-00115 New Genuine Part
9046400184 90464-00184 Clamp, Vacuum Tube
9046707041 90467-07041 Clip(For Instrument Lower Cover)
9046713007 90467-13007 Clamp Or Clip(For Water By-Pass Hose No.2)
9046713007 96132-51300 Clip(For Ventilation Hose No.2)
9046718001 90467-18001 Clip(For Ventilation Hose No.2)
9046720005 90467-20005 Clip(For Ventilation Hose No.2)
9046720005 96134-41900 Clip Or Clamp(For Ventilation Hose)
9048001003 90480-01003 New Genuine Part
9048001004 90480-01004 New Genuine Part
9048001065 90480-01065 New Genuine Part
9048007002 90480-07002 New Genuine Part
9048014001 90480-14001 New Genuine Part
9048084001 90480-84001 New Genuine Part
9095901053 90959-01053 New Genuine Part
9331914010 93319-14010 SCREW
9338515010 93385-15010 Screw(For Steering Tilt Lever)
9418040600 94180-40600 Retainer, Roof Window Hinge
9538102020 95381-02020 PIN
9611130630 96111-30630 New Genuine Part
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
