Search › Model › VG45

VG45

Toyota CENTURY · 1990 · 7,453 parts · 231 categories

7,453 items

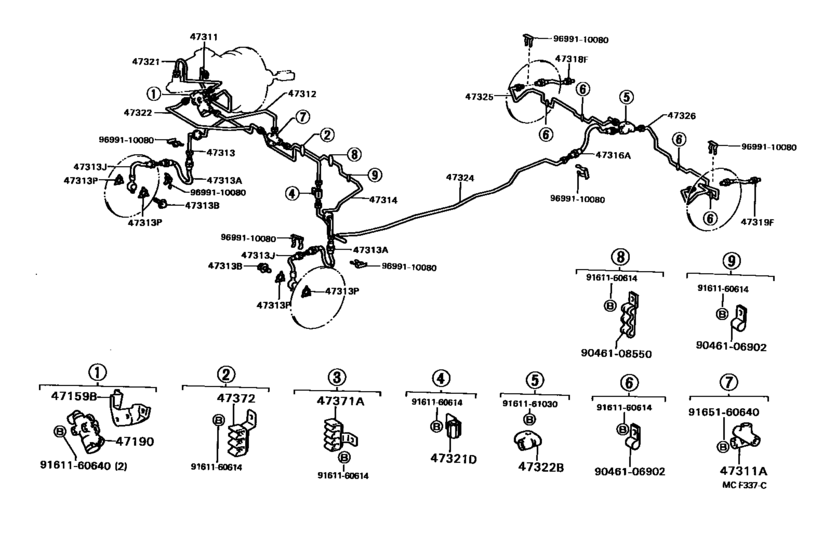

Brake Tube & Clamp ([09.1987 - ] (8709- )) 45

#	OEM	Part name
47159	47159-30150	Bracket, Proportioning Valve
47190	47190-40030	Valve Assy, Proportioning & By-Pass
47311	47311-40081	Tube, Front Brake, No.1
47312	47312-40070	Tube, Front Brake, No.2
47313	47313-40080	Tube, Front Brake, No.3
47313	90947-02947	Hose, Flexible, No.1(For Front)
47313	96950-32905	Hose, Flexible, No.1(For Front)
47313	96950-32906	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90947-02741	Hose, Flexible, No.2(For Front)
47313	90947-02930	Hose, Flexible, No.2(For Front)
47313	96960-39906	Hose, Flexible, No.2(For Front)
47313	90947-02945	Hose, Flexible, No.2(For Front)
47313	47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47314	47314-40080	Tube, Front Brake, No.4
47316	90947-02946	Hose, Flexible(For Rear Brake Tube)
47316	96940-32606	Hose, Flexible(For Brake Tube)
47316	96940-32607	Hose, Flexible(For Brake Tube)
47318	90947-02932	Hose, Flexible(For Rear Rh)
47318	96940-32106	Hose, Flexible(For Rear Rh)
47318	96940-32105	Hose, Flexible(For Rear Rh)
47318	96940-32156	Hose, Flexible(For Rear Rh)
47321	47321-40011	Tube, Rear Brake, No.1
47321	90412-10041	Way, No.1(For Rear Brake Tube)
47321	90412-10167	Way(For Front Brake Tube)
47322	47322-40060	Tube, Rear Brake, No.2
47322	90413-10086	Way(For Rear Brake Tube)
47324	47324-40030	Tube, Rear Brake, No.4
47324	47324-40040	Tube, Rear Brake, No.4
47325	47325-40010	Tube, Rear Brake, No.5
47325	47325-40020	Tube, Rear Brake, No.5
47326	47326-40010	Tube, Rear Brake, No.6
47326	47326-40020	Tube, Rear Brake, No.6
47371	47371-40010	Clamp, Brake Tube, No.1
47372	47371-40020	Clamp, Brake Tube, No.2
9046106902	90461-06902	Clamp, Brake Tube, No.3
9046108550	90461-08550	New Genuine Part
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161160640	91611-60640	New Genuine Part
9161161030	91611-61030	Bolt (For Transmission Control Cable Bracket)
9161161030	91612-61030	Bolt (For Transmission Control Cable Bracket)
9165160640	91651-60640	Bolt, Rear Body Mounting
9165160640	91651-B0640	Bolt, Rear Body Mounting
9699110080	96991-10080	CLIP

OEM	Part name	Category
47159-30150	Bracket, Proportioning Valve	Brake Tube & Clamp ([09.1987 - ] (8709- ))
47190-40030	Valve Assy, Proportioning & By-Pass	Brake Tube & Clamp ([09.1987 - ] (8709- ))
47311-40081	Tube, Front Brake, No.1	Brake Tube & Clamp ([09.1987 - ] (8709- ))
47312-40070	Tube, Front Brake, No.2	Brake Tube & Clamp ([09.1987 - ] (8709- ))
47313-40080	Tube, Front Brake, No.3	Brake Tube & Clamp ([09.1987 - ] (8709- ))
47314-40080	Tube, Front Brake, No.4	Brake Tube & Clamp ([09.1987 - ] (8709- ))
47321-40011	Tube, Rear Brake, No.1	Brake Tube & Clamp ([09.1987 - ] (8709- ))
47322-40060	Tube, Rear Brake, No.2	Brake Tube & Clamp ([09.1987 - ] (8709- ))
47324-40030	Tube, Rear Brake, No.4	Brake Tube & Clamp ([09.1987 - ] (8709- ))
47324-40040	Tube, Rear Brake, No.4	Brake Tube & Clamp ([09.1987 - ] (8709- ))
47325-40010	Tube, Rear Brake, No.5	Brake Tube & Clamp ([09.1987 - ] (8709- ))
47325-40020	Tube, Rear Brake, No.5	Brake Tube & Clamp ([09.1987 - ] (8709- ))
47326-40010	Tube, Rear Brake, No.6	Brake Tube & Clamp ([09.1987 - ] (8709- ))
47326-40020	Tube, Rear Brake, No.6	Brake Tube & Clamp ([09.1987 - ] (8709- ))
47371-40010	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([09.1987 - ] (8709- ))
47371-40020	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([09.1987 - ] (8709- ))
47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
90412-10041	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
90412-10167	Way(For Front Brake Tube)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
90413-10086	Way(For Rear Brake Tube)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
90461-06902	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([09.1987 - ] (8709- ))
90461-08550	New Genuine Part	Brake Tube & Clamp ([09.1987 - ] (8709- ))
90947-02741	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
90947-02930	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
90947-02932	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
90947-02945	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
90947-02946	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
90947-02947	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
91611-60640	New Genuine Part	Brake Tube & Clamp ([09.1987 - ] (8709- ))
91611-61030	Bolt (For Transmission Control Cable Bracket)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
91612-61030	Bolt (For Transmission Control Cable Bracket)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
91651-60640	Bolt, Rear Body Mounting	Brake Tube & Clamp ([09.1987 - ] (8709- ))
91651-B0640	Bolt, Rear Body Mounting	Brake Tube & Clamp ([09.1987 - ] (8709- ))
96940-32105	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
96940-32106	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
96940-32156	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
96940-32606	Hose, Flexible(For Brake Tube)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
96940-32607	Hose, Flexible(For Brake Tube)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
96950-32905	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
96950-32906	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
96960-39906	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([09.1987 - ] (8709- ))
96991-10080	CLIP	Brake Tube & Clamp ([09.1987 - ] (8709- ))
