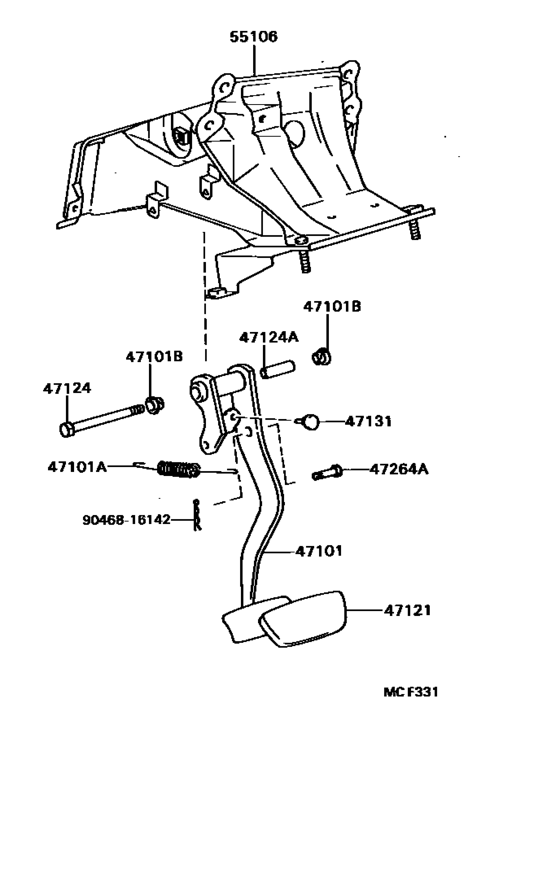

| 47101-40040 |
Pedal Sub-Assy, Brake |
Brake Pedal & Bracket ([09.1987 - ] (8709- )) |
| 47121-30050 |
Pad, Brake Pedal |
Brake Pedal & Bracket ([09.1987 - ] (8709- )) |
| 55106-40010 |
Support Sub-Assy, Brake Pedal |
Brake Pedal & Bracket ([09.1987 - ] (8709- )) |
| 55106-91403 |
Support Sub-Assy, Brake Pedal |
Brake Pedal & Bracket ([09.1987 - ] (8709- )) |
| 90101-10480 |
Shaft, Brake Pedal |
Brake Pedal & Bracket ([09.1987 - ] (8709- )) |
| 90249-10064 |
Pin(For Push Rod) |
Brake Pedal & Bracket ([09.1987 - ] (8709- )) |
| 90386-13192 |
Bush(For Over Center Plate) |
Brake Pedal & Bracket ([09.1987 - ] (8709- )) |
| 90387-10128 |
Collar(For Brake Pedal Shaft) |
Brake Pedal & Bracket ([09.1987 - ] (8709- )) |
| 90468-16142 |
Clip(For Push Rod Clevis Pin) |
Brake Pedal & Bracket ([09.1987 - ] (8709- )) |
| 90506-12484 |
Spring(For Brake Pedal Return) |
Brake Pedal & Bracket ([09.1987 - ] (8709- )) |
| 90541-06036 |
Cushion, No.1(For Clutch Pedal) |
Brake Pedal & Bracket ([09.1987 - ] (8709- )) |
| 91552-81090 |
Bolt, No.1(For Alternator) |
Brake Pedal & Bracket ([09.1987 - ] (8709- )) |
