VG45

Toyota CENTURY · 1990 · 7,453 parts · 231 categories

7,453 items

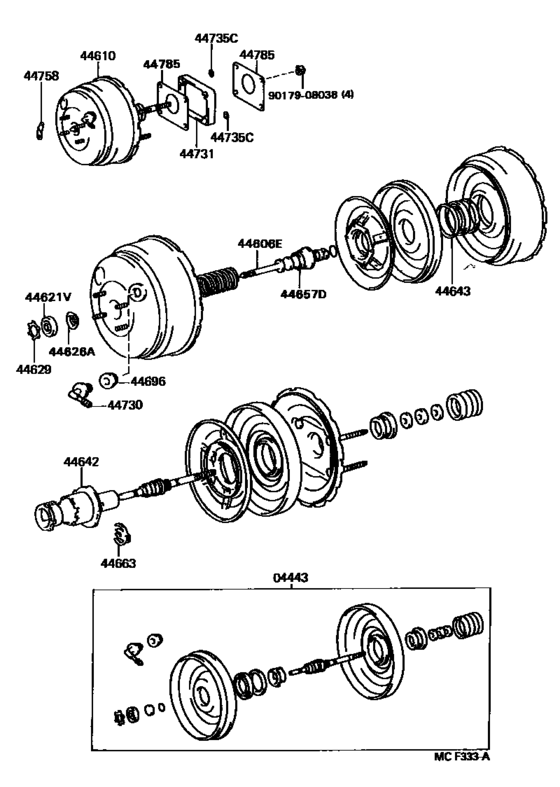

Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212)) 22

#	OEM	Part name
4443	04443-40060	Booster Kit, Brake
44606	44606-20800	Rod Sub-Assy, Brake Booster Piston
44610	44610-40090	Booster Assy, Brake
44610	44610-40091	Booster Assy, Brake
44621	44621-14030	Seal, Booster Body
44626	44626-60010	Retainer, Booster Seal
44629	44628-60010	Ring, Circular Internal
44642	44642-20800	Piston, Brake Booster
44643	44643-20800	Retainer, Diaphragm
44657	44657-30560	Case, Reaction Disc
44663	44635-20800	Key, Booster Valve Plunger
44696	90480-24439	Grommet, Check Valve
44696	90480-24517	Grommet, Check Valve
44696	90480-24015	Grommet, Check Valve
44730	44730-14050	Valve Assy, Vacuum Check(For Brake)
44730	44730-14060	Valve Assy, Vacuum Check(For Brake)
44730	44730-28010	Valve Assy, Vacuum Check(For Brake)
44731	44731-40010	Bracket, Brake Booster, Front
44735	44735-30010	Ring, Booster Bracket Stopper
44758	44758-30100	Bracket, Vacuum Check Valve
44785	44785-30020	Gasket, Brake Booster Bracket
9017908038	90179-08038	Nut

OEM	Part name	Category
04443-40060	Booster Kit, Brake	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
44606-20800	Rod Sub-Assy, Brake Booster Piston	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
44610-40090	Booster Assy, Brake	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
44610-40091	Booster Assy, Brake	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
44621-14030	Seal, Booster Body	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
44626-60010	Retainer, Booster Seal	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
44628-60010	Ring, Circular Internal	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
44635-20800	Key, Booster Valve Plunger	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
44642-20800	Piston, Brake Booster	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
44643-20800	Retainer, Diaphragm	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
44657-30560	Case, Reaction Disc	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
44730-14050	Valve Assy, Vacuum Check(For Brake)	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
44730-14060	Valve Assy, Vacuum Check(For Brake)	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
44730-28010	Valve Assy, Vacuum Check(For Brake)	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
44731-40010	Bracket, Brake Booster, Front	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
44735-30010	Ring, Booster Bracket Stopper	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
44758-30100	Bracket, Vacuum Check Valve	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
44785-30020	Gasket, Brake Booster Bracket	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
90179-08038	Nut	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
90480-24015	Grommet, Check Valve	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
90480-24439	Grommet, Check Valve	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
90480-24517	Grommet, Check Valve	Brake Booster & Vacuum Tube ([09.1987 - 12.1992] (8709-9212))
