Search › Model › VG40
VG40

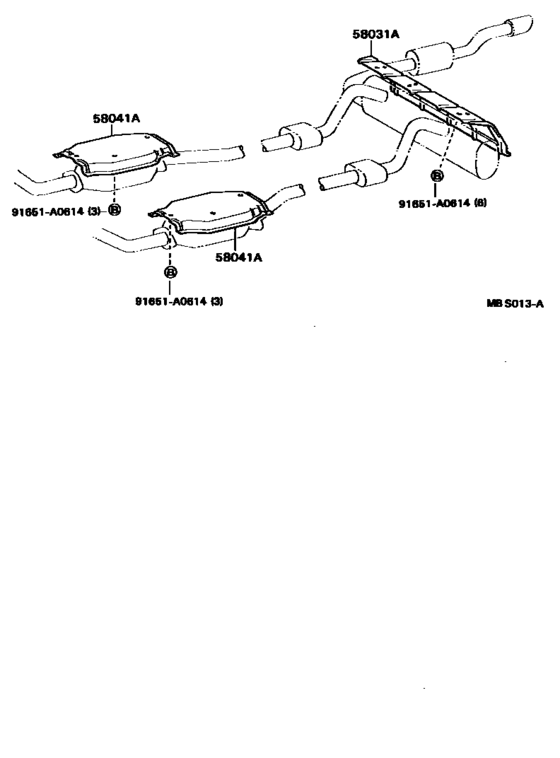

Floor Insulator ([09.1987 - ] (8709- )) 6
| # | OEM | Part name |
|---|---|---|
| 58031 | 58031-91401 | Insulator Sub-Assy, Main Muffler Heat |
| 58041 | 58041-40010 | Insulator Sub-Assy, Front Floor Heat, No.1 |
| 58041 | 58041-91401 | Insulator Sub-Assy, Front Floor Heat, No.1 |
| 58041 | 58042-40010 | Insulator Sub-Assy, Front Floor Heat, No.1 |
| 91651 | 91651-A0614 | BOLT WWASHER |
| 91651 | 91653-A0614 | BOLT WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 58031-91401 | Insulator Sub-Assy, Main Muffler Heat | Floor Insulator ([09.1987 - ] (8709- )) |
| 58041-40010 | Insulator Sub-Assy, Front Floor Heat, No.1 | Floor Insulator ([09.1987 - ] (8709- )) |
| 58041-91401 | Insulator Sub-Assy, Front Floor Heat, No.1 | Floor Insulator ([09.1987 - ] (8709- )) |
| 58042-40010 | Insulator Sub-Assy, Front Floor Heat, No.1 | Floor Insulator ([09.1987 - ] (8709- )) |
| 91651-A0614 | BOLT WWASHER | Floor Insulator ([09.1987 - ] (8709- )) |
| 91653-A0614 | BOLT WWASHER | Floor Insulator ([09.1987 - ] (8709- )) |
