Search › Model › VG35

VG35

Toyota CENTURY · 1978 · 4,465 parts · 161 categories

4,465 items

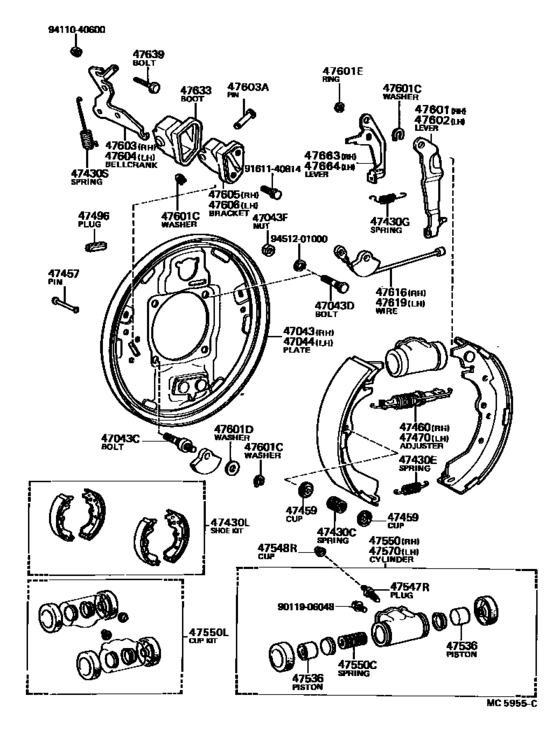

Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- )) 49

#	OEM	Part name
47043	47043-40020	Plate Sub-Assy, Brake Backing, Rear Rh
47043	90114-10009	Bolt(For Backing Plate To Rear Axle Housing Setting)
47043	90114-10002	Bolt, Serration (For Rear Axle Flange)
47043	90170-10191	Nut(For Rear Drive Shaft)
47044	47044-40020	Plate Sub-Assy, Brake Backing, Rear Lh
47430	90501-20756	Spring(For Front Brake Shoe Hold Down)
47430	90506-20005	Spring, Tension(For Rear Brake Shoe Return)
47430	90506-12015	Spring, Tension(For Rear Brake Shoe Return)
47430	04495-40020	Shoe Kit, Rear Brake
47430	04495-26121	Shoe Kit, Rear Brake
47430	90506-18023	Spring, Tension(For Parking Brake Shoe Strut)
47457	47447-30020	Pin, Shoe Hold Down Spring(For Front Brake)
47459	47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)
47460	47062-35010	Adjuster Assy, Shoe, Rh(For Rear Brake)
47460	47062-35020	Strut Set, Parking Brake Shoe, Rh
47470	47061-35010	Adjuster Assy, Shoe, Rh(For Rear Brake)
47470	47061-35020	Strut Set, Parking Brake Shoe, Rh
47496	47491-20011	Plug, Hole(For Rear Brake)
47536	47051-30030	Piston, Wheel Brake Cylinder(For Rear Brake)
47547	47547-20030	Plug, Bleeder(For Power Steering By-Pass Valve)
47548	31478-30010	Bleeder Plug Cap
47550	47550-39175	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-30100	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47509-35020	Spring Sub-Assy, Rear Wheel Cylinder Piston
47550	04906-30060	Cup Kit, Rear Wheel Cylinder
47601	47612-35020	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
47601	90213-06013	Washer, Type C(For Parking Brake Shoe)
47601	90213-07010	Washer, Type C(For Parking Brake Shoe)
47601	90206-10059	Washer, Wave(For Rear Brake)
47601	96160-00500	Ring, E(For Over Center Lever)
47602	47611-35020	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
47603	47624-40020	Bellcrank Sub-Assy, Parking Brake, Rh(For Rear Brake)
47603	90249-08068	Pin, W/hole(For Rear Brake)
47604	47625-40010	Bellcrank Sub-Assy, Parking Brake, Lh (For Rear Brake)
47605	47628-40010	Bracket Sub-Assy, Bell Crank, Rh (For Rear Brake)
47606	47629-40010	Bracket Sub-Assy, Bell Crank, Lh (For Rear Brake)
47616	47616-40010	Wire, Parking Brake, Rh
47633	47633-40010	Boot, Parking Brake Bellcrank
47633	47634-40010	Boot, Parking Brake Bellcrank
47639	47639-30020	Bolt, Bellcrank Stopper
47663	47644-35010	Lever, Automatic Adjust, Rh(For Rear Brake)
47663	47644-35020	Lever, Rear Brake Automatic Adjust, Rh
47664	47643-35010	Lever, Automatic Adjust, Rh(For Rear Brake)
47664	47643-35020	Lever, Rear Brake Automatic Adjust, Rh
9011906048	90119-06048	BOLT
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt
9411040600	94110-40600	Nut, Rock
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
04495-26121	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
04495-40020	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
04906-30060	Cup Kit, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
31478-30010	Bleeder Plug Cap	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47043-40020	Plate Sub-Assy, Brake Backing, Rear Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47044-40020	Plate Sub-Assy, Brake Backing, Rear Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47051-30030	Piston, Wheel Brake Cylinder(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47061-35010	Adjuster Assy, Shoe, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47061-35020	Strut Set, Parking Brake Shoe, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47062-35010	Adjuster Assy, Shoe, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47062-35020	Strut Set, Parking Brake Shoe, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47447-30020	Pin, Shoe Hold Down Spring(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47491-20011	Plug, Hole(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47509-35020	Spring Sub-Assy, Rear Wheel Cylinder Piston	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47547-20030	Plug, Bleeder(For Power Steering By-Pass Valve)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47550-30100	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47550-39175	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47611-35020	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47612-35020	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47616-40010	Wire, Parking Brake, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47624-40020	Bellcrank Sub-Assy, Parking Brake, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47625-40010	Bellcrank Sub-Assy, Parking Brake, Lh (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47628-40010	Bracket Sub-Assy, Bell Crank, Rh (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47629-40010	Bracket Sub-Assy, Bell Crank, Lh (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47633-40010	Boot, Parking Brake Bellcrank	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47634-40010	Boot, Parking Brake Bellcrank	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47639-30020	Bolt, Bellcrank Stopper	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47643-35010	Lever, Automatic Adjust, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47643-35020	Lever, Rear Brake Automatic Adjust, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47644-35010	Lever, Automatic Adjust, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
47644-35020	Lever, Rear Brake Automatic Adjust, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
90114-10002	Bolt, Serration (For Rear Axle Flange)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
90114-10009	Bolt(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
90119-06048	BOLT	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
90170-10191	Nut(For Rear Drive Shaft)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
90206-10059	Washer, Wave(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
90213-06013	Washer, Type C(For Parking Brake Shoe)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
90213-07010	Washer, Type C(For Parking Brake Shoe)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
90249-08068	Pin, W/hole(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
90501-20756	Spring(For Front Brake Shoe Hold Down)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
90506-12015	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
90506-18023	Spring, Tension(For Parking Brake Shoe Strut)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
90506-20005	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
91611-60814	Bolt	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
94110-40600	Nut, Rock	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
96160-00500	Ring, E(For Over Center Lever)	Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1978 - ] (7811- ))
