Search › Model › VG35

VG35

Toyota CENTURY · 1978 · 4,465 parts · 161 categories

4,465 items

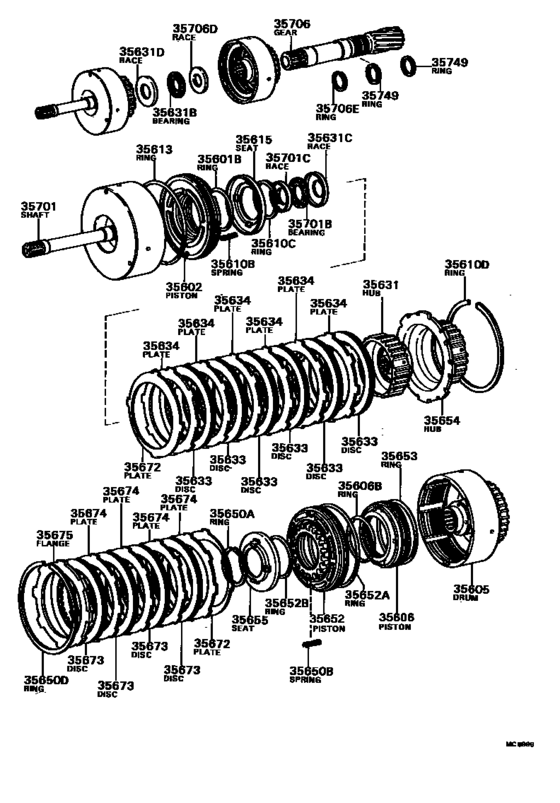

Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- )) 49

#	OEM	Part name
35601	90301-30113	Ring, O (For Front Clutch Drum)
35601	90301-57188	Ring, O (For Underdrive Clutch Piston)
35601	90301-56007	Ring, O (For Underdrive Clutch Piston)
35602	35602-30030	Piston Sub-Assy, Front Clutch
35602	35602-40010	Piston Sub-Assy, Front Clutch
35605	35605-30011	Drum Sub-Assy, Rear Clutch W/2Nd Sun Gear
35605	35651-40010	Drum Sub-Assy, Rear Clutch W/2Nd Sun Gear
35606	35606-40010	Piston Sub-Assy, Rear Clutch
35606	35606-40020	Piston Sub-Assy, Rear Clutch
35606	90301-57001	Ring (For Rear Clutch Piston Inner)
35610	90501-11004	Spring, Compression (For Front Clutch Piston Return)
35610	90520-52262	Ring, Shaft Snap (For Underdrive Return Spring)
35610	90521-99098	Ring, Shaft Snap (For Front Clutch Piston Return Spring)
35610	90521-99001	Ring, Hole Snap, No.2 (For Overdrive)
35610	90521-99099	Ring, Hole Snap(For Clutch Race Set)
35610	90521-99106	Ring, Hole Snap (For Front Multiple Disc Clutch)
35613	35613-30010	Ring, Clutch Piston Oil Seal, Outer
35613	90301-99192	Ring, O (For Overdrive Direct Clutch Piston)
35615	34613-30010	Seat, Overdrive Direct Clutch Return Spring
35631	35631-40010	Hub, Clutch(For Multiple Disc Clutch)
35631	35631-40020	Hub, Clutch(For Multiple Disc Clutch)
35631	90374-20007	Bearing, Thrust(For Intermediate Shaft Front) - THRUST(FOR INTERMEDIATE SHAFT REAR)
35631	90374-28014	Bearing, Thrust Needle Roller(For Overdrive)
35631	35789-40030	Race, Thrust Bearing(For Front Clutch Hub Front)
35631	35789-22020	Race, Thrust Bearing (For Rear Planetary Ring Gear Rear)
35633	35633-40010	Disc, Clutch (For Front Clutch)
35633	35677-40010	Disc, Clutch (For Brake)
35634	35634-22040	Plate, Clutch (For Overdrive)
35634	35634-30020	Plate, Front Clutch
35634	35634-30040	Plate, Front Clutch
35634	35634-30050	Plate, Front Clutch
35634	35634-30070	Plate, Clutch (For Overdrive)
35650	96152-00320	Ring, Shaft Snap (For Rear Clutch Piston Return Spring)
35650	90501-55407	Spring, Compression (For Rear Clutch Piston Return)
35653	35653-30010	Ring, Clutch Piston Oil Seal, Outer
35653	90301-88001	Ring, Rear Clutch Oil Seal, Outer
35654	35654-40010	Hub, Rear Clutch
35655	35655-30010	Seat, Rear Clutch Piston Return Spring
35672	35672-40010	Plate, Clutch Cushion
35674	35674-30010	Plate, Rear Clutch
35675	35675-22010	Flange, Overdrive Clutch
35675	35675-22140	Flange, Overdrive Clutch
35675	35675-30011	Flange, Rear Clutch
35701	35701-30012	Shaft Sub-Assy, Input
35701	35701-40010	Shaft Sub-Assy, Input
35706	35706-30010	Gear Sub-Assy, Planetary Sun
35706	35706-40010	Gear Sub-Assy, Planetary Sun
35706	90520-34001	Ring, Shaft Snap (For Sun Gear Front)
35749	35749-22010	Ring, Sun Gear Shaft Oil Seal

OEM	Part name	Category
34613-30010	Seat, Overdrive Direct Clutch Return Spring	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35602-30030	Piston Sub-Assy, Front Clutch	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35602-40010	Piston Sub-Assy, Front Clutch	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35605-30011	Drum Sub-Assy, Rear Clutch W/2Nd Sun Gear	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35606-40010	Piston Sub-Assy, Rear Clutch	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35606-40020	Piston Sub-Assy, Rear Clutch	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35613-30010	Ring, Clutch Piston Oil Seal, Outer	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35631-40010	Hub, Clutch(For Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35631-40020	Hub, Clutch(For Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35633-40010	Disc, Clutch (For Front Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35634-22040	Plate, Clutch (For Overdrive)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35634-30020	Plate, Front Clutch	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35634-30040	Plate, Front Clutch	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35634-30050	Plate, Front Clutch	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35634-30070	Plate, Clutch (For Overdrive)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35651-40010	Drum Sub-Assy, Rear Clutch W/2Nd Sun Gear	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35653-30010	Ring, Clutch Piston Oil Seal, Outer	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35654-40010	Hub, Rear Clutch	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35655-30010	Seat, Rear Clutch Piston Return Spring	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35672-40010	Plate, Clutch Cushion	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35674-30010	Plate, Rear Clutch	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35675-22010	Flange, Overdrive Clutch	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35675-22140	Flange, Overdrive Clutch	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35675-30011	Flange, Rear Clutch	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35677-40010	Disc, Clutch (For Brake)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35701-30012	Shaft Sub-Assy, Input	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35701-40010	Shaft Sub-Assy, Input	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35706-30010	Gear Sub-Assy, Planetary Sun	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35706-40010	Gear Sub-Assy, Planetary Sun	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35749-22010	Ring, Sun Gear Shaft Oil Seal	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35789-22020	Race, Thrust Bearing (For Rear Planetary Ring Gear Rear)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
35789-40030	Race, Thrust Bearing(For Front Clutch Hub Front)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
90301-30113	Ring, O (For Front Clutch Drum)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
90301-56007	Ring, O (For Underdrive Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
90301-57001	Ring (For Rear Clutch Piston Inner)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
90301-57188	Ring, O (For Underdrive Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
90301-88001	Ring, Rear Clutch Oil Seal, Outer	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
90301-99192	Ring, O (For Overdrive Direct Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
90374-20007	Bearing, Thrust(For Intermediate Shaft Front) - THRUST(FOR INTERMEDIATE SHAFT REAR)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
90374-28014	Bearing, Thrust Needle Roller(For Overdrive)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
90501-11004	Spring, Compression (For Front Clutch Piston Return)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
90501-55407	Spring, Compression (For Rear Clutch Piston Return)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
90520-34001	Ring, Shaft Snap (For Sun Gear Front)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
90520-52262	Ring, Shaft Snap (For Underdrive Return Spring)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
90521-99001	Ring, Hole Snap, No.2 (For Overdrive)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
90521-99098	Ring, Shaft Snap (For Front Clutch Piston Return Spring)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
90521-99099	Ring, Hole Snap(For Clutch Race Set)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
90521-99106	Ring, Hole Snap (For Front Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
96152-00320	Ring, Shaft Snap (For Rear Clutch Piston Return Spring)	Brake Band & Multiple Disc Clutch (Atm) ([05.1980 - ] (8005- ))
