VG30

Toyota CENTURY · 1977 · 4,065 parts · 157 categories
VG30 ×

← Back to categories

4,065 items

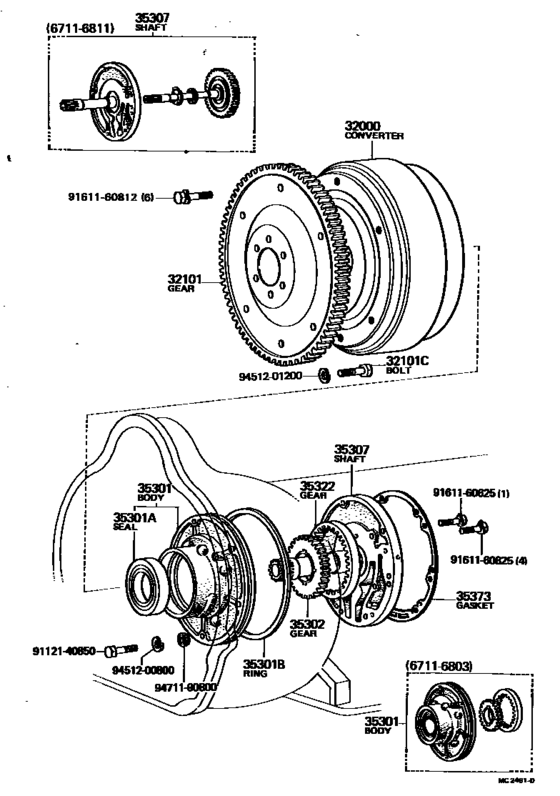

Torque Converter, Front Oil Pump & Chain (Atm) ([11.1967 - 05.1980] (6711-8005)ATM) 21
#OEMPart name
32000 32000-40021 Converter Assy, Torque
32101 32101-40022 Gear Sub-Assy, Drive Plate & Ring
32101 91161-71222 Bolt, Hexagon(For Drive Plate Setting)
35301 35301-30012 Body Sub-Assy, Front Oil Pump
35301 90311-45084 Seal, Oil (For Front Oil Pump)
35301 90301-99108 Ring, O (For Front Oil Pump Body)
35302 35302-30011 Gear Sub-Assy, Front Oil Pump Drive
35307 35307-30014 Shaft Sub-Assy, Stator
35322 35322-30010 Gear, Front Oil Pump Driven
35373 35373-30010 Gasket, Stator Shaft
9112140850 91121-40850 Bolt (For Floor Shift Control Lever)
9112140850 91121-50850 Bolt (For Floor Shift Control Lever)
9161160625 91611-60625 Bolt, W/washer (For Parking Cove & Case)
9161160625 91611-B0625 Bolt (For Automatic Transmission Oil Pan)
9161160812 91611-60812 Bolt(For Drive Plate & Torque Converter Setting)
9161160812 91611-B0812 Bolt
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201200 94512-01200 Washer
9471190800 94711-90800 New Genuine Part
