Search › Model › VG30

VG30

Toyota CENTURY · 1977 · 4,065 parts · 157 categories

4,065 items

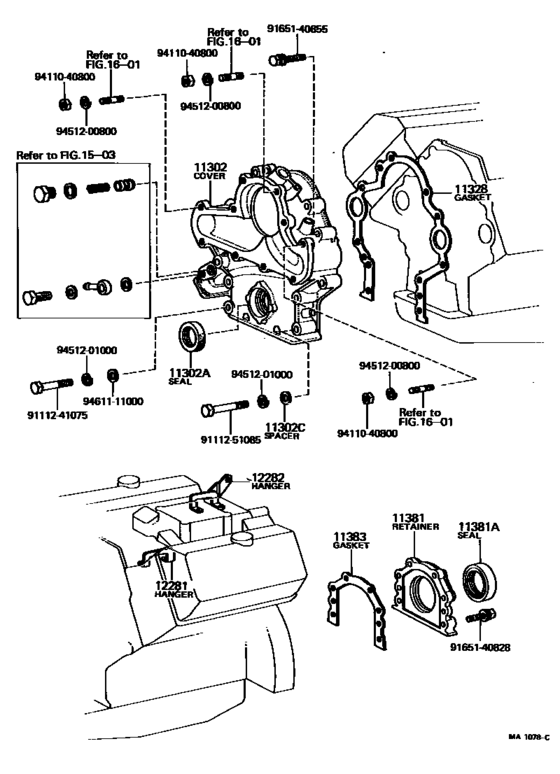

Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811)) 20

#	OEM	Part name
11302	11321-52010	Cover Sub-Assy, Timing Chain Or Belt
11302	90311-45047	Seal, Oil(For Timing Chain Or Belt Cover)
11302	90311-45002	Seal, Oil(For Timing Chain Or Belt Cover)
11302	90560-10146	Spacer(For Timing Gear Cover)
11328	11328-51010	Gasket, Timing Gear Or Chain Cover
11328	11328-51012	Gasket, Timing Gear Or Chain Cover
11381	11381-51010	Retainer, Engine Rear Oil Seal
11381	90311-85046	Seal, Engine Rear Oil
11381	90311-85009	Seal, Engine Rear Oil
11383	11383-51010	Gasket, Engine Rear Oil Seal Retainer
12281	12281-51010	Hanger, Engine, No.1
9111241075	91112-41075	New Genuine Part
9111251085	91112-51085	Bolt, Hexagon(For Idler Arm Support Setting)
9165140828	91651-40828	New Genuine Part
9165140855	91651-40855	New Genuine Part
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9461111000	94611-11000	New Genuine Part

OEM	Part name	Category
11321-52010	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811))
11328-51010	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811))
11328-51012	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811))
11381-51010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811))
11383-51010	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811))
12281-51010	Hanger, Engine, No.1	Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811))
90311-45002	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811))
90311-45047	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811))
90311-85009	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811))
90311-85046	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811))
90560-10146	Spacer(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811))
91112-41075	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811))
91112-51085	Bolt, Hexagon(For Idler Arm Support Setting)	Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811))
91651-40828	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811))
91651-40855	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811))
94110-40800	Nut(For Steering Damper)	Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811))
94130-00802	Nut, No.1 (For Center Support Bearing)	Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811))
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811))
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811))
94611-11000	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.1973 - 11.1978] (7303-7811))
