Search › Model › VG30

VG30

Toyota CENTURY · 1977 · 4,065 parts · 157 categories

4,065 items

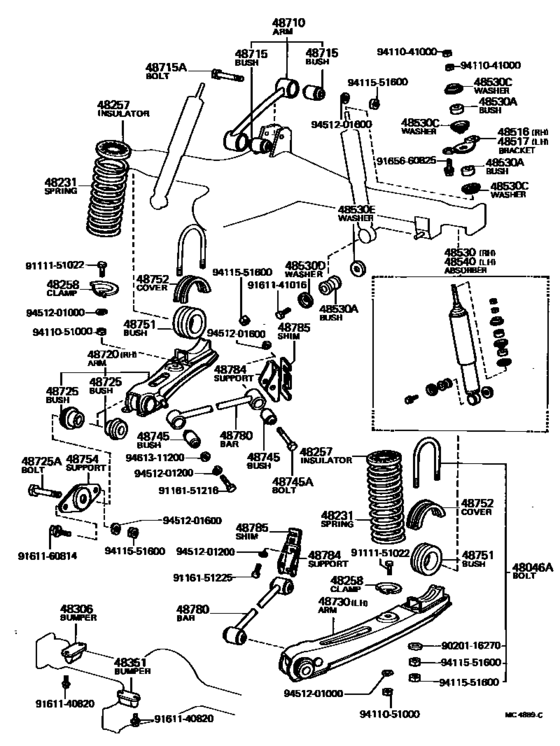

Rear Spring & Shock Absorber ([01.1977 - ] (7701- )) 52

#	OEM	Part name
48046	90118-16120	Bolt, U(For Rear Spring)
48046	90117-16112	New Genuine Part
48046	90201-16270	New Genuine Part
48046	94115-51600	Nut, Hexagon(For Sector Shaft To Pitman Arm Setting)
48231	48231-40080	Spring, Coil, Rear
48257	48257-40010	Insulator, Rear Coil Spring
48258	48258-40010	Clamp, Rear Coil Spring
48306	48306-40020	Bumper Sub-Assy, Rear Spring
48351	48351-40010	Bumper, Differential Carrier
48516	48516-40010	Bracket, Rear Shock Absorber, Upper Rh
48530	48531-49035	Absorber Assy, Shock, Rear Rh
48530	90385-16060	Bush(For Rear Shock Absorber)
48530	90385-16004	Cushion, Front Shock Absorber
48530	90948-01003	Rubber Cushion
48530	90948-02002	Retainer, Steering Damper Cushion
48530	90948-02007	Retainer, Steering Damper Cushion
48530	90948-03007	Washer, Front Shock Absorber Cushion, No.1
48530	90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)
48710	48710-40031	Arm Assy, Upper Control
48715	48702-40031	Bush, Upper Control Arm
48715	48702-40032	Bush, Upper Control Arm
48715	90101-16442	Bolt, Hexagon(For Upper Control Arm)
48720	48720-40011	Arm Assy, Lower Control, Rh
48725	48704-40010	Bush, Lower Control Arm
48725	90101-16305	Bolt(For Lower Control Arm)
48730	48730-40011	Arm Assy, Lower Control, Lh
48745	48706-30010	Bush, Lateral Control Rod
48745	90101-16306	Bolt, Hexagon(For Lateral Control Rod)
48751	48751-40011	Bush, Rear Axle Mounting
48751	48751-40012	Bush, Rear Axle Mounting
48752	48752-40010	Cover, Rear Axle Bush
48754	48754-40010	Support, Lower Arm Pin
48780	48780-40010	Bar Assy, Strut
48784	48784-40010	Support, Strut Bar Pin
48785	48785-40010	Shim, Strut Bar Adjust
48785	48786-40010	Shim, Strut Bar Adjust
9111151022	91111-51022	New Genuine Part
9116151216	91161-51216	New Genuine Part
9116151225	91161-51225	New Genuine Part
9161140820	91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)
9161141016	91611-41016	Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9161141016	91612-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160814	91611-60814	Bolt
9165660825	91656-60825	Bolt, Hexagon(For Steering Column Bracket)
9165660825	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
9411041000	94110-41000	Nut(For Steering Damper)
9411051000	94110-51000	Nut(For Steering Center Arm)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201200	94512-01200	Washer
9451201600	94512-01600	Washer(For Center Arm Shaft)
9451201600	90204-16001	Washer(For Center Arm Shaft)
9461311200	94613-11200	WASHER

OEM	Part name	Category
48231-40080	Spring, Coil, Rear	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48257-40010	Insulator, Rear Coil Spring	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48258-40010	Clamp, Rear Coil Spring	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48306-40020	Bumper Sub-Assy, Rear Spring	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48351-40010	Bumper, Differential Carrier	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48516-40010	Bracket, Rear Shock Absorber, Upper Rh	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48531-49035	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48702-40031	Bush, Upper Control Arm	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48702-40032	Bush, Upper Control Arm	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48704-40010	Bush, Lower Control Arm	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48706-30010	Bush, Lateral Control Rod	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48710-40031	Arm Assy, Upper Control	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48720-40011	Arm Assy, Lower Control, Rh	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48730-40011	Arm Assy, Lower Control, Lh	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48751-40011	Bush, Rear Axle Mounting	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48751-40012	Bush, Rear Axle Mounting	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48752-40010	Cover, Rear Axle Bush	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48754-40010	Support, Lower Arm Pin	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48780-40010	Bar Assy, Strut	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48784-40010	Support, Strut Bar Pin	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48785-40010	Shim, Strut Bar Adjust	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
48786-40010	Shim, Strut Bar Adjust	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
90101-16305	Bolt(For Lower Control Arm)	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
90101-16306	Bolt, Hexagon(For Lateral Control Rod)	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
90101-16442	Bolt, Hexagon(For Upper Control Arm)	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
90117-16112	New Genuine Part	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
90118-16120	Bolt, U(For Rear Spring)	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
90201-16270	New Genuine Part	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
90204-16001	Washer(For Center Arm Shaft)	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
90385-16004	Cushion, Front Shock Absorber	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
90385-16060	Bush(For Rear Shock Absorber)	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
90948-01003	Rubber Cushion	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
90948-02002	Retainer, Steering Damper Cushion	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
90948-02007	Retainer, Steering Damper Cushion	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
90948-03007	Washer, Front Shock Absorber Cushion, No.1	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
91111-51022	New Genuine Part	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
91161-51216	New Genuine Part	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
91161-51225	New Genuine Part	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
91611-41016	Bolt(for Dust Cover To Steering Knuckle Arm Setting)	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
91611-60814	Bolt	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
91612-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
91656-60825	Bolt, Hexagon(For Steering Column Bracket)	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
94110-41000	Nut(For Steering Damper)	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
94110-51000	Nut(For Steering Center Arm)	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
94115-51600	Nut, Hexagon(For Sector Shaft To Pitman Arm Setting)	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
94512-01200	Washer	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
94512-01600	Washer(For Center Arm Shaft)	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
94613-11200	WASHER	Rear Spring & Shock Absorber ([01.1977 - ] (7701- ))
