VG30

Toyota CENTURY · 1977 · 4,065 parts · 157 categories

4,065 items

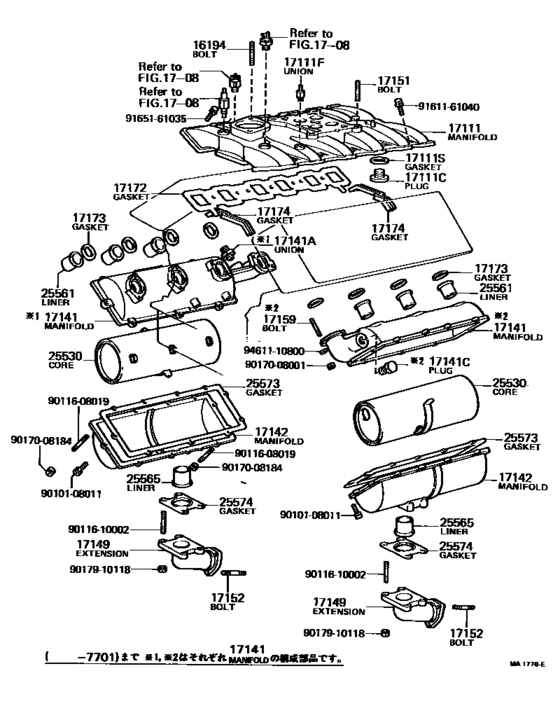

Manifold ([05.1975 - 11.1978] (7505-7811)) 35

#	OEM	Part name
16194	92132-40825	Bolt, Stud(For Water Outlet Setting)
17111	17111-52031	Manifold, Intake
17111	90341-32028	Plug, No.3 - W/HEAD TAPER SCREW, NO.1
17111	90430-33133	Gasket(For Cylinder Head Screw Plug)
17141	17141-52031	Manifold, Exhaust
17141	17141-52032	Manifold, Exhaust
17141	90101-08026	New Genuine Part
17141	90404-22003	Union(For Exhaust Gas Recirculation Outlet)
17141	90341-20086	Plug, W/head Straight Screw
17142	17142-52020	Case, Exhaust Manifold, No.2
17149	17149-52010	Extension, Exhaust Manifold
17151	90116-08113	Bolt, Stud(For Oil Filter) - STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
17152	90116-10016	Bolt, Stud(For Manifold To Exhaust Pipe)
17152	90116-10017	Bolt, Stud(For Manifold To Exhaust Pipe)
17152	90116-10042	Bolt, Stud(For Manifold To Exhaust Pipe)
17159	90116-08004	Bolt, Stud(For Manifold To Cylinder Head)
17172	17172-51010	Gasket, Manifold To Cylinder Head
17172	17172-51011	Gasket, Manifold To Cylinder Head
17173	17173-52011	Gasket, Exhaust Manifold To Head
17174	17174-51010	Gasket, Intake Manifold To Block
25530	25530-52010	Core Assy, Manifold
25561	25561-52010	Liner, Exhaust Port Inlet
25565	25565-52010	Liner, Exhaust Port Outlet
25573	25573-52010	Gasket, Manifold Case, No.1
25574	25574-52010	Gasket, Manifold Case, No.2
9010108011	90101-08011	BOLT
9011608019	90116-08019	New Genuine Part
9011610002	90116-10002	New Genuine Part
9017008001	90170-08001	New Genuine Part
9017008184	90170-08184	New Genuine Part
9017910118	90179-10118	Nut, Exhaust Pipe Set Stud Bolt
9161161040	91611-61040	Bolt(For Transaxle Case & Engine Setting)
9161161040	91612-61040	Bolt(For Transmission Case & Engine Setting)
9165161035	91651-61035	BOLT
9461110800	94611-10800	Washer, Plate (For Transmission Control Cable)

OEM	Part name	Category
17111-52031	Manifold, Intake	Manifold ([05.1975 - 11.1978] (7505-7811))
17141-52031	Manifold, Exhaust	Manifold ([05.1975 - 11.1978] (7505-7811))
17141-52032	Manifold, Exhaust	Manifold ([05.1975 - 11.1978] (7505-7811))
17142-52020	Case, Exhaust Manifold, No.2	Manifold ([05.1975 - 11.1978] (7505-7811))
17149-52010	Extension, Exhaust Manifold	Manifold ([05.1975 - 11.1978] (7505-7811))
17172-51010	Gasket, Manifold To Cylinder Head	Manifold ([05.1975 - 11.1978] (7505-7811))
17172-51011	Gasket, Manifold To Cylinder Head	Manifold ([05.1975 - 11.1978] (7505-7811))
17173-52011	Gasket, Exhaust Manifold To Head	Manifold ([05.1975 - 11.1978] (7505-7811))
17174-51010	Gasket, Intake Manifold To Block	Manifold ([05.1975 - 11.1978] (7505-7811))
25530-52010	Core Assy, Manifold	Manifold ([05.1975 - 11.1978] (7505-7811))
25561-52010	Liner, Exhaust Port Inlet	Manifold ([05.1975 - 11.1978] (7505-7811))
25565-52010	Liner, Exhaust Port Outlet	Manifold ([05.1975 - 11.1978] (7505-7811))
25573-52010	Gasket, Manifold Case, No.1	Manifold ([05.1975 - 11.1978] (7505-7811))
25574-52010	Gasket, Manifold Case, No.2	Manifold ([05.1975 - 11.1978] (7505-7811))
90101-08011	BOLT	Manifold ([05.1975 - 11.1978] (7505-7811))
90101-08026	New Genuine Part	Manifold ([05.1975 - 11.1978] (7505-7811))
90116-08004	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([05.1975 - 11.1978] (7505-7811))
90116-08019	New Genuine Part	Manifold ([05.1975 - 11.1978] (7505-7811))
90116-08113	Bolt, Stud(For Oil Filter) - STUD(FOR HEAD TO CAMSHAFT BEARING CAP)	Manifold ([05.1975 - 11.1978] (7505-7811))
90116-10002	New Genuine Part	Manifold ([05.1975 - 11.1978] (7505-7811))
90116-10016	Bolt, Stud(For Manifold To Exhaust Pipe)	Manifold ([05.1975 - 11.1978] (7505-7811))
90116-10017	Bolt, Stud(For Manifold To Exhaust Pipe)	Manifold ([05.1975 - 11.1978] (7505-7811))
90116-10042	Bolt, Stud(For Manifold To Exhaust Pipe)	Manifold ([05.1975 - 11.1978] (7505-7811))
90170-08001	New Genuine Part	Manifold ([05.1975 - 11.1978] (7505-7811))
90170-08184	New Genuine Part	Manifold ([05.1975 - 11.1978] (7505-7811))
90179-10118	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([05.1975 - 11.1978] (7505-7811))
90341-20086	Plug, W/head Straight Screw	Manifold ([05.1975 - 11.1978] (7505-7811))
90341-32028	Plug, No.3 - W/HEAD TAPER SCREW, NO.1	Manifold ([05.1975 - 11.1978] (7505-7811))
90404-22003	Union(For Exhaust Gas Recirculation Outlet)	Manifold ([05.1975 - 11.1978] (7505-7811))
90430-33133	Gasket(For Cylinder Head Screw Plug)	Manifold ([05.1975 - 11.1978] (7505-7811))
91611-61040	Bolt(For Transaxle Case & Engine Setting)	Manifold ([05.1975 - 11.1978] (7505-7811))
91612-61040	Bolt(For Transmission Case & Engine Setting)	Manifold ([05.1975 - 11.1978] (7505-7811))
91651-61035	BOLT	Manifold ([05.1975 - 11.1978] (7505-7811))
92132-40825	Bolt, Stud(For Water Outlet Setting)	Manifold ([05.1975 - 11.1978] (7505-7811))
94611-10800	Washer, Plate (For Transmission Control Cable)	Manifold ([05.1975 - 11.1978] (7505-7811))
