VG30

Toyota CENTURY · 1977 · 4,065 parts · 157 categories
VG30 ×

← Back to categories

4,065 items

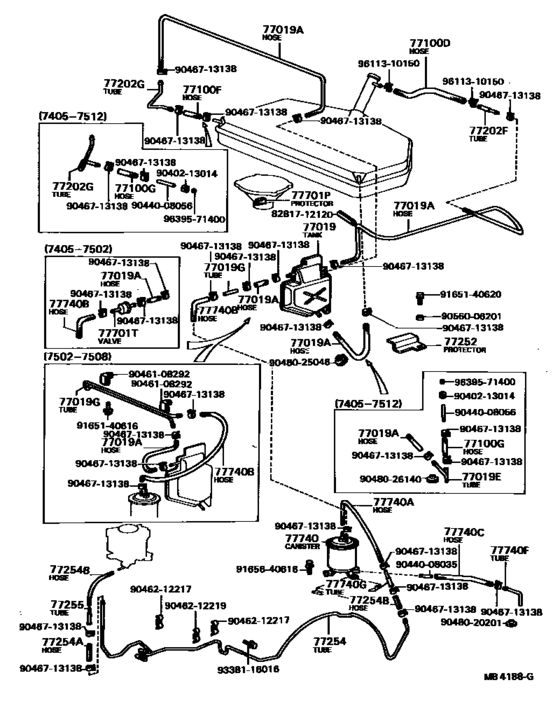

Fuel Tank & Tube ([05.1974 - 11.1978] (7405-7811)) 51
#OEMPart name
77019 77219-91402 Tank Sub-Assy, Fuel Expansion
77019 90445-14028 Hose, Fuel, No.1(For Fuel Expansion Tank)
77019 95331-08007 Hose, Fuel, No.1(For Fuel Expansion Tank)
77019 95333-08010 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77019 95331-08170 Hose, Fuel, No.1(For Fuel Expansion Tank)
77019 95331-08180 Hose, Fuel, No.1(For Fuel Expansion Tank)
77019 77275-91403 Tube, Fuel, No.3(For Fuel Expansion Tank)
77100 90445-18012 Hose, Fuel, No.1(For Fuel Tank) - FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77100 95331-08012 Hose, Fuel, No.3(For Fuel Tank) - FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77100 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77202 77266-91401 Tube, Fuel, No.1 (For Breather Tube)
77202 77254-91401 Tube, Fuel, No.2 (For Breather Tube)
77252 64076-91401 Protector, Fuel Tube
77254 77253-91404 Tube, Fuel Emission, No.1
77254 95331-08006 Hose, Fuel, No.1(For Fuel Expansion Tank)
77254 90445-07761 Hose, Fuel, No.2 (For Emission Tube, No.1)
77254 95332-08006 Hose, Fuel, No.2 (For Emission Tube, No.1) - FUEL, NO.3(FOR CHARCOAL CANISTER)
77255 90406-08014 Tube, Fuel Emission, No.2
77740 77740-40031 Canister Assy, Charcoal
77740 77740-40041 Canister Assy, Charcoal
77740 77740-40040 Canister Assy, Charcoal
77740 90445-07267 Hose, Fuel, No.1(For Charcoal Canister)
77740 90999-92003 Hose, Breather (For Transfer Case)
77740 95331-06010 Hose, Fuel, No.2 (For Main Tube, No.1) - FUEL, NO.1 (FOR MAIN TUBE, NO.2)
77740 95333-06010 Hose, Fuel
77740 95331-08026 Hose Or Tube(For Fuel Evaporative Separator) - FUEL, NO.2(FOR CHARCOAL CANISTER)
77740 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77740 77267-91403 Tube, Fuel, No.1(For Charcoal Canister)
8281712120 82817-12120 Trim, Jack House Opening, No.1
8281712120 82817-12130 Protector, Wiring Harness
9040213014 90402-13014 New Genuine Part
9044008035 90440-08035 New Genuine Part
9044008056 90440-08056 Tube, Fuel Main, No.2
9046108292 90461-08292 Clamp, Automatic Transmission Oil Cooler Tube
9046212217 90462-12217 New Genuine Part
9046212219 90462-12219 New Genuine Part
9046713138 90467-13138 Clip(For Fuel Hose)
9046713138 96132-51300 Clip(For Ventilation Hose No.2)
9048020201 90480-20201 New Genuine Part
9048025046 90480-25046 Wire, Drain Hose(For Cooler)
9048026140 90480-26140 New Genuine Part
9056006201 90560-06201 Spacer(For Parking Brake Handle)
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165140620 91651-40620 BOLT
9165640616 91656-40616 Bolt
9165640616 91651-60614 Bolt
9338116016 93381-16016 SCREWWWASHER
9611310150 96113-10150 Clip(For Fuel Hose)
9639571400 96395-71400 Olive(For Fuel Pipe)
