Search › Model › VG20

VG20

Toyota CENTURY · 1967 · 5,594 parts · 168 categories

5,594 items

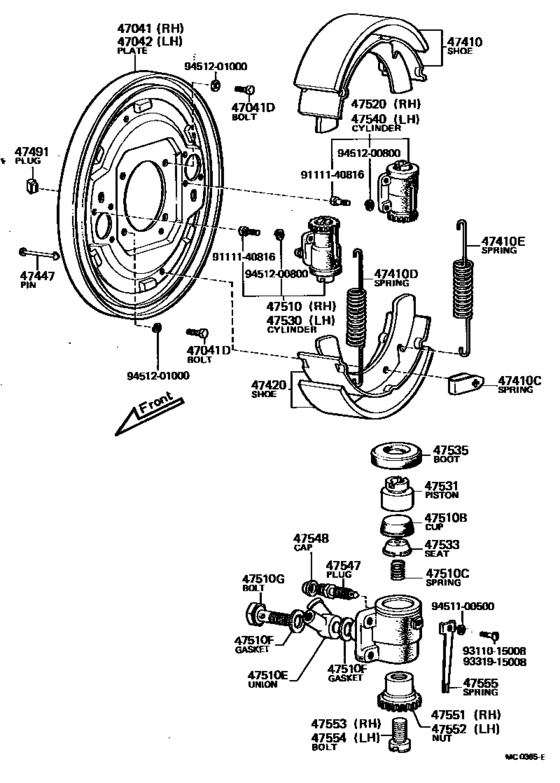

Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302)) 50

#	OEM	Part name
47041	47041-40010	Plate Sub-Assy, Brake Backing, Front Rh
47041	91111-71016	Bolt(For Backing Plate To Steering Knuckle Setting)
47041	91111-71020	Bolt(For Backing Plate To Steering Knuckle Setting)
47042	47042-40010	Plate Sub-Assy, Brake Backing, Front Lh
47410	47410-40010	Shoe Assy, Front Brake(For Front Or Upper Side)
47410	47410-40011	Shoe Assy, Front Brake(For Front Or Upper Side)
47410	47446-30010	Spring(For Front Brake Shoe Hold Down)
47410	90506-26154	Spring, Tension(For Front Brake Shoe Return)
47447	47447-40010	Pin, Shoe Hold Down Spring(For Front Brake)
47447	47447-30020	Pin, Shoe Hold Down Spring(For Front Brake)
47491	47491-30020	Plug, Hole(For Front Brake)
47510	47510-49015	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510	47331-40012	Tube, Wheel Cylinder, Front Rh
47510	47510-49017	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510	90947-01071	Cup, Cylinder(For Front Wheel Brake Cylinder)
47510	90501-08356	Spring, Compression(For Front Wheel Brake Cylinder)
47510	04499-40010	Seat, Wheel Cylinder Piston Spring(For Rear Brake)
47510	90405-10006	Union(For Front Wheel Brake Cylinder)
47510	90405-10096	Union(For Front Wheel Brake Cylinder)
47510	90405-10097	Union(For Front Wheel Brake Cylinder)
47510	90405-10107	Union(For Front Wheel Brake Cylinder)
47510	90405-10108	Union(For Front Wheel Brake Cylinder)
47510	90430-11100	Gasket(For Clutch Master Cylinder Union)
47510	90401-11017	Bolt, Union(For Front Wheel Brake Cylinder)
47510	90401-11039	Bolt, Union(For Front Wheel Brake Cylinder)
47520	47520-49015	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)
47520	47520-40011	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)
47530	47530-49015	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47530	47530-49017	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47531	47051-40010	Piston, Wheel Brake Cylinder(For Front Brake)
47533	47533-40010	Seat, Wheel Cylinder Piston Spring(For Front Brake)
47535	47535-40010	Boot, Wheel Cylinder(For Front Brake)
47540	47540-49015	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)
47540	47540-40011	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)
47547	47547-40020	Plug, Bleeder(For Hydraulic Cylinder Body)
47548	31478-30010	Bleeder Plug Cap
47548	47548-20010	Cap, Bleeder Plug(For Release Cylinder)
47551	47551-40010	Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47552	47552-40010	Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)
47553	47553-30010	Bolt, Front Wheel Cylinder Adjusting, Rh(For Front Brake)
47554	47554-30010	Bolt, Front Wheel Cylinder Adjusting, Lh(For Front Brake)
47555	47555-30010	Spring, Adjuster Lock(For Front Brake)
9111140816	91111-40816	New Genuine Part
9111140816	91111-50816	Bolt
9311015008	93110-15008	New Genuine Part
9311015008	93210-15008	New Genuine Part
9331915008	93319-15008	SCREW
9451100500	94511-00500	Washer, Cover Set, No.2
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
04499-40010	Seat, Wheel Cylinder Piston Spring(For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
31478-30010	Bleeder Plug Cap	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47041-40010	Plate Sub-Assy, Brake Backing, Front Rh	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47042-40010	Plate Sub-Assy, Brake Backing, Front Lh	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47051-40010	Piston, Wheel Brake Cylinder(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47331-40012	Tube, Wheel Cylinder, Front Rh	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47410-40010	Shoe Assy, Front Brake(For Front Or Upper Side)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47410-40011	Shoe Assy, Front Brake(For Front Or Upper Side)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47446-30010	Spring(For Front Brake Shoe Hold Down)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47447-30020	Pin, Shoe Hold Down Spring(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47447-40010	Pin, Shoe Hold Down Spring(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47491-30020	Plug, Hole(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47510-49015	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47510-49017	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47520-40011	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47520-49015	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47530-49015	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47530-49017	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47533-40010	Seat, Wheel Cylinder Piston Spring(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47535-40010	Boot, Wheel Cylinder(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47540-40011	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47540-49015	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47547-40020	Plug, Bleeder(For Hydraulic Cylinder Body)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47548-20010	Cap, Bleeder Plug(For Release Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47551-40010	Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47552-40010	Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47553-30010	Bolt, Front Wheel Cylinder Adjusting, Rh(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47554-30010	Bolt, Front Wheel Cylinder Adjusting, Lh(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
47555-30010	Spring, Adjuster Lock(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
90401-11017	Bolt, Union(For Front Wheel Brake Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
90401-11039	Bolt, Union(For Front Wheel Brake Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
90405-10006	Union(For Front Wheel Brake Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
90405-10096	Union(For Front Wheel Brake Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
90405-10097	Union(For Front Wheel Brake Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
90405-10107	Union(For Front Wheel Brake Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
90405-10108	Union(For Front Wheel Brake Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
90430-11100	Gasket(For Clutch Master Cylinder Union)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
90501-08356	Spring, Compression(For Front Wheel Brake Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
90506-26154	Spring, Tension(For Front Brake Shoe Return)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
90947-01071	Cup, Cylinder(For Front Wheel Brake Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
91111-40816	New Genuine Part	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
91111-50816	Bolt	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
91111-71016	Bolt(For Backing Plate To Steering Knuckle Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
91111-71020	Bolt(For Backing Plate To Steering Knuckle Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
93110-15008	New Genuine Part	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
93210-15008	New Genuine Part	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
93319-15008	SCREW	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
94511-00500	Washer, Cover Set, No.2	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([11.1967 - 02.1973] (6711-7302))
