Search › Model › VG20

VG20

Toyota CENTURY · 1967 · 5,594 parts · 168 categories

5,594 items

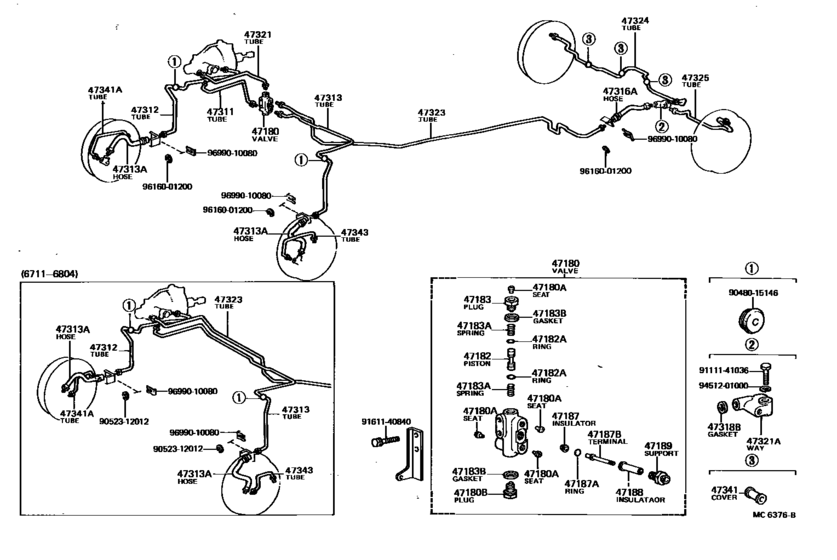

Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302)) 51

#	OEM	Part name
47180	47180-40010	Valve,assy, Brrke Pressure Differential
47180	90410-03015	Seat, Union(For Clutch Master Cylinder) - UNION(FOR CLUTCH RELEASE CYLINDER)
47180	90410-03024	Seat, Union(For Brake Differential Valve)
47180	90341-16040	Plug, Screw(For Brake Pressure Differential Valve)
47180	90341-16047	Plug, Screw(For Brake Pressure Differential Valve)
47182	47182-40010	Piston, Warning Switch
47182	90301-06129	Ring, O(For Warning Switch Piston)
47183	47183-40010	Plug, Warning Switch Body
47183	90501-12424	Spring, Compression(For Warning Switch Body)
47183	90430-16168	Gasket(For Pressure Feed Tube)
47187	47187-40010	Insulator, Warning Switch Terminal
47187	96731-01007	Ring, O(For Warning Switch Terminal)
47187	90590-04003	Terminal(For Brake Warning Switch)
47188	47188-40010	Insulator, Warning Switch Terminal
47189	47189-40010	Support, Warning Switch Terminal
47311	47311-40050	Tube, Front Brake, No.1
47312	47313-40020	Tube, Front Brake, No.2
47312	47313-40021	Tube, Front Brake, No.2
47313	47314-40020	Tube, Front Brake, No.3
47313	47314-40021	Tube, Front Brake, No.3
47313	47314-40022	Tube, Front Brake, No.3
47313	90947-02075	Hose, Flexible, No.1(For Front)
47316	90947-02072	Hose, Flexible(For Rear Brake Tube)
47316	90947-02120	Hose, Flexible(For Rear Brake Tube)
47318	90430-10027	Gasket, W/head Straight Screw Plug
47321	47312-40010	Tube, Rear Brake, No.1
47321	90413-10023	Way(For Rear Rh Brake Tube)
47321	90413-10086	Way(For Rear Brake Tube)
47323	47316-40020	Tube, Rear Brake, No.3
47323	47316-40021	Tube, Rear Brake, No.3
47323	47316-40022	Tube, Rear Brake, No.3
47323	47349-40010	Tube, Rear Brake, No.3
47324	47318-40010	Tube, Rear Brake, No.4
47324	47318-40012	Tube, Rear Brake, No.4
47324	47318-40011	Tube, Rear Brake, No.4
47325	47319-40020	Tube, Rear Brake, No.5
47325	47319-40022	Tube, Rear Brake, No.5
47325	47319-40021	Tube, Rear Brake, No.5
47341	47341-25010	Cover, Tube
47341	47331-40011	Tube, Wheel Cylinder, Front Rh
47341	47331-40012	Tube, Wheel Cylinder, Front Rh
9048015146	90480-15146	Grommet(For Front Brake Tube)
9052312012	90523-12012	Ring, E(For Clutch Release Cable)
9052312012	96160-01200	Ring, E(For Clutch Release Cable)
9111141036	91111-41036	Bolt Or Stud Bolt(For Brake Master Cylinder Setting)
9111141036	91111-51035	Bolt Or Stud Bolt(For Brake Master Cylinder Setting)
9161140840	91611-40840	New Genuine Part
9161140840	91611-60840	BOLT
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9699010080	96990-10080	New Genuine Part
9699010080	96990-10060	CLIP

OEM	Part name	Category
47180-40010	Valve,assy, Brrke Pressure Differential	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47182-40010	Piston, Warning Switch	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47183-40010	Plug, Warning Switch Body	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47187-40010	Insulator, Warning Switch Terminal	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47188-40010	Insulator, Warning Switch Terminal	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47189-40010	Support, Warning Switch Terminal	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47311-40050	Tube, Front Brake, No.1	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47312-40010	Tube, Rear Brake, No.1	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47313-40020	Tube, Front Brake, No.2	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47313-40021	Tube, Front Brake, No.2	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47314-40020	Tube, Front Brake, No.3	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47314-40021	Tube, Front Brake, No.3	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47314-40022	Tube, Front Brake, No.3	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47316-40020	Tube, Rear Brake, No.3	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47316-40021	Tube, Rear Brake, No.3	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47316-40022	Tube, Rear Brake, No.3	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47318-40010	Tube, Rear Brake, No.4	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47318-40011	Tube, Rear Brake, No.4	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47318-40012	Tube, Rear Brake, No.4	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47319-40020	Tube, Rear Brake, No.5	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47319-40021	Tube, Rear Brake, No.5	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47319-40022	Tube, Rear Brake, No.5	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47331-40011	Tube, Wheel Cylinder, Front Rh	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47331-40012	Tube, Wheel Cylinder, Front Rh	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47341-25010	Cover, Tube	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
47349-40010	Tube, Rear Brake, No.3	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
90301-06129	Ring, O(For Warning Switch Piston)	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
90341-16040	Plug, Screw(For Brake Pressure Differential Valve)	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
90341-16047	Plug, Screw(For Brake Pressure Differential Valve)	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
90410-03015	Seat, Union(For Clutch Master Cylinder) - UNION(FOR CLUTCH RELEASE CYLINDER)	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
90410-03024	Seat, Union(For Brake Differential Valve)	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
90413-10023	Way(For Rear Rh Brake Tube)	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
90413-10086	Way(For Rear Brake Tube)	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
90430-10027	Gasket, W/head Straight Screw Plug	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
90430-16168	Gasket(For Pressure Feed Tube)	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
90480-15146	Grommet(For Front Brake Tube)	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
90501-12424	Spring, Compression(For Warning Switch Body)	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
90523-12012	Ring, E(For Clutch Release Cable)	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
90590-04003	Terminal(For Brake Warning Switch)	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
90947-02072	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
90947-02075	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
90947-02120	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
91111-41036	Bolt Or Stud Bolt(For Brake Master Cylinder Setting)	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
91111-51035	Bolt Or Stud Bolt(For Brake Master Cylinder Setting)	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
91611-40840	New Genuine Part	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
91611-60840	BOLT	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
96160-01200	Ring, E(For Clutch Release Cable)	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
96731-01007	Ring, O(For Warning Switch Terminal)	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
96990-10060	CLIP	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
96990-10080	New Genuine Part	Brake Tube & Clamp ([11.1967 - 02.1973] (6711-7302))
