Search › Model › VE24
VE24

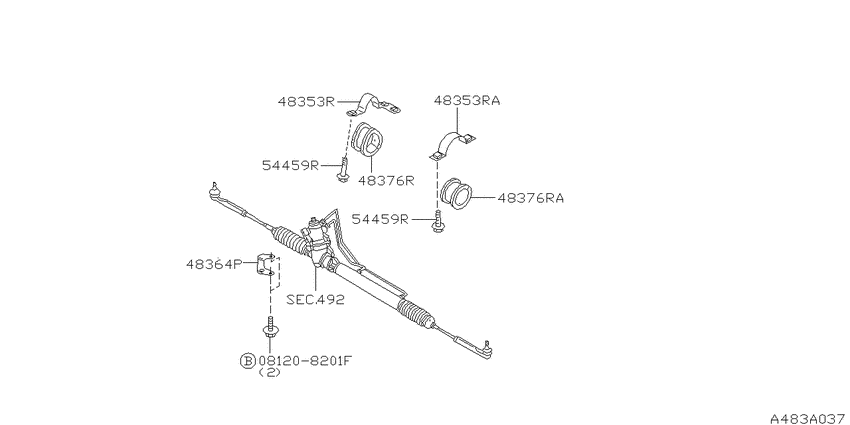

Steering gear mounting (1999-06-01 ~ ; 2WD.QD32 +KA20DE +KA24DE) 6
| # | OEM | Part name |
|---|---|---|
| 48353 | 54442-64N00 | Bracket |
| 48364 | 48364-27N00 | Protector-Power Steering Tube |
| 48376 | 54444-G5110 | Insulator, Rh |
| 48376 | 54445-25C00 | Insulator, Lh |
| 54459 | 54459-50A00 | Bolt |
| 54459 | 54459-51E00 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 48364-27N00 | Protector-Power Steering Tube | Steering gear mounting (1999-06-01 ~ ; 2WD.QD32 +KA20DE +KA24DE) |
| 54442-64N00 | Bracket | Steering gear mounting (1999-06-01 ~ ; 2WD.QD32 +KA20DE +KA24DE) |
| 54444-G5110 | Insulator, Rh | Steering gear mounting (1999-06-01 ~ ; 2WD.QD32 +KA20DE +KA24DE) |
| 54445-25C00 | Insulator, Lh | Steering gear mounting (1999-06-01 ~ ; 2WD.QD32 +KA20DE +KA24DE) |
| 54459-50A00 | Bolt | Steering gear mounting (1999-06-01 ~ ; 2WD.QD32 +KA20DE +KA24DE) |
| 54459-51E00 | BOLT | Steering gear mounting (1999-06-01 ~ ; 2WD.QD32 +KA20DE +KA24DE) |
