Search › Model › VE24
VE24

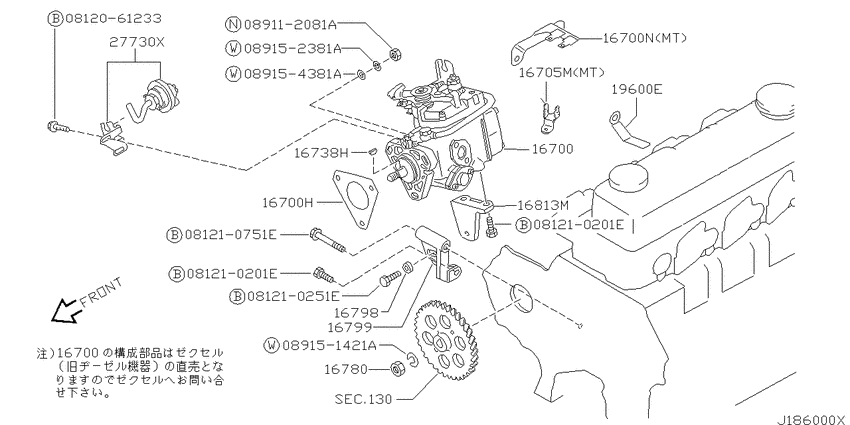

Fuel injection pump (1999-06-01 ~ ; QD32) 8
| # | OEM | Part name |
|---|---|---|
| 16700 | 16700-58N14 | Pump Assy-Injection |
| 16700 | 16700-58N15 | Pump Assy-Injection |
| 16780 | 01211-01054 | NUT |
| 16798 | 16420-43G00 | Washer |
| 16799 | 16811-43G02 | Bracket-Injection |
| 16813 | 16814-43G01 | Plate-Clamp |
| 27730 | 27731-37N00 | Actuator |
| 81210751 | 08121-0751E | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 01211-01054 | NUT | Fuel injection pump (1999-06-01 ~ ; QD32) |
| 08121-0751E | Bolt-hexagon | Fuel injection pump (1999-06-01 ~ ; QD32) |
| 16420-43G00 | Washer | Fuel injection pump (1999-06-01 ~ ; QD32) |
| 16700-58N14 | Pump Assy-Injection | Fuel injection pump (1999-06-01 ~ ; QD32) |
| 16700-58N15 | Pump Assy-Injection | Fuel injection pump (1999-06-01 ~ ; QD32) |
| 16811-43G02 | Bracket-Injection | Fuel injection pump (1999-06-01 ~ ; QD32) |
| 16814-43G01 | Plate-Clamp | Fuel injection pump (1999-06-01 ~ ; QD32) |
| 27731-37N00 | Actuator | Fuel injection pump (1999-06-01 ~ ; QD32) |
