Search › Model › VE24
VE24

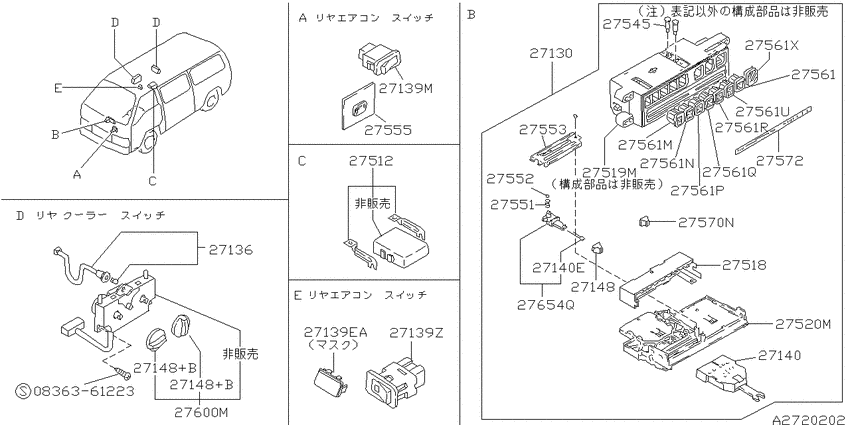

Control unit (1999-06-01 ~ ; ボタンシキ コントロール; LV +RV) 10
| # | OEM | Part name |
|---|---|---|
| 27520 | 27520-64N00 | Base-Control |
| 27545 | 27545-50Y00 | Lamp Assy-Heater Control |
| 27545 | 27545-WA400 | Lamp Assy-Heater Control |
| 27545 | 27545-50Y60 | Lamp Assy-Heater Control |
| 27561 | 27568-64N00 | Button-Air Conditioner |
| 27561 | 27567-64N00 | Button-Recirc |
| 27561 | 27569-64N00 | Button-Blind |
| 27572 | 27572-64N00 | Panel-Finisher |
| 27654 | 27527-64N00 | Lever-Temp Control |
| 836361223 | 08363-61223 | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08363-61223 | スクリユ-,マシン | Control unit (1999-06-01 ~ ; ボタンシキ コントロール; LV +RV) |
| 27520-64N00 | Base-Control | Control unit (1999-06-01 ~ ; ボタンシキ コントロール; LV +RV) |
| 27527-64N00 | Lever-Temp Control | Control unit (1999-06-01 ~ ; ボタンシキ コントロール; LV +RV) |
| 27545-50Y00 | Lamp Assy-Heater Control | Control unit (1999-06-01 ~ ; ボタンシキ コントロール; LV +RV) |
| 27545-50Y60 | Lamp Assy-Heater Control | Control unit (1999-06-01 ~ ; ボタンシキ コントロール; LV +RV) |
| 27545-WA400 | Lamp Assy-Heater Control | Control unit (1999-06-01 ~ ; ボタンシキ コントロール; LV +RV) |
| 27567-64N00 | Button-Recirc | Control unit (1999-06-01 ~ ; ボタンシキ コントロール; LV +RV) |
| 27568-64N00 | Button-Air Conditioner | Control unit (1999-06-01 ~ ; ボタンシキ コントロール; LV +RV) |
| 27569-64N00 | Button-Blind | Control unit (1999-06-01 ~ ; ボタンシキ コントロール; LV +RV) |
| 27572-64N00 | Panel-Finisher | Control unit (1999-06-01 ~ ; ボタンシキ コントロール; LV +RV) |
