Search › Model › VE24
VE24

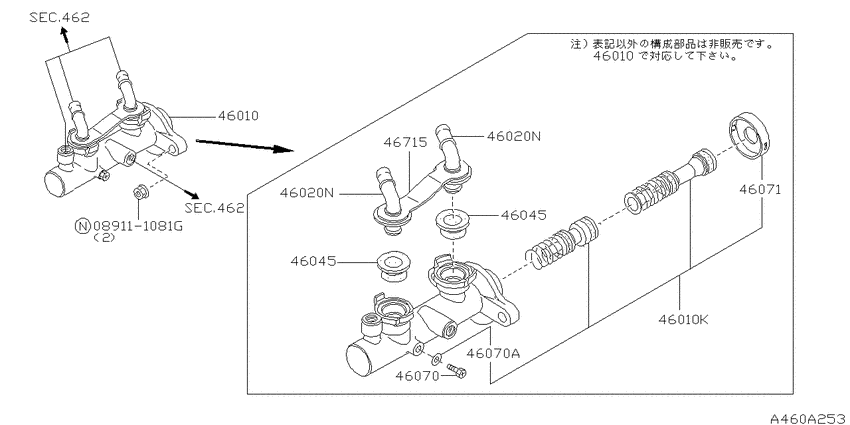

Brake master cylinder (1999-06-01 ~ ; アンチ スキッド 付き; KA20DE +KA24DE +QD32) 6
| # | OEM | Part name |
|---|---|---|
| 46010 | 46010-20N00 | Cylinder Assy-Brake Master |
| 46010 | 46011-0W025 | Piston Kit-Tandem Brake Master Cylinder |
| 46010 | 46011-R9029 | Piston Kit-Tandem Brake Master Cylinder |
| 46070 | 46032-30P21 | Screw-Stopper |
| 46070 | 46079-1P220 | Packing-Stopper Screw |
| 46071 | 46082-R9000 | Ring-Snap |
| OEM | Part name | Category |
|---|---|---|
| 46010-20N00 | Cylinder Assy-Brake Master | Brake master cylinder (1999-06-01 ~ ; アンチ スキッド 付き; KA20DE +KA24DE +QD32) |
| 46011-0W025 | Piston Kit-Tandem Brake Master Cylinder | Brake master cylinder (1999-06-01 ~ ; アンチ スキッド 付き; KA20DE +KA24DE +QD32) |
| 46011-R9029 | Piston Kit-Tandem Brake Master Cylinder | Brake master cylinder (1999-06-01 ~ ; アンチ スキッド 付き; KA20DE +KA24DE +QD32) |
| 46032-30P21 | Screw-Stopper | Brake master cylinder (1999-06-01 ~ ; アンチ スキッド 付き; KA20DE +KA24DE +QD32) |
| 46079-1P220 | Packing-Stopper Screw | Brake master cylinder (1999-06-01 ~ ; アンチ スキッド 付き; KA20DE +KA24DE +QD32) |
| 46082-R9000 | Ring-Snap | Brake master cylinder (1999-06-01 ~ ; アンチ スキッド 付き; KA20DE +KA24DE +QD32) |
