Search › Model › VE24
VE24

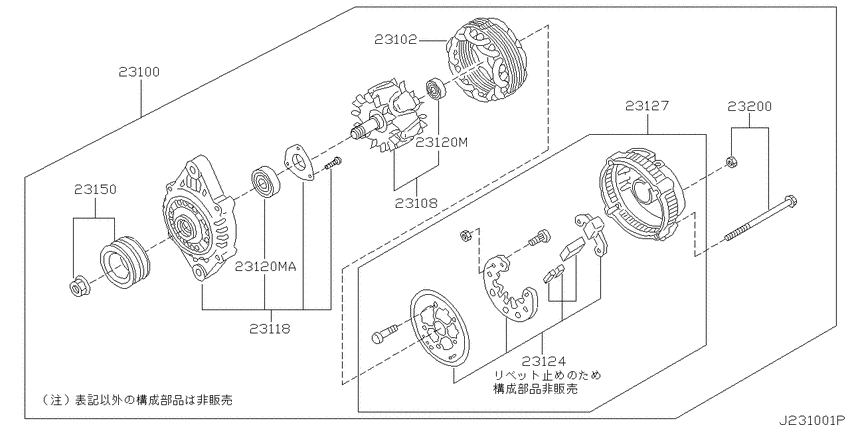

Alternator (1999-06-01 ~ ; QD32) 11
| # | OEM | Part name |
|---|---|---|
| 23100 | 23100-6T002 | Alternator Assy |
| 23100 | 33296-43G00 | Washer-Plain |
| 23102 | 23102-31U00 | Stator Assy |
| 23108 | 23108-8E100 | ROTOR ASSY |
| 23118 | 23118-6T000 | Cover Assy-Front |
| 23120 | 23120-0M000 | Bearing-Ball |
| 23120 | 23120-0M005 | Bearing-Ball |
| 23124 | 23124-6T002 | Rectifier Assy |
| 23127 | 23127-6T002 | Cover Assy-Rear |
| 23150 | 23150-6T000 | Pulley Assy |
| 23200 | 23200-0M000 | Screw Set |
| OEM | Part name | Category |
|---|---|---|
| 23100-6T002 | Alternator Assy | Alternator (1999-06-01 ~ ; QD32) |
| 23102-31U00 | Stator Assy | Alternator (1999-06-01 ~ ; QD32) |
| 23108-8E100 | ROTOR ASSY | Alternator (1999-06-01 ~ ; QD32) |
| 23118-6T000 | Cover Assy-Front | Alternator (1999-06-01 ~ ; QD32) |
| 23120-0M000 | Bearing-Ball | Alternator (1999-06-01 ~ ; QD32) |
| 23120-0M005 | Bearing-Ball | Alternator (1999-06-01 ~ ; QD32) |
| 23124-6T002 | Rectifier Assy | Alternator (1999-06-01 ~ ; QD32) |
| 23127-6T002 | Cover Assy-Rear | Alternator (1999-06-01 ~ ; QD32) |
| 23150-6T000 | Pulley Assy | Alternator (1999-06-01 ~ ; QD32) |
| 23200-0M000 | Screw Set | Alternator (1999-06-01 ~ ; QD32) |
| 33296-43G00 | Washer-Plain | Alternator (1999-06-01 ~ ; QD32) |
