| 11301-51011 |
Case Sub-Assy, Timing Gear |

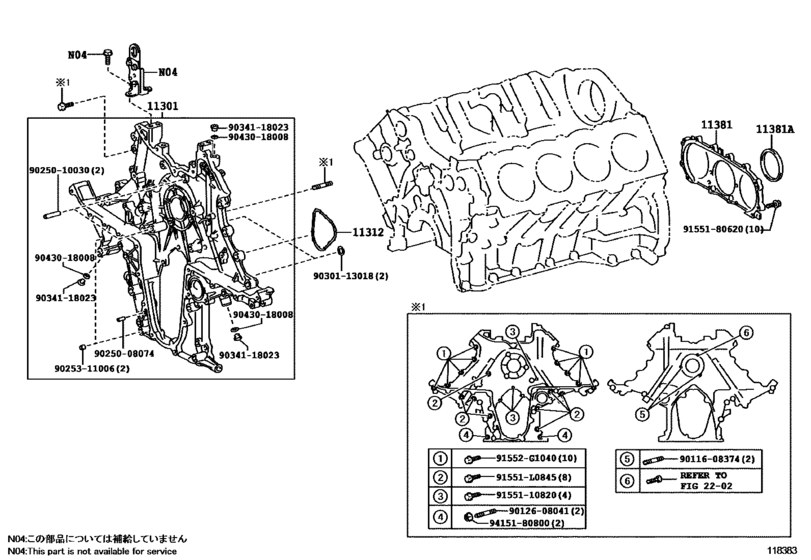

Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER REAR (0701- )1VDFTV) |
| 11312-51010 |
Gasket, Front End Plate |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER REAR (0701- )1VDFTV) |
| 11381-51020 |
Retainer, Engine Rear Oil Seal |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER REAR (0701- )1VDFTV) |
| 90116-08374 |
Bolt, Stud(For Timing Gear Cover) |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER REAR (0701- )1VDFTV) |
| 90126-08041 |
STUD HEX LOBULAR |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER REAR (0701- )1VDFTV) |
| 90250-08074 |
Pin, Straight(For Timing Gear Case) |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER REAR (0701- )1VDFTV) |
| 90250-10030 |
Pin, Straight(For Clutch Housing Set) |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER REAR (0701- )1VDFTV) |
| 90253-11006 |
Pin, Ring |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER REAR (0701- )1VDFTV) |
| 90301-13018 |
RING O |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER REAR (0701- )1VDFTV) |
| 90311-99014 |
Seal, Engine Rear Oil |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER REAR (0701- )1VDFTV) |
| 90341-18023 |
Plug, W/head Straight Screw, No.1 |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER REAR (0701- )1VDFTV) |
| 90430-18008 |
Gasket |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER REAR (0701- )1VDFTV) |
| 90430-T0021 |
Gasket(For Manual Transmission Filler Plug) |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER REAR (0701- )1VDFTV) |
| 91551-10820 |
New Genuine Part |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER REAR (0701- )1VDFTV) |
| 91551-80620 |
Bolt |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER REAR (0701- )1VDFTV) |
| 91551-L0845 |
BOLT FLANGE |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER REAR (0701- )1VDFTV) |
| 91552-G1040 |
BOLT FLANGE |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER REAR (0701- )1VDFTV) |
| 94151-80800 |
Nut (For Transmission Control Cable) |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER REAR (0701- )1VDFTV) |
