VDJ79

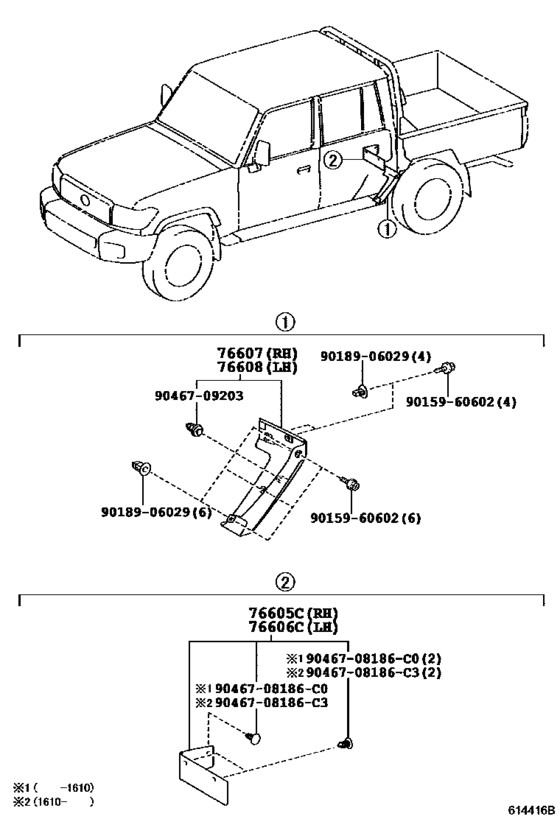

Side Member ([08.2012 - ] (1208- )DCB) 9
| # | OEM | Part name |
|---|---|---|
| 76605 | 76605-60010 | Mudguard Sub-Assy, Rear Body, Front Rh |
| 76606 | 76606-60010 | Mudguard Sub-Assy, Rear Body, Front Lh |
| 76607 | 76607-60250 | Mudguard Sub-Assy, Quarter Panel, Rear Rh |
| 76608 | 76608-60250 | Mudguard Sub-Assy, Quarter Panel, Rear Lh |
| 9015960602 | 90159-60602 | SCREW |
| 9018906029 | 90189-06029 | GROMMET |
| 9046708186 | 90467-08186-C0 | Clip(For Front Bumper), No.1 |
| 9046708186 | 90467-08186-C3 | Clip(For Front Bumper), No.1 |
| 9046709203 | 90467-09203 | Clip(For Rear Floor Mat Plate) |
| OEM | Part name | Category |
|---|---|---|
| 76605-60010 | Mudguard Sub-Assy, Rear Body, Front Rh | Side Member ([08.2012 - ] (1208- )DCB) |
| 76606-60010 | Mudguard Sub-Assy, Rear Body, Front Lh | Side Member ([08.2012 - ] (1208- )DCB) |
| 76607-60250 | Mudguard Sub-Assy, Quarter Panel, Rear Rh | Side Member ([08.2012 - ] (1208- )DCB) |
| 76608-60250 | Mudguard Sub-Assy, Quarter Panel, Rear Lh | Side Member ([08.2012 - ] (1208- )DCB) |
| 90159-60602 | SCREW | Side Member ([08.2012 - ] (1208- )DCB) |
| 90189-06029 | GROMMET | Side Member ([08.2012 - ] (1208- )DCB) |
| 90467-08186-C0 | Clip(For Front Bumper), No.1 | Side Member ([08.2012 - ] (1208- )DCB) |
| 90467-08186-C3 | Clip(For Front Bumper), No.1 | Side Member ([08.2012 - ] (1208- )DCB) |
| 90467-09203 | Clip(For Rear Floor Mat Plate) | Side Member ([08.2012 - ] (1208- )DCB) |
