Search › Model › VDJ79
VDJ79

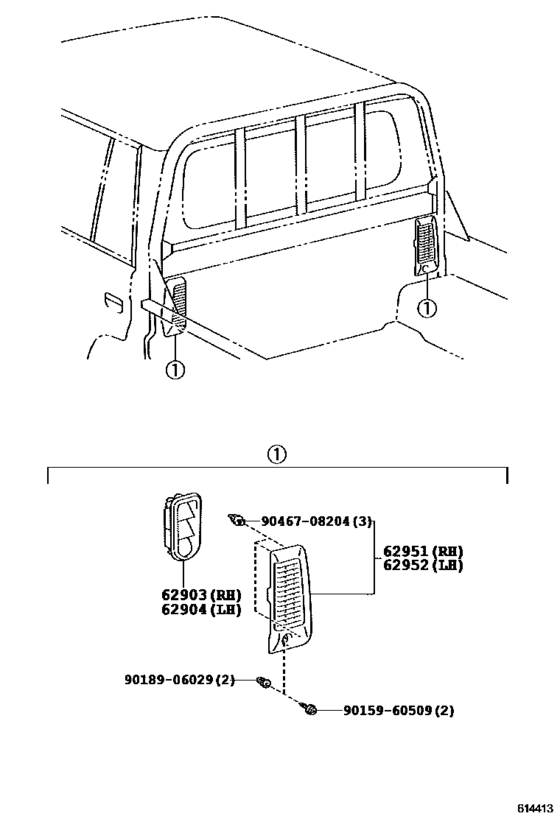

Rear Ventilator & Roof Ventilator ([08.2012 - ] (1208- )DCB) 6
| # | OEM | Part name |
|---|---|---|
| 62903 | 62930-52030 | Duct Sub-Assy, Quarter Ventilator, Rh |
| 62951 | 62905-60080 | Louver, Vent, Inner Rh |
| 62952 | 62906-60080 | Louver, Vent, Inner Lh |
| 9015960509 | 90159-60509 | SCREW W-WASHER |
| 9018906029 | 90189-06029 | GROMMET |
| 9046708204 | 90467-08204 | Retainer, Outside Moulding, No.1 |
| OEM | Part name | Category |
|---|---|---|
| 62905-60080 | Louver, Vent, Inner Rh | Rear Ventilator & Roof Ventilator ([08.2012 - ] (1208- )DCB) |
| 62906-60080 | Louver, Vent, Inner Lh | Rear Ventilator & Roof Ventilator ([08.2012 - ] (1208- )DCB) |
| 62930-52030 | Duct Sub-Assy, Quarter Ventilator, Rh | Rear Ventilator & Roof Ventilator ([08.2012 - ] (1208- )DCB) |
| 90159-60509 | SCREW W-WASHER | Rear Ventilator & Roof Ventilator ([08.2012 - ] (1208- )DCB) |
| 90189-06029 | GROMMET | Rear Ventilator & Roof Ventilator ([08.2012 - ] (1208- )DCB) |
| 90467-08204 | Retainer, Outside Moulding, No.1 | Rear Ventilator & Roof Ventilator ([08.2012 - ] (1208- )DCB) |
