VDJ79

Toyota LAND-CRUISER · 2007 · 4,111 parts · 236 categories

4,111 items

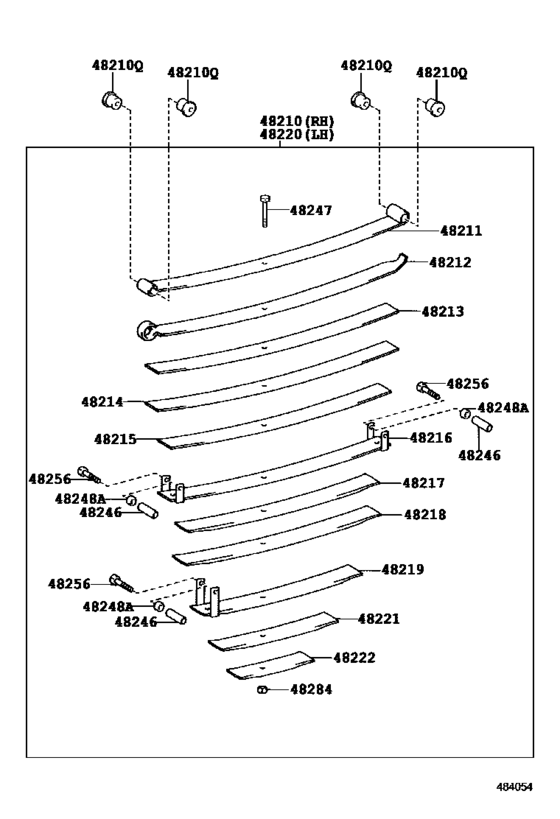

Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79) 41

#	OEM	Part name
48210	48210-60B90	Spring Assy, Rear - REAR RH
48210	48210-60C00	Spring Assy, Rear Rh
48210	90385-18021	Bush(For Rear Spring Shackle)
48210	90385-18022	Bush(For Rear Spring Shackle)
48211	48211-60B80	Leaf, Rear Spring, No.1
48211	48211-60B90	Leaf, Rear Spring, No.1
48211	48211-60C00	Leaf, Rear Spring, No.1
48212	48212-60B80	Leaf, Rear Spring, No.2
48212	48212-60C00	Leaf, Rear Spring, No.2
48212	48212-6A100	Leaf, Rear Spring, No.2
48213	48213-60B81	Leaf, Rear Spring, No.3
48213	48213-60C01	Leaf, Rear Spring, No.3
48213	48213-6A100	Leaf, Rear Spring, No.3
48214	48214-60B81	Leaf, Rear Spring, No.4
48214	48214-60C01	Leaf, Rear Spring, No.4
48214	48214-6A100	Leaf, Rear Spring, No.4
48215	48215-60B81	Leaf, Rear Spring, No.5
48215	48215-60C01	Leaf, Rear Spring, No.5
48215	48215-6A100	Leaf, Rear Spring, No.5
48216	48202-60B81	Leaf, Rear Spring, No.6
48216	48202-60C01	Leaf, Rear Spring, No.6
48216	48202-6A100	Leaf, Rear Spring, No.6
48217	48217-60B81	Leaf, Rear Spring, No.7
48217	48217-60C01	Leaf, Rear Spring, No.7
48217	48217-6A100	Leaf, Rear Spring, No.7
48218	48203-60B81	Leaf, Rear Spring, No.8
48218	48203-60C01	Leaf, Rear Spring, No.8
48218	48261-6A100	Leaf, Rear Spring, No.8
48219	48207-6A100	Leaf, Rear Spring, No.9
48220	48210-60B80	Spring Assy, Rear Rh
48221	48263-6A100	Leaf, Rear Spring, No.10
48222	48264-6A100	Leaf, Rear Spring, No.11
48246	48146-60742	Case, Rear Spring Clip Bolt
48246	48246-36052	Case, Rear Spring Clip Bolt
48247	48247-36720	Bolt, Rear Spring, Center
48247	48289-60010	Bolt, Front Spring, Center
48248	48148-60742	Washer(For Rear Spring Clip Bolt)
48256	48156-60742	Bolt, Hexagon(For Rear Spring Clip Set)
48256	48256-25050	Bolt, Hexagon(For Rear Spring Clip)
48284	48284-37130	Nut, Front Spring Center Bolt
48284	48284-60062	Nut, Front Spring Center Bolt

OEM	Part name	Category
48146-60742	Case, Rear Spring Clip Bolt	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48148-60742	Washer(For Rear Spring Clip Bolt)	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48156-60742	Bolt, Hexagon(For Rear Spring Clip Set)	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48202-60B81	Leaf, Rear Spring, No.6	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48202-60C01	Leaf, Rear Spring, No.6	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48202-6A100	Leaf, Rear Spring, No.6	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48203-60B81	Leaf, Rear Spring, No.8	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48203-60C01	Leaf, Rear Spring, No.8	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48207-6A100	Leaf, Rear Spring, No.9	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48210-60B80	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48210-60B90	Spring Assy, Rear - REAR RH	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48210-60C00	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48211-60B80	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48211-60B90	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48211-60C00	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48212-60B80	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48212-60C00	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48212-6A100	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48213-60B81	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48213-60C01	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48213-6A100	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48214-60B81	Leaf, Rear Spring, No.4	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48214-60C01	Leaf, Rear Spring, No.4	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48214-6A100	Leaf, Rear Spring, No.4	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48215-60B81	Leaf, Rear Spring, No.5	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48215-60C01	Leaf, Rear Spring, No.5	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48215-6A100	Leaf, Rear Spring, No.5	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48217-60B81	Leaf, Rear Spring, No.7	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48217-60C01	Leaf, Rear Spring, No.7	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48217-6A100	Leaf, Rear Spring, No.7	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48246-36052	Case, Rear Spring Clip Bolt	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48247-36720	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48256-25050	Bolt, Hexagon(For Rear Spring Clip)	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48261-6A100	Leaf, Rear Spring, No.8	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48263-6A100	Leaf, Rear Spring, No.10	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48264-6A100	Leaf, Rear Spring, No.11	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48284-37130	Nut, Front Spring Center Bolt	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48284-60062	Nut, Front Spring Center Bolt	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
48289-60010	Bolt, Front Spring, Center	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
90385-18021	Bush(For Rear Spring Shackle)	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
90385-18022	Bush(For Rear Spring Shackle)	Rear Spring & Shock Absorber ([07.2009 - ] 11-LEAF (0907- )VDJ79..GCC ; (0907- )GRJ79,HZJ79)
