Search › Model › VDJ79
VDJ79

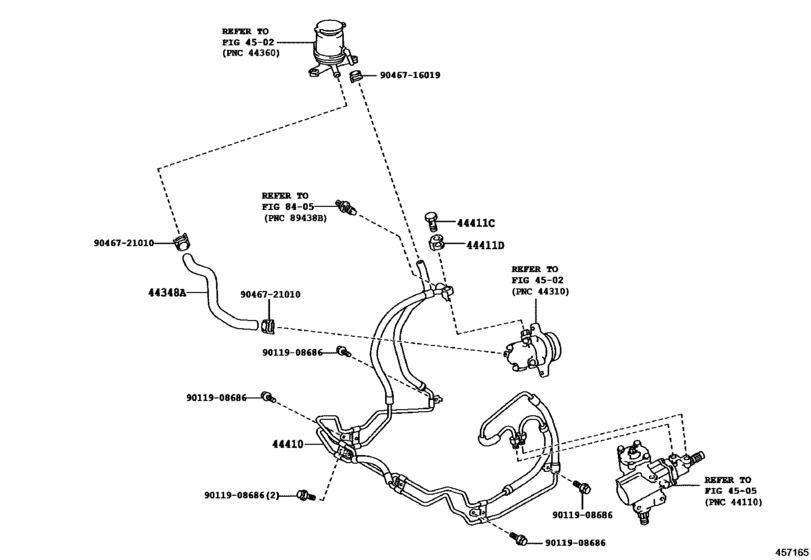

Power Steering Tube ([01.2017 - ] (1701- )VDJ7#..GCC) 7
| # | OEM | Part name |
|---|---|---|
| 44348 | 44348-60380 | Hose, Oil Reservoir To Pump, No.1 |
| 44410 | 44410-60B00 | Tube Assy, Pressure Feed |
| 44411 | 90401-16034 | Bolt, Union(For Pressure Feed Tube) |
| 44411 | 44327-30040 | Gasket, Pressure Port, No.1 |
| 9011908686 | 90119-08686 | BOLT |
| 9046716019 | 90467-16019 | Clip(For Return No.1) |
| 9046721010 | 90467-21010 | Clip(For Ventilation Hose No.2) |
| OEM | Part name | Category |
|---|---|---|
| 44327-30040 | Gasket, Pressure Port, No.1 | Power Steering Tube ([01.2017 - ] (1701- )VDJ7#..GCC) |
| 44348-60380 | Hose, Oil Reservoir To Pump, No.1 | Power Steering Tube ([01.2017 - ] (1701- )VDJ7#..GCC) |
| 44410-60B00 | Tube Assy, Pressure Feed | Power Steering Tube ([01.2017 - ] (1701- )VDJ7#..GCC) |
| 90119-08686 | BOLT | Power Steering Tube ([01.2017 - ] (1701- )VDJ7#..GCC) |
| 90401-16034 | Bolt, Union(For Pressure Feed Tube) | Power Steering Tube ([01.2017 - ] (1701- )VDJ7#..GCC) |
| 90467-16019 | Clip(For Return No.1) | Power Steering Tube ([01.2017 - ] (1701- )VDJ7#..GCC) |
| 90467-21010 | Clip(For Ventilation Hose No.2) | Power Steering Tube ([01.2017 - ] (1701- )VDJ7#..GCC) |
