Search › Model › VDJ79
VDJ79

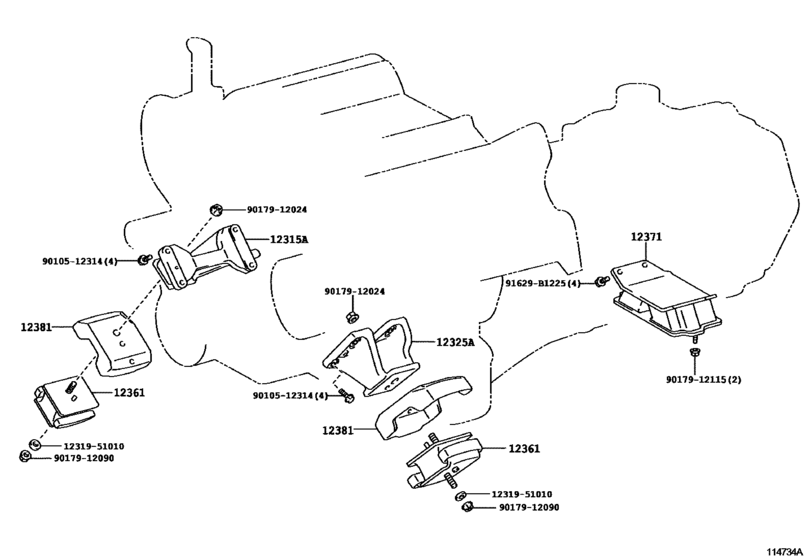

Mounting ([01.2007 - ] (0701- )1VDFTV) 11
| # | OEM | Part name |
|---|---|---|
| 12315 | 12315-51020 | Bracket, Engine Mounting, Rh(For Transverse Engine) |
| 12325 | 12325-51010 | Bracket, Engine Mounting, Lh(For Transverse Engine) |
| 12361 | 12361-51020 | Insulator, Engine Mounting, Front |
| 12371 | 12371-17120 | Insulator, Engine Mounting, Rear No.1 |
| 12381 | 12381-51020 | Stabilizer, Engine Mounting |
| 91629 | 91629-B1225 | BOLT W-WASHER |
| 1231951010 | 12319-51010 | Spacer, Engine Mounting |
| 9010512314 | 90105-12314 | Bolt, Hexagon(For Front Disc Brake Caliper) |
| 9017912024 | 90179-12024 | NUT |
| 9017912090 | 90179-12090 | NUT |
| 9017912115 | 90179-12115 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 12315-51020 | Bracket, Engine Mounting, Rh(For Transverse Engine) | Mounting ([01.2007 - ] (0701- )1VDFTV) |
| 12319-51010 | Spacer, Engine Mounting | Mounting ([01.2007 - ] (0701- )1VDFTV) |
| 12325-51010 | Bracket, Engine Mounting, Lh(For Transverse Engine) | Mounting ([01.2007 - ] (0701- )1VDFTV) |
| 12361-51020 | Insulator, Engine Mounting, Front | Mounting ([01.2007 - ] (0701- )1VDFTV) |
| 12371-17120 | Insulator, Engine Mounting, Rear No.1 | Mounting ([01.2007 - ] (0701- )1VDFTV) |
| 12381-51020 | Stabilizer, Engine Mounting | Mounting ([01.2007 - ] (0701- )1VDFTV) |
| 90105-12314 | Bolt, Hexagon(For Front Disc Brake Caliper) | Mounting ([01.2007 - ] (0701- )1VDFTV) |
| 90179-12024 | NUT | Mounting ([01.2007 - ] (0701- )1VDFTV) |
| 90179-12090 | NUT | Mounting ([01.2007 - ] (0701- )1VDFTV) |
| 90179-12115 | NUT | Mounting ([01.2007 - ] (0701- )1VDFTV) |
| 91629-B1225 | BOLT W-WASHER | Mounting ([01.2007 - ] (0701- )1VDFTV) |
