VDJ79

Toyota LAND-CRUISER · 2007 · 4,111 parts · 236 categories
VDJ79 ×

← Back to categories

4,111 items

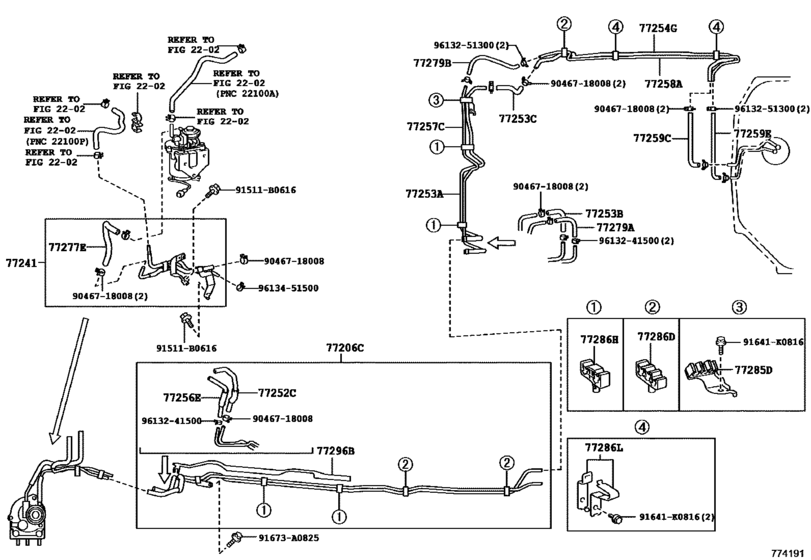

Fuel Tank & Tube ([08.2016 - ] FUEL TUBE (1608- )VDJ79..PIC..ARL,GCC) 20
#OEMPart name
77206 77206-60840 Tube Sub-Assy, Fuel Main, No.2
77206 77206-60850 Tube Sub-Assy, Fuel Main, No.2
77241 77205-60D00 Tube, Fuel Main, No.1
77252 77259-60L30 Hose, Fuel, No.2(For Fuel Main No.2 Tube)
77256 77259-60L40 Hose, Fuel, No.2 (For Fuel Return No.2 Tube)
77258 77258-60170 Tube, Fuel Return, No.4
77259 77259-60A51 Hose, Fuel
77259 95338-12016 Hose, Fuel
77277 77259-60761 Hose, Fuel, No.5 (For Return Tube, No.1)
77279 95337-10016 Hose, Fuel, No.7
77286 77285-60610 Clamp, Fuel Tube, No.2
91511 91511-B0616 BOLT, FLANGE
91511 90080-10164 BOLT, FLANGE
91641 91641-K0816 BOLT WWASHER
91673 91673-A0825 New Genuine Part
9046718008 90467-18008 Clip(For Water By-Pass Hose No.2)
9613241500 96132-41500 Clip(For Ventilation Tube)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
9613451500 96134-51500 Clip(For Ventilation Hose No.2)
9613451500 96133-41500 Clamp Or Clip(For Air Hose, No.5)
