VDJ79

Toyota LAND-CRUISER · 2007 · 4,111 parts · 236 categories
VDJ79 ×

← Back to categories

4,111 items

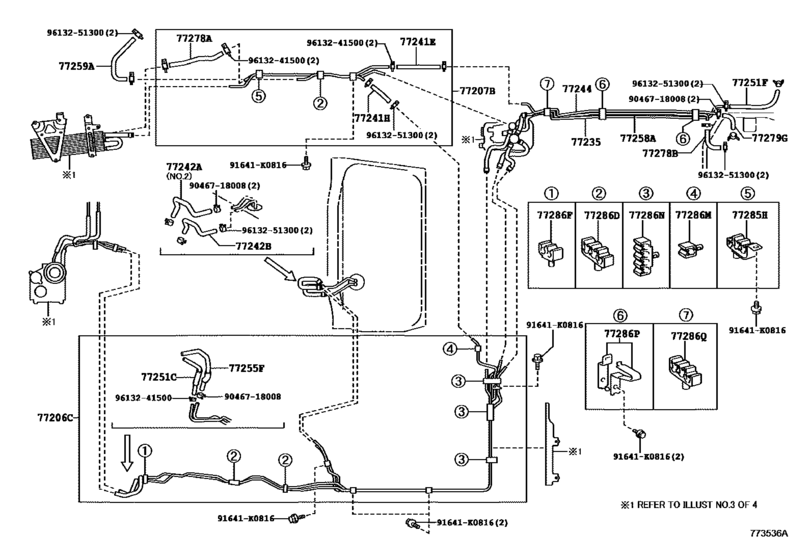

Fuel Tank & Tube ([08.2012 - ] FUEL TUBE, W(FUEL SUB TANK) (1208-1608)VDJ78,79..HT,PIC ; (1208- )VDJ79.. LX..CBU) 26
#OEMPart name
77206 77206-60840 Tube Sub-Assy, Fuel Main, No.2
77206 77206-60850 Tube Sub-Assy, Fuel Main, No.2
77207 77207-60281 Tube Sub-Assy, Fuel Main, No.3
77207 77207-60292 Tube Sub-Assy, Fuel Main, No.3
77235 77235-60020 Tube, Fuel Tank Breather, No.1
77241 95338-08022 Hose, Fuel, No.5 (For Main Tube, No.1) - FUEL, NO.2 (FOR FUEL RETURN TUBE)
77242 77259-60731 Hose, Fuel, No.1 (For Main Tube, No.2)
77242 77259-60771 Hose, Fuel, No.2 (For Main Tube, No.2)
77244 77254-60240 Tube, Fuel Main, No.4
77251 77259-60821 Hose, Fuel
77251 95338-08030 Hose, Fuel
77258 77258-60170 Tube, Fuel Return, No.4
77259 77259-60611 Hose, Fuel(For Breather Tube)
77278 77259-60781 Hose, Fuel, No.1 (For Return Tube, No.2)
77278 95337-08034 Hose, Fuel, No.2
77279 77259-60411 Hose, Fuel, No.2(For Fuel Main No.3 Tube)
77285 77285-60670 Clamp, Fuel Tube W/grommet, No.1
77286 77285-60610 Clamp, Fuel Tube, No.2
77286 77285-60820 Clamp, Fuel Tube, No.2
77286 77285-34380 Clamp, Fuel Tube, No.1 - FUEL TUBE, NO.6
77286 77285-60830 Clamp, Fuel Tube, No.3 - FUEL TUBE, NO.7
77286 77285-60740 Clamp, Fuel Tube, No.8
91641 91641-K0816 BOLT WWASHER
9046718008 90467-18008 Clip(For Water By-Pass Hose No.2)
9613241500 96132-41500 Clip(For Ventilation Tube)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
