VDJ79

Toyota LAND-CRUISER · 2007 · 4,111 parts · 236 categories
VDJ79 ×

← Back to categories

4,111 items

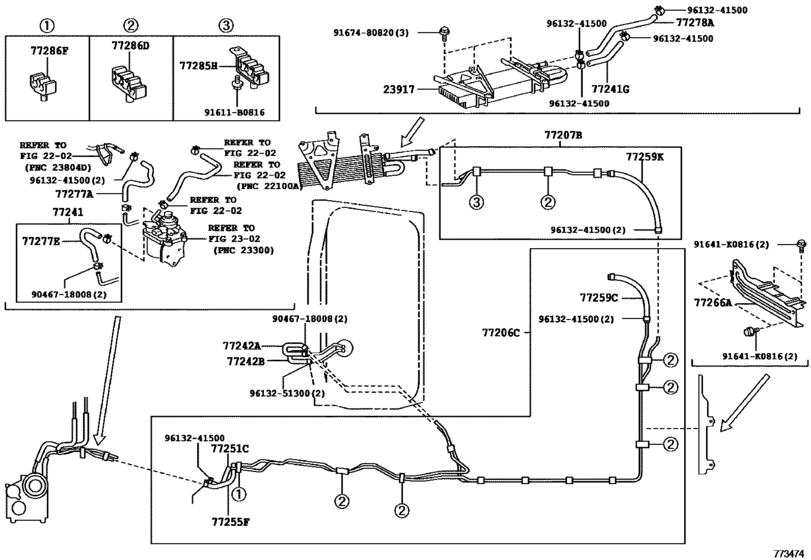

Fuel Tank & Tube ([08.2012 - ] FUEL TUBE (1208-1608)VDJ79..PIC..IV ; (1208- )VDJ79..LX ..CBU) 23
#OEMPart name
23917 23920-51012 Cooler, Fuel
77206 77206-60840 Tube Sub-Assy, Fuel Main, No.2
77206 77206-60850 Tube Sub-Assy, Fuel Main, No.2
77207 77207-60281 Tube Sub-Assy, Fuel Main, No.3
77207 77207-60292 Tube Sub-Assy, Fuel Main, No.3
77241 77205-60D00 Tube, Fuel Main, No.1
77242 77259-60731 Hose, Fuel, No.1 (For Main Tube, No.2)
77242 77259-60771 Hose, Fuel, No.2 (For Main Tube, No.2)
77259 77259-60A51 Hose, Fuel
77259 77259-60A61 Hose, Fuel
77266 77266-60060 Protector, Fuel Tube, No.1
77277 23273-51031 Hose, Fuel, No.1(For Return Tube, No.1)
77277 77259-60761 Hose, Fuel, No.5 (For Return Tube, No.1)
77278 77259-60781 Hose, Fuel, No.1 (For Return Tube, No.2)
77285 77285-60670 Clamp, Fuel Tube W/grommet, No.1
77286 77285-60610 Clamp, Fuel Tube, No.2
77286 77285-60820 Clamp, Fuel Tube, No.2
91611 91611-B0816 Bolt
91641 91641-K0816 BOLT WWASHER
9046718008 90467-18008 Clip(For Water By-Pass Hose No.2)
9167480820 91674-80820 BOLT FLANGE
9613241500 96132-41500 Clip(For Ventilation Tube)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
