VDJ76

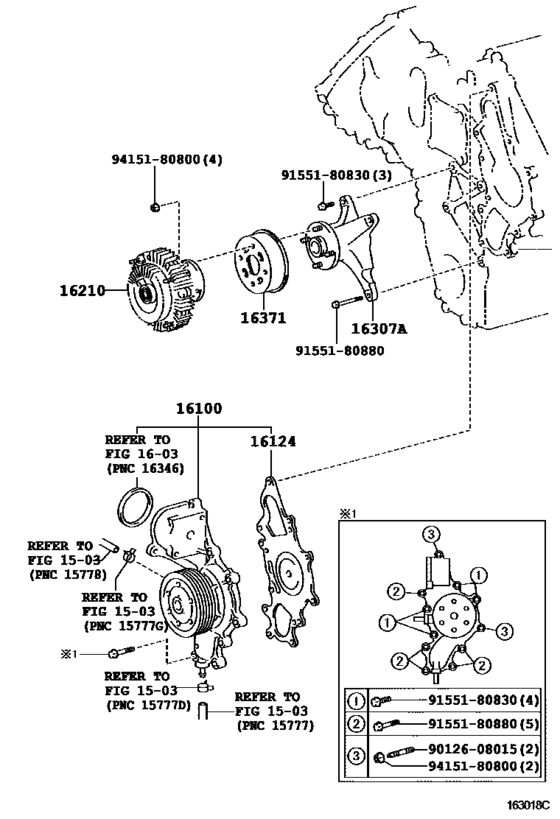

Water Pump ([01.2007 - ] (0701- )1VDFTV) 9
| # | OEM | Part name |
|---|---|---|
| 16100 | 16100-59366 | Pump Assy, Engine Water |
| 16124 | 16124-51010 | Gasket, Water Pump Cover |
| 16210 | 16210-51020 | Coupling Assy, Fluid |
| 16307 | 16307-51011 | Bracket Sub-Assy, Fan |
| 16371 | 16371-51020 | Pulley, Fan |
| 9012608015 | 90126-08015 | Stud |
| 9155180830 | 91551-80830 | Bolt, Compressor, No.2 |
| 9155180880 | 91551-80880 | Bolt, Compressor, No.3 |
| 9415180800 | 94151-80800 | Nut (For Transmission Control Cable) |
| OEM | Part name | Category |
|---|---|---|
| 16100-59366 | Pump Assy, Engine Water | Water Pump ([01.2007 - ] (0701- )1VDFTV) |
| 16124-51010 | Gasket, Water Pump Cover | Water Pump ([01.2007 - ] (0701- )1VDFTV) |
| 16210-51020 | Coupling Assy, Fluid | Water Pump ([01.2007 - ] (0701- )1VDFTV) |
| 16307-51011 | Bracket Sub-Assy, Fan | Water Pump ([01.2007 - ] (0701- )1VDFTV) |
| 16371-51020 | Pulley, Fan | Water Pump ([01.2007 - ] (0701- )1VDFTV) |
| 90126-08015 | Stud | Water Pump ([01.2007 - ] (0701- )1VDFTV) |
| 91551-80830 | Bolt, Compressor, No.2 | Water Pump ([01.2007 - ] (0701- )1VDFTV) |
| 91551-80880 | Bolt, Compressor, No.3 | Water Pump ([01.2007 - ] (0701- )1VDFTV) |
| 94151-80800 | Nut (For Transmission Control Cable) | Water Pump ([01.2007 - ] (0701- )1VDFTV) |
