Search › Model › VDJ76
VDJ76

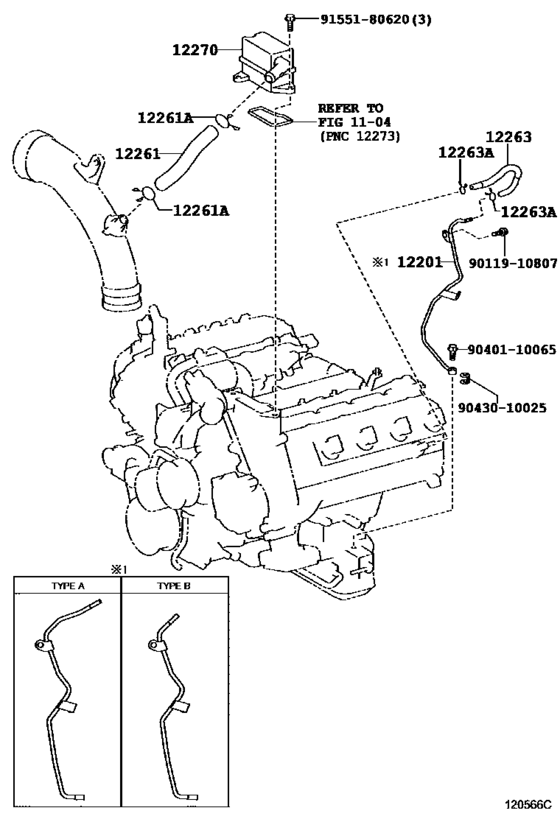

Ventilation Hose ([01.2007 - ] (0701- )1VDFTV) 11
| # | OEM | Part name |
|---|---|---|
| 12201 | 12201-51012 | Tube Sub-Assy, Ventilation |
| 12261 | 12261-51020 | Hose, Ventilation |
| 12261 | 90467-22010 | Clip Or Clamp(For Ventilation Hose) |
| 12263 | 12263-51011 | Hose, Ventilation, No.3 |
| 12263 | 90467-13103 | Clip Or Clamp(For Ventilation Hose) |
| 12270 | 12270-51010 | Separator Assy, Oil |
| 9011910807 | 90119-10807 | New Genuine Part |
| 9011910807 | 91642-K1020 | BOLT WWASHER |
| 9040110065 | 90401-10065 | Bolt, Union(For Turbo Oil Inlet Pipe) |
| 9043010025 | 90430-10025 | Gasket(For Turbo Oil Inlet Pipe) - NOZZLE LEAKAGE PIPE NO.2 |
| 9155180620 | 91551-80620 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 12201-51012 | Tube Sub-Assy, Ventilation | Ventilation Hose ([01.2007 - ] (0701- )1VDFTV) |
| 12261-51020 | Hose, Ventilation | Ventilation Hose ([01.2007 - ] (0701- )1VDFTV) |
| 12263-51011 | Hose, Ventilation, No.3 | Ventilation Hose ([01.2007 - ] (0701- )1VDFTV) |
| 12270-51010 | Separator Assy, Oil | Ventilation Hose ([01.2007 - ] (0701- )1VDFTV) |
| 90119-10807 | New Genuine Part | Ventilation Hose ([01.2007 - ] (0701- )1VDFTV) |
| 90401-10065 | Bolt, Union(For Turbo Oil Inlet Pipe) | Ventilation Hose ([01.2007 - ] (0701- )1VDFTV) |
| 90430-10025 | Gasket(For Turbo Oil Inlet Pipe) - NOZZLE LEAKAGE PIPE NO.2 | Ventilation Hose ([01.2007 - ] (0701- )1VDFTV) |
| 90467-13103 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([01.2007 - ] (0701- )1VDFTV) |
| 90467-22010 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([01.2007 - ] (0701- )1VDFTV) |
| 91551-80620 | Bolt | Ventilation Hose ([01.2007 - ] (0701- )1VDFTV) |
| 91642-K1020 | BOLT WWASHER | Ventilation Hose ([01.2007 - ] (0701- )1VDFTV) |
