| 11310-51012 |
Cover Sub-Assy, Timing Chain Or Belt |

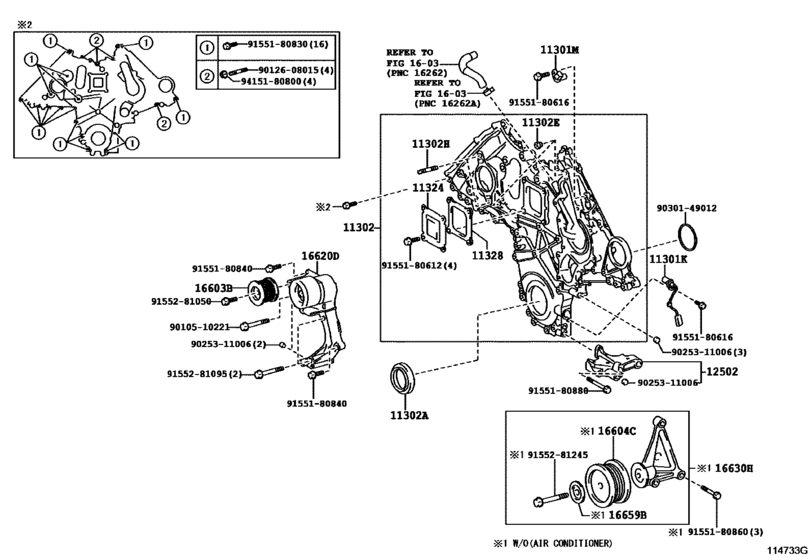

Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 11324-51010 |
Plate, Timing Chain Cover |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 11328-51020 |
Gasket, Timing Gear Or Chain Cover |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 12502-51010 |
Bracket Sub-Assy, Chain Cover & Compressor |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 16603-51010 |
Pulley Sub-Assy, Idler - IDLER, NO.2 |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 16604-51010 |
Pulley Sub-Assy, Idler, No.2 |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 16620-51011 |
Tensioner Assy, V-Ribbed Belt |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 16630-51010 |
Pulley Assy, Idler |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 16659-51010 |
Plate, Idler Pulley Cover, No.2 |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 90029-01518 |
Bolt, Stud(For Timing Gear Cover) |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 90105-10221 |
Bolt, Hexagon(For Air Pump Bracket Setting) |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 90126-08015 |
Stud |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 90253-11006 |
Pin, Ring |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 90301-49012 |
RING O |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 90311-52024 |
Seal, Oil(For Timing Chain Or Belt Cover) |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 90341-16022 |
Plug, W/head Straight Screw(For Timing Gear Case) |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 90919-05029 |
Sensor, Camshaft Position |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 90919-05072 |
Sensor, Crank Position |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 91551-80612 |
Bolt (For Front Differential Breather Plug Oil Deflector) |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 91551-80616 |
BOLT FLANGE |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 91551-80830 |
Bolt, Compressor, No.2 |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 91551-80840 |
Bolt(For Head To Camshaft Bearing Cap) |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 91551-80860 |
Bolt(For Head To Camshaft Bearing Cap) |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 91551-80880 |
Bolt, Compressor, No.3 |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 91552-81050 |
Bolt, No.2(For Alternator) |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 91552-81095 |
Bolt(For Alternator) |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 91552-81245 |
Bolt(For Transaxle & Engine Setting) |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
| 94151-80800 |
Nut (For Transmission Control Cable) |
Timing Gear Cover & Rear End Plate ([01.2007 - ] TIMING CHAIN COVER FRONT (0701- )1VDFTV) |
