VDJ76

Toyota LAND-CRUISER · 2007 · 3,863 parts · 209 categories
VDJ76 ×

← Back to categories

3,863 items

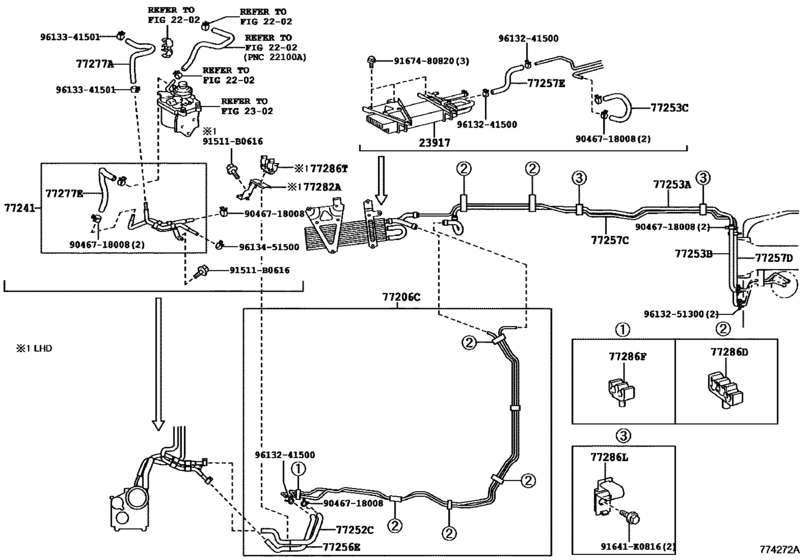

Fuel Tank & Tube ([08.2016 - ] FUEL TUBE (1608- )VDJ76..GCC,GEN) 28
#OEMPart name
23917 23920-51012 Cooler, Fuel
77206 77206-60810 Tube Sub-Assy, Fuel Main, No.2
77241 77205-60D00 Tube, Fuel Main, No.1
77252 77259-60L30 Hose, Fuel, No.2(For Fuel Main No.2 Tube)
77253 77254-60350 Tube, Fuel Main, No.3
77253 77259-60G10 Hose, Fuel, No.1(For Fuel Main No.3 Tube)
77253 77259-60C30 Hose, Fuel, No.2(For Fuel Main No.3 Tube)
77256 77259-60L40 Hose, Fuel, No.2 (For Fuel Return No.2 Tube)
77257 77258-60260 Tube, Fuel Return, No.3
77257 77259-60G20 Hose, Fuel, No.1(For Fuel Return No.3 Tube)
77257 77259-60C40 Hose, Fuel, No.2(For Fuel Return No.3 Tube)
77277 23273-51031 Hose, Fuel, No.1(For Return Tube, No.1)
77277 77259-60761 Hose, Fuel, No.5 (For Return Tube, No.1)
77282 77282-60050 Bracket, Fuel Main Tube, No.2
77286 77285-60610 Clamp, Fuel Tube, No.2
77286 77285-60820 Clamp, Fuel Tube, No.2
77286 77285-60C10 Clamp, Fuel Tube, No.5
77286 23842-51010 Clamp, Fuel Tube, No.11
91511 91511-B0616 BOLT, FLANGE
91511 90080-10164 BOLT, FLANGE
91641 91641-K0816 BOLT WWASHER
9046718008 90467-18008 Clip(For Water By-Pass Hose No.2)
9167480820 91674-80820 BOLT FLANGE
9613241500 96132-41500 Clip(For Ventilation Tube)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
9613341501 96133-41501 Clip(For Air Hose No.3)
9613451500 96134-51500 Clip(For Ventilation Hose No.2)
9613451500 96133-41500 Clamp Or Clip(For Air Hose, No.5)
