Search › Model › VDJ76

VDJ76

Toyota LAND-CRUISER · 2007 · 3,863 parts · 209 categories

3,863 items

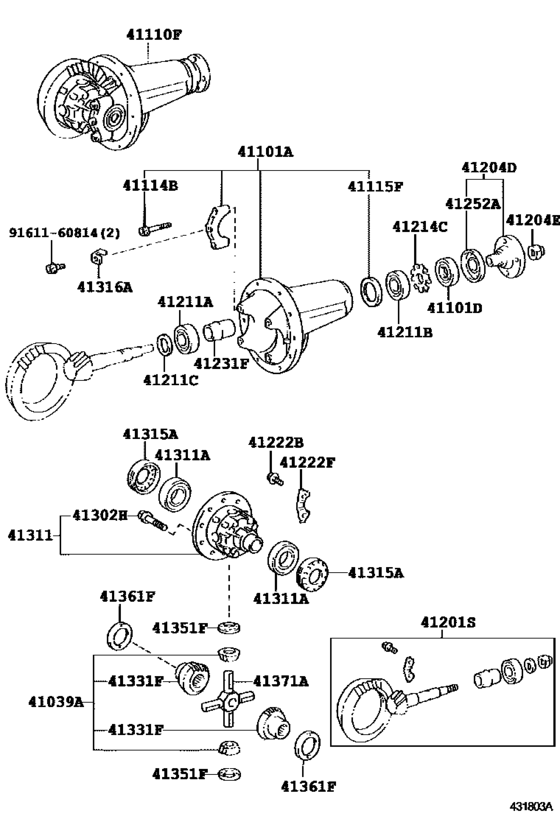

Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC) 64

#	OEM	Part name
41039	41039-34060	Gear Kit, Differential, Rear
41039	41039-34080	Gear Kit, Differential, Rear
41101	41101-60091	Carrier Sub-Assy, Differential, Front
41101	90311-41018	Seal, Oil (For Differential Carrier)
41110	41110-60B31	Carrier Assy, Differential, Front
41110	41110-60B71	Carrier Assy, Differential, Front
41114	90105-12053	Bolt (For Rear Differential Carrier)
41115	41115-35010	Ring, Differential Oil Storage
41201	41201-80806	Final Gear Kit, Differential, Front
41201	41201-80807	Final Gear Kit, Differential, Front
41204	41204-35083	Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204	90177-22003	Nut (For Rear Drive Pinion)
41211	90366-35087	Bearing , Tapered Roller (for front drive pinion)
41211	90366-30105	Bearing (For Rear Drive Pinion Front)
41211	90201-35497	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35498	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35499	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35500	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35501	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35502	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35503	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35504	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35505	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35506	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35507	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35508	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35509	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35510	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35511	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35512	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35513	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35514	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35515	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35516	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35517	Washer, Plate (For Rear Differential Drive Pinion)
41211	90201-35518	Washer, Plate (For Rear Differential Drive Pinion)
41214	41214-60011	Slinger, Front Differential Drive Pinion Oil
41222	90101-11353	Bolt (For Rear Differential Ring Gear Set)
41222	41222-35020	Plate, Rear Differential Ring Gear Set Bolt Lock
41222	41222-60010	Plate, Rear Differential Ring Gear Set Bolt Lock
41231	41231-24010	Spacer, Rear Differential Drive Pinion Bearing
41252	41252-71040	Deflector, Dust (For Differential)
41302	90105-10570	Bolt(For Rear Differential Case)
41311	41301-60060	Case Sub-Assy, Rear Differential
41311	41301-60061	CASE SUBASSY
41311	41302-35020	Case Sub-Assy, Rear Differential
41311	90366-50007	Bearing(For Rear Differential Case)
41311	90366-75001	Bearing(For Rear Differential Case)
41315	41315-35020	Nut, Rear Differential Bearing Adjusting
41315	41315-60010	Nut, Rear Differential Bearing Adjusting
41316	41316-35010	Lock, Rear Differential Bearing Adjusting Nut
41351	41351-30060	Washer, Rear Differential Pinion Thrust
41361	41361-35310	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-35320	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-35330	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-35340	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-35350	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-60290	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-60300	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-60310	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-60320	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-60330	Washer, Rear Differential Side Gear Thrust, No.1
41371	41371-35020	Spider, Rear Differential
9161160814	91611-60814	Bolt

OEM	Part name	Category
41039-34060	Gear Kit, Differential, Rear	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41039-34080	Gear Kit, Differential, Rear	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41101-60091	Carrier Sub-Assy, Differential, Front	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41110-60B31	Carrier Assy, Differential, Front	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41110-60B71	Carrier Assy, Differential, Front	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41115-35010	Ring, Differential Oil Storage	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41201-80806	Final Gear Kit, Differential, Front	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41201-80807	Final Gear Kit, Differential, Front	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41204-35083	Flange Sub-Assy, Rear Drive Pinion Companion, Rear	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41214-60011	Slinger, Front Differential Drive Pinion Oil	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41222-35020	Plate, Rear Differential Ring Gear Set Bolt Lock	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41222-60010	Plate, Rear Differential Ring Gear Set Bolt Lock	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41231-24010	Spacer, Rear Differential Drive Pinion Bearing	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41252-71040	Deflector, Dust (For Differential)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41301-60060	Case Sub-Assy, Rear Differential	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41301-60061	CASE SUBASSY	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41302-35020	Case Sub-Assy, Rear Differential	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41315-35020	Nut, Rear Differential Bearing Adjusting	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41315-60010	Nut, Rear Differential Bearing Adjusting	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41316-35010	Lock, Rear Differential Bearing Adjusting Nut	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41351-30060	Washer, Rear Differential Pinion Thrust	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41361-35310	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41361-35320	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41361-35330	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41361-35340	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41361-35350	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41361-60290	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41361-60300	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41361-60310	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41361-60320	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41361-60330	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
41371-35020	Spider, Rear Differential	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90101-11353	Bolt (For Rear Differential Ring Gear Set)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90105-10570	Bolt(For Rear Differential Case)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90105-12053	Bolt (For Rear Differential Carrier)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90177-22003	Nut (For Rear Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35497	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35498	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35499	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35500	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35501	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35502	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35503	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35504	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35505	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35506	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35507	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35508	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35509	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35510	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35511	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35512	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35513	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35514	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35515	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35516	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35517	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90201-35518	Washer, Plate (For Rear Differential Drive Pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90311-41018	Seal, Oil (For Differential Carrier)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90366-30105	Bearing (For Rear Drive Pinion Front)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90366-35087	Bearing , Tapered Roller (for front drive pinion)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90366-50007	Bearing(For Rear Differential Case)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
90366-75001	Bearing(For Rear Differential Case)	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
91611-60814	Bolt	Front Axle Housing & Differential ([01.2007 - ] (0701- )VDJ76,79 ; (0701- )HZJ76,78,VDJ78. .ARL,GCC ; (0701- )FZJ79,GRJ79.. PIC..STD..GCC)
