Search › Model › VDJ76

VDJ76

Toyota LAND-CRUISER · 2007 · 3,863 parts · 209 categories

3,863 items

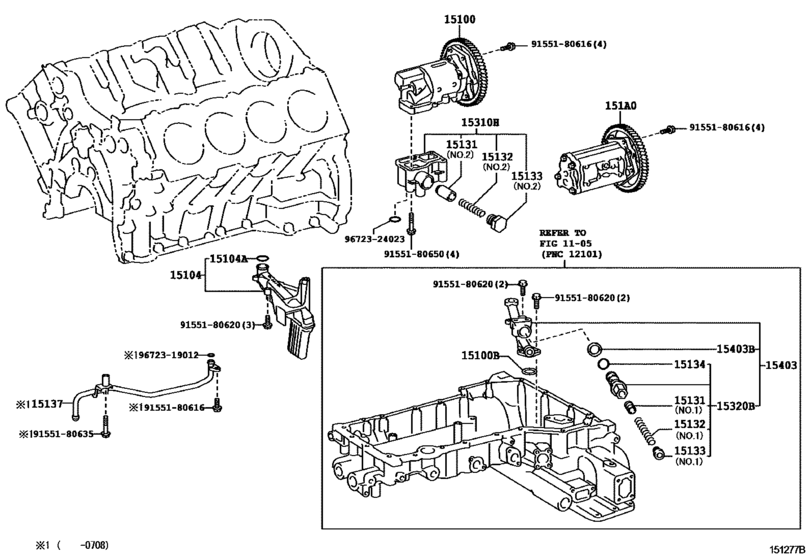

Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV) 22

#	OEM	Part name
15100	15100-51021	Pump Assy, Oil
15100	90301-24020	Ring, O(For Oil Pump)
15104	15104-51020	Strainer Sub-Assy, Oil
15104	90301-27013	Ring, O(For Oil Strainer)
15131	15131-51010	Valve, Oil Pump Relief
15131	15131-51020	Valve, Oil Pump Relief - OIL PUMP RELIEF(FOR OIL REGULATOR)
15132	15132-51010	Spring, Oil Pump Relief Valve
15132	15132-51020	Spring, Oil Pump Relief Valve - OIL PUMP RELIEF VALVE(FOR OIL REGULATOR)
15133	15133-51010	Plug, Oil Pump Relief Valve
15133	15133-51020	Plug, Oil Pump Relief Valve - OIL PUMP RELIEF VALVE(FOR OIL REGULATOR)
15134	15134-51010	Gasket, Oil Pump Relief Valve
15310	15310-51010	Regulator Assy, Oil
15320	15320-51020	Regulator Assy, Oil Pressure
15403	15403-51011	Pipe Sub-Assy, Oil Pump Outlet
15403	90430-27005	Gasket(For Cylinder Head Screw Plug)
9155180616	91551-80616	BOLT FLANGE
9155180620	91551-80620	Bolt
9155180635	91551-80635	Bolt(For Head To Camshaft Bearing Cap)
9155180650	91551-80650	BOLT FLANGE
9672319012	96723-19012	Ring, O(For Oil Level Gage Guide)
9672319012	90301-12018	Ring, O(For Oil Level Gage Guide)
9672324023	96723-24023	RING O

OEM	Part name	Category
15100-51021	Pump Assy, Oil	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
15104-51020	Strainer Sub-Assy, Oil	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
15131-51010	Valve, Oil Pump Relief	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
15131-51020	Valve, Oil Pump Relief - OIL PUMP RELIEF(FOR OIL REGULATOR)	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
15132-51010	Spring, Oil Pump Relief Valve	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
15132-51020	Spring, Oil Pump Relief Valve - OIL PUMP RELIEF VALVE(FOR OIL REGULATOR)	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
15133-51010	Plug, Oil Pump Relief Valve	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
15133-51020	Plug, Oil Pump Relief Valve - OIL PUMP RELIEF VALVE(FOR OIL REGULATOR)	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
15134-51010	Gasket, Oil Pump Relief Valve	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
15310-51010	Regulator Assy, Oil	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
15320-51020	Regulator Assy, Oil Pressure	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
15403-51011	Pipe Sub-Assy, Oil Pump Outlet	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
90301-12018	Ring, O(For Oil Level Gage Guide)	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
90301-24020	Ring, O(For Oil Pump)	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
90301-27013	Ring, O(For Oil Strainer)	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
90430-27005	Gasket(For Cylinder Head Screw Plug)	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
91551-80616	BOLT FLANGE	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
91551-80620	Bolt	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
91551-80635	Bolt(For Head To Camshaft Bearing Cap)	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
91551-80650	BOLT FLANGE	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
96723-19012	Ring, O(For Oil Level Gage Guide)	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
96723-24023	RING O	Engine Oil Pump ([01.2007 - ] (0701- )1VDFTV)
