Search › Model › VDJ76

VDJ76

Toyota LAND-CRUISER · 2007 · 3,863 parts · 209 categories

3,863 items

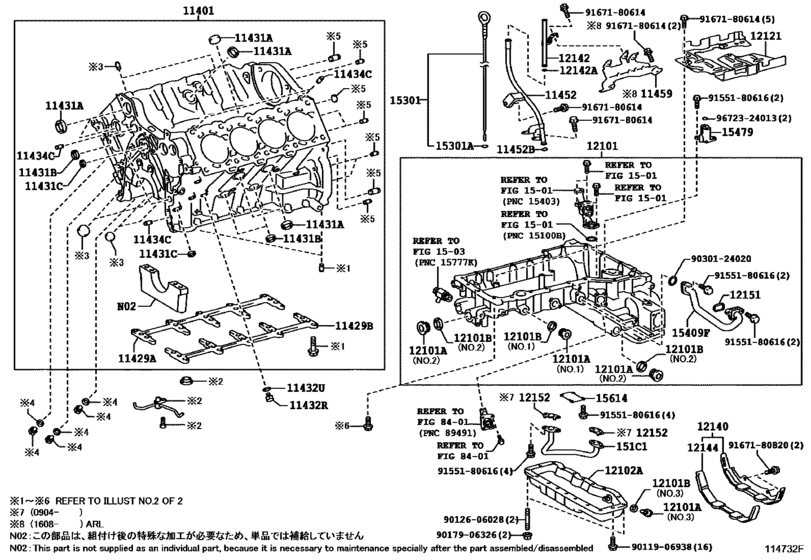

Cylinder Block ([01.2007 - ] (0701- )1VDFTV) 54

#	OEM	Part name
11401	11401-80768	Block Sub-Assy, Cylinder
11429	11429-51020	Plate, Cylinder Block Stiffening
11431	96411-63500	Plug, Tight
11431	96411-62500	Plug, Tight, No.1
11431	96411-61800	Tight Plug(For Oil Seal Retainer)
11432	90341-12011	Plug, W/head Straight Screw, No.1(For Cylinder Block)
11432	90430-12221	Gasket
11434	90250-08048	Pin, Straight (For Cylinder Head Set)
11434	90250-04122	Pin, Ring (For Cylinder Head Set) - STRAIGHT(FOR OIL PUMP SET)
11434	90250-10040	Pin, Ring (For Cylinder Head Set) - STRAIGHT(FOR TIMING GEAR COVER SET)
11434	90250-06013	Pin, Straight, No.1
11452	11452-51010	Guide, Oil Level Gage
11452	90301-12018	Ring, O(For Oil Level Gage Guide)
11497	11497-51010	Gasket, Cylinder Block Oil Hole
12101	12101-51021	Pan Sub-Assy, Oil
12101	90341-12012	Plug(For Oil Pan Drain)
12101	90341-T0004	Plug(For Oil Pan Drain)
12101	90341-20013	Plug, W/head Straight Screw, No.3(For Cylinder Block)
12101	90341-27006	Plug, W/head Straight Screw, No.1
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
12101	90430-20004	Gasket(For Cylinder Head Screw Plug)
12101	90430-27005	Gasket(For Cylinder Head Screw Plug)
12102	12102-51010	Pan Sub-Assy, Oil, No.2
12121	12121-51021	Plate, Oil Pan Baffle, No.1
12140	12140-51010	Cover, Oil Pan
12142	12142-51010	Guide, Oil Level Gage, No.2
12142	96721-19010	Ring, O(For Oil Level Gage Guide)
12144	12144-51010	Silencer, Oil Pan Cover
12151	12151-51020	Gasket, Oil Pan
12152	15472-51010	Gasket, Oil Pan, No.2
15301	15301-30070	Gage Sub-Assy, Oil Level
15301	96741-19005	O-Ring (For Oil Level Gage)
15409	15409-51010	Pipe Sub-Assy, Oil Filter Outlet
15479	15479-51010	Flange, Turbo Oil Pipe
15614	15614-51010	Cover, Oil Filter Element, Lower
15708	15708-51010	Nozzle Sub-Assy, Oil, No.1
9010510436	90105-10436	BOLT WASHER BASED
9011006018	90110-06018	Bolt(For Rear Steering Worm Control Cam)
9011906938	90119-06938	BOLT WWASHER
9012606028	90126-06028	Bolt, Stud(For Oil Pan)
9012608052	90126-08052	Bolt, Stud(For Oil Pan)
9017906326	90179-06326	NUT W-WASHER
9017906326	90182-A0010	New Genuine Part
9021007006	90210-07006	WASHER SEAL
9030124020	90301-24020	Ring, O(For Oil Pump)
9091002167	90910-02167	BOLT
9091002168	90910-02168	BOLT
9155180616	91551-80616	BOLT FLANGE
9155180830	91551-80830	Bolt, Compressor, No.2
9155180870	91551-80870	Bolt(For Cylinder Head Cover)
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)
9415180800	94151-80800	Nut (For Transmission Control Cable)
9672324013	96723-24013	RING O

OEM	Part name	Category
11401-80768	Block Sub-Assy, Cylinder	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
11429-51020	Plate, Cylinder Block Stiffening	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
11452-51010	Guide, Oil Level Gage	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
11497-51010	Gasket, Cylinder Block Oil Hole	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
12101-51021	Pan Sub-Assy, Oil	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
12102-51010	Pan Sub-Assy, Oil, No.2	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
12121-51021	Plate, Oil Pan Baffle, No.1	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
12140-51010	Cover, Oil Pan	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
12142-51010	Guide, Oil Level Gage, No.2	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
12144-51010	Silencer, Oil Pan Cover	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
12151-51020	Gasket, Oil Pan	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
15301-30070	Gage Sub-Assy, Oil Level	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
15409-51010	Pipe Sub-Assy, Oil Filter Outlet	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
15472-51010	Gasket, Oil Pan, No.2	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
15479-51010	Flange, Turbo Oil Pipe	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
15614-51010	Cover, Oil Filter Element, Lower	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
15708-51010	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90105-10436	BOLT WASHER BASED	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90110-06018	Bolt(For Rear Steering Worm Control Cam)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90119-06938	BOLT WWASHER	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90126-06028	Bolt, Stud(For Oil Pan)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90126-08052	Bolt, Stud(For Oil Pan)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90179-06326	NUT W-WASHER	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90182-A0010	New Genuine Part	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90210-07006	WASHER SEAL	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90250-04122	Pin, Ring (For Cylinder Head Set) - STRAIGHT(FOR OIL PUMP SET)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90250-06013	Pin, Straight, No.1	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90250-08048	Pin, Straight (For Cylinder Head Set)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90250-10040	Pin, Ring (For Cylinder Head Set) - STRAIGHT(FOR TIMING GEAR COVER SET)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90301-12018	Ring, O(For Oil Level Gage Guide)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90301-24020	Ring, O(For Oil Pump)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90341-12011	Plug, W/head Straight Screw, No.1(For Cylinder Block)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90341-12012	Plug(For Oil Pan Drain)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90341-20013	Plug, W/head Straight Screw, No.3(For Cylinder Block)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90341-27006	Plug, W/head Straight Screw, No.1	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90341-T0004	Plug(For Oil Pan Drain)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90430-12221	Gasket	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90430-20004	Gasket(For Cylinder Head Screw Plug)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90430-27005	Gasket(For Cylinder Head Screw Plug)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90910-02167	BOLT	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
90910-02168	BOLT	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
91551-80616	BOLT FLANGE	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
91551-80830	Bolt, Compressor, No.2	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
91551-80870	Bolt(For Cylinder Head Cover)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
91671-80820	Bolt (For Transmission Control Cable Bracket)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
94151-80800	Nut (For Transmission Control Cable)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
96411-61800	Tight Plug(For Oil Seal Retainer)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
96411-62500	Plug, Tight, No.1	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
96411-63500	Plug, Tight	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
96721-19010	Ring, O(For Oil Level Gage Guide)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
96723-24013	RING O	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)
96741-19005	O-Ring (For Oil Level Gage)	Cylinder Block ([01.2007 - ] (0701- )1VDFTV)

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 209
Collected: 2026-08-02
