Search › Model › VDJ76

VDJ76

Toyota LAND-CRUISER · 2007 · 3,863 parts · 209 categories

3,863 items

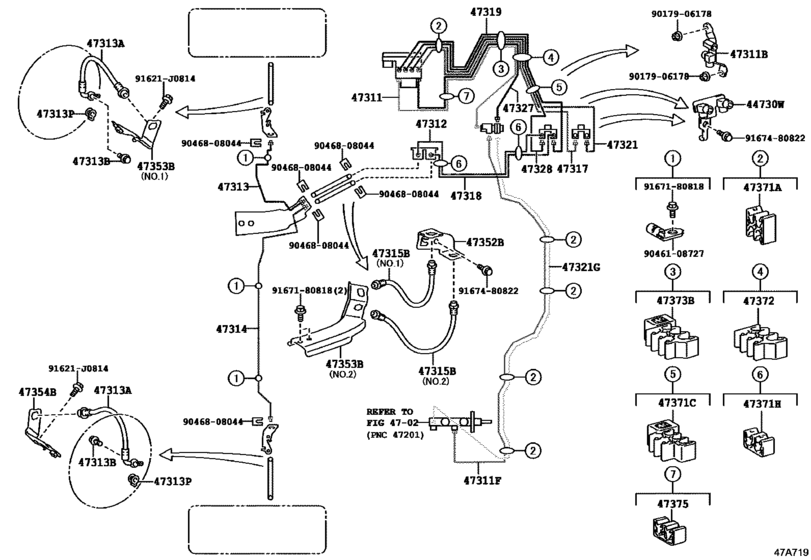

Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC) 37

#	OEM	Part name
44730	90412-10294	Way, 2(For Front Brake Tube)
47311	47312-60B30	Tube, Front Brake, No.1
47311	90412-12069	Way, No.1(For Front Brake Tube)
47311	47311-60710	Tube, Front Brake, Frame No.1
47312	47313-60521	Tube, Front Brake, No.2
47313	47314-60350	Tube, Front Brake, No.3
47313	47314-60351	TUBE FR BRAKE NO4
47313	90947-02G91	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47315-60610	Tube, Front Brake, No.4
47314	47315-60611	TUBE FR BRAKE NO5
47315	90947-02G94	Hose, Flexible(For Brake Tube)
47315	90947-02G96	Hose, Flexible(For Brake Tube)
47317	47317-60190	Tube, Front Brake, No.7
47318	47318-60161	Tube, Front Brake, No.8
47319	47319-60160	Tube, Front Brake, No.9
47321	47322-60D20	Tube, Rear Brake, No.1
47321	47321-60450	Tube, Rear Brake, Frame No.1
47327	47327-60240	Tube, Rear Brake, No.7
47328	47328-60040	Tube, Rear Brake, No.8
47352	47354-60160	Bracket, Flexible Hose, No.2
47353	47351-60300	Bracket, Flexible Hose, No.3
47353	47351-60311	Bracket, Flexible Hose, No.3
47354	47352-60190	Bracket, Flexible Hose, No.4
47371	90464-00876	Clamp, Brake Tube, No.1
47371	90949-01D45	Clamp, Brake Tube, No.7
47372	90949-01D52	Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.4
47373	90949-01E46	Clamp, Brake Tube, No.3
47375	90464-00920	Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.7
91621	91621-J0814	Bolt (For Transmission Control Cable Bracket)
9017906178	90179-06178	Nut (For Rear Wiper Arm Setting)
9046108727	90461-08727	CLAMP
9046808044	90468-08044	CLIP
9046808044	90468-08035	CLIP
9167180818	91671-80818	BOLT FLANGE
9167480822	91674-80822	BOLT FLANGE

OEM	Part name	Category
47311-60710	Tube, Front Brake, Frame No.1	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
47312-60B30	Tube, Front Brake, No.1	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
47313-60521	Tube, Front Brake, No.2	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
47314-60350	Tube, Front Brake, No.3	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
47314-60351	TUBE FR BRAKE NO4	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
47315-60610	Tube, Front Brake, No.4	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
47315-60611	TUBE FR BRAKE NO5	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
47317-60190	Tube, Front Brake, No.7	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
47318-60161	Tube, Front Brake, No.8	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
47319-60160	Tube, Front Brake, No.9	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
47321-60450	Tube, Rear Brake, Frame No.1	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
47322-60D20	Tube, Rear Brake, No.1	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
47327-60240	Tube, Rear Brake, No.7	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
47328-60040	Tube, Rear Brake, No.8	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
47351-60300	Bracket, Flexible Hose, No.3	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
47351-60311	Bracket, Flexible Hose, No.3	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
47352-60190	Bracket, Flexible Hose, No.4	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
47354-60160	Bracket, Flexible Hose, No.2	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
90179-06178	Nut (For Rear Wiper Arm Setting)	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
90412-10294	Way, 2(For Front Brake Tube)	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
90412-12069	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
90461-08727	CLAMP	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
90464-00876	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
90464-00920	Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.7	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
90468-08035	CLIP	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
90468-08044	CLIP	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
90947-02G91	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
90947-02G94	Hose, Flexible(For Brake Tube)	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
90947-02G96	Hose, Flexible(For Brake Tube)	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
90949-01D45	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
90949-01D52	Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.4	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
90949-01E46	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
91621-J0814	Bolt (For Transmission Control Cable Bracket)	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
91671-80818	BOLT FLANGE	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
91674-80822	BOLT FLANGE	Brake Tube & Clamp ([01.2017 - ] W(VSC) (1701- )VDJ7#..GCC)
