VDJ200

Toyota LAND-CRUISER · 2007 · 4,680 parts · 272 categories

← Back to categories

4,680 items

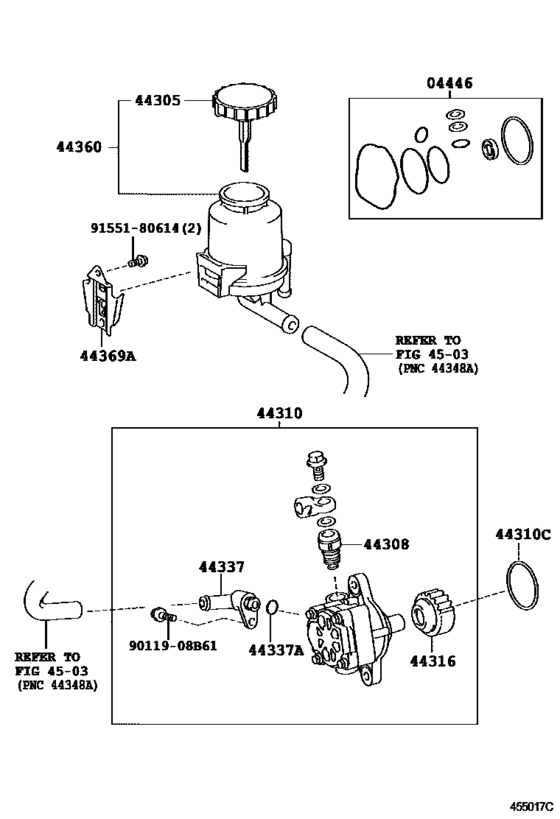

Vane Pump & Reservoir (Power Steering) ([09.2007 - ] (0709-1508)VDJ200..ARL..LUB ; (0709- )VDJ200. .GX,STD ; (0709- )VDJ200..GXR,VX ,VXR..GCC,GEN) 12

#	OEM	Part name
4446	04446-60270	Gasket Kit, Power Steering Pump
44305	44305-37031	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-60180	Union Sub-Assy, Pressure Port
44310	44310-60530	Pump Assy, Vane
44310	90301-60002	Ring, O(For Vane Pump)
44316	44316-60080	Gear, Vane Pump
44337	44337-60230	Union, Power Steering Suction Port
44337	90301-15025	Ring, O(For Power Steering Suction Port)
44360	44360-60301	Reservoir Assy, Vane Pump Oil
44369	44390-60030	Bracket, Oil Reservoir, No.1
9011908	90119-08B61	New Genuine Part
9155180614	91551-80614	Bolt(For Vacuum Transmitting Pipe)

OEM	Part name	Category
04446-60270	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([09.2007 - ] (0709-1508)VDJ200..ARL..LUB ; (0709- )VDJ200. .GX,STD ; (0709- )VDJ200..GXR,VX ,VXR..GCC,GEN)
44305-37031	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([09.2007 - ] (0709-1508)VDJ200..ARL..LUB ; (0709- )VDJ200. .GX,STD ; (0709- )VDJ200..GXR,VX ,VXR..GCC,GEN)
44308-60180	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([09.2007 - ] (0709-1508)VDJ200..ARL..LUB ; (0709- )VDJ200. .GX,STD ; (0709- )VDJ200..GXR,VX ,VXR..GCC,GEN)
44310-60530	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([09.2007 - ] (0709-1508)VDJ200..ARL..LUB ; (0709- )VDJ200. .GX,STD ; (0709- )VDJ200..GXR,VX ,VXR..GCC,GEN)
44316-60080	Gear, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.2007 - ] (0709-1508)VDJ200..ARL..LUB ; (0709- )VDJ200. .GX,STD ; (0709- )VDJ200..GXR,VX ,VXR..GCC,GEN)
44337-60230	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([09.2007 - ] (0709-1508)VDJ200..ARL..LUB ; (0709- )VDJ200. .GX,STD ; (0709- )VDJ200..GXR,VX ,VXR..GCC,GEN)
44360-60301	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([09.2007 - ] (0709-1508)VDJ200..ARL..LUB ; (0709- )VDJ200. .GX,STD ; (0709- )VDJ200..GXR,VX ,VXR..GCC,GEN)
44390-60030	Bracket, Oil Reservoir, No.1	Vane Pump & Reservoir (Power Steering) ([09.2007 - ] (0709-1508)VDJ200..ARL..LUB ; (0709- )VDJ200. .GX,STD ; (0709- )VDJ200..GXR,VX ,VXR..GCC,GEN)
90119-08B61	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([09.2007 - ] (0709-1508)VDJ200..ARL..LUB ; (0709- )VDJ200. .GX,STD ; (0709- )VDJ200..GXR,VX ,VXR..GCC,GEN)
90301-15025	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([09.2007 - ] (0709-1508)VDJ200..ARL..LUB ; (0709- )VDJ200. .GX,STD ; (0709- )VDJ200..GXR,VX ,VXR..GCC,GEN)
90301-60002	Ring, O(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([09.2007 - ] (0709-1508)VDJ200..ARL..LUB ; (0709- )VDJ200. .GX,STD ; (0709- )VDJ200..GXR,VX ,VXR..GCC,GEN)
91551-80614	Bolt(For Vacuum Transmitting Pipe)	Vane Pump & Reservoir (Power Steering) ([09.2007 - ] (0709-1508)VDJ200..ARL..LUB ; (0709- )VDJ200. .GX,STD ; (0709- )VDJ200..GXR,VX ,VXR..GCC,GEN)
