VDJ200

Toyota LAND-CRUISER · 2007 · 4,680 parts · 272 categories
VDJ200 ×

← Back to categories

4,680 items

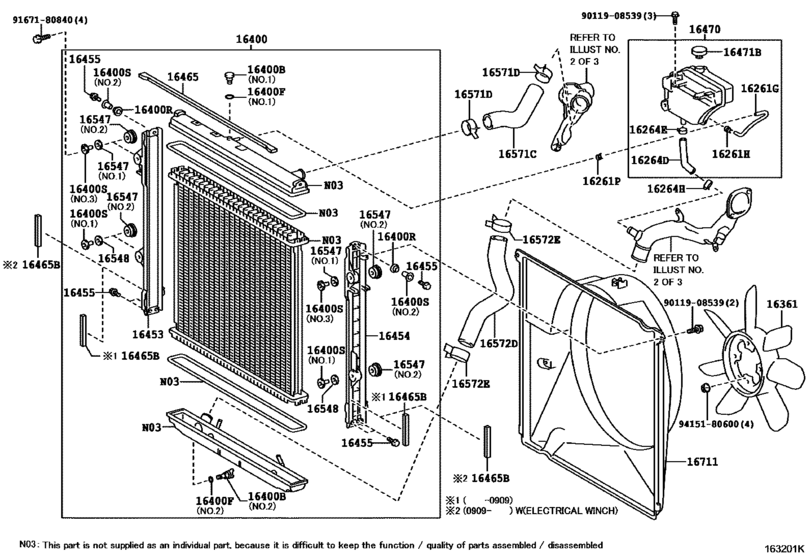

Radiator & Water Outlet ([09.2007 - ] (0709- )1VDFTV) 52
#OEMPart name
16027 16027-51021 Pipe Sub-Assy, Turbo Water, No.1
16028 16028-51010 Pipe Sub-Assy, Turbo Water, No.2
16029 16029-51011 Pipe Sub-Assy, Turbo Water, No.3
16206 16206-51020 Pipe Sub-Assy, Water By-Pass
16207 16207-51010 Pipe Sub-Assy, Water By-Pass, No.2
16261 16261-51041 Hose, Water By-Pass, No.1
16261 90467-15022 Clip Or Clamp(For Ventilation Hose)
16261 96136-51901 Clip(For Water By-Pass Hose No.2)
16264 16264-51040 Hose, Water By-Pass, No.2
16264 96136-42501 Clip(For Ventilation Hose)
16281 90401-12023 Bolt, Union(For Fuel Pipe)
16284 16284-51020 Hose, Turbo Water, No.1
16284 96136-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)
16285 16285-51020 Hose, Turbo Water, No.2
16286 99556-10185 Hose, Water By-Pass, No.3
16286 99556-10200 Hose, Turbo Water, No.2
16287 16285-51010 Hose, Turbo Water, No.2 - TURBO WATER, NO.4
16347 16347-27020 Gasket, Water By-Pass
16355 16355-51011 Joint, Water By-Pass, Front
16361 16361-50110 Fan
16400 16400-51041 Radiator Assy
16400 16417-30170 Cock Sub-Assy, Radiator Drain
16400 16417-51030 Cock
16400 16418-15520 Packing(For Radiator Drain Cock)
16400 16418-51030 Packing
16400 16444-50370 Bushing(For Radiator)
16400 16445-31570 Collar(For Radiator)
16400 16445-50370 Collar(For Radiator)
16400 16445-50380 Collar(For Radiator)
16453 16453-50370 Plate, Radiator Side
16454 16454-50370 Plate, Radiator Side
16455 16455-50370 Bolt, Radiator Side Support Plate
16465 16465-50370 Packing, Radiator
16465 16466-50370 Packing, Radiator, No.2
16470 16470-51023 Tank Assy, Radiator Reserve
16471 16475-28140 Cap Sub-Assy, Radiator Reserve Tank
16547 16547-50370 Bush, Radiator Support, No.1
16547 16547-50381 Bush, Radiator Support, No.1
16548 16548-50370 Bush, Radiator Support, No.2
16571 16571-51030 Hose, Radiator, No.1
16571 96136-54801 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-51030 Hose, Radiator, No.2
16572 90467-43002 Clamp Or Clip, Hose(For Radiator Inlet)
16711 16711-51021 Shroud, Fan
9011908539 90119-08539 BOLT
9043012025 90430-12025 Gasket(For Turbo Oil Inlet Pipe)
9043012037 90430-12037 Gasket(For Union Bolt No.1)
9167180614 91671-80614 Bolt (For Transmission Control Cable Bracket)
9167180840 91671-80840 BOLT FLANGE
9212280614 92122-80614 BOLTSTUD
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
9418560600 94185-60600 Nut, Wire Adjusting, No.1
