Search › Model › VDJ200
VDJ200

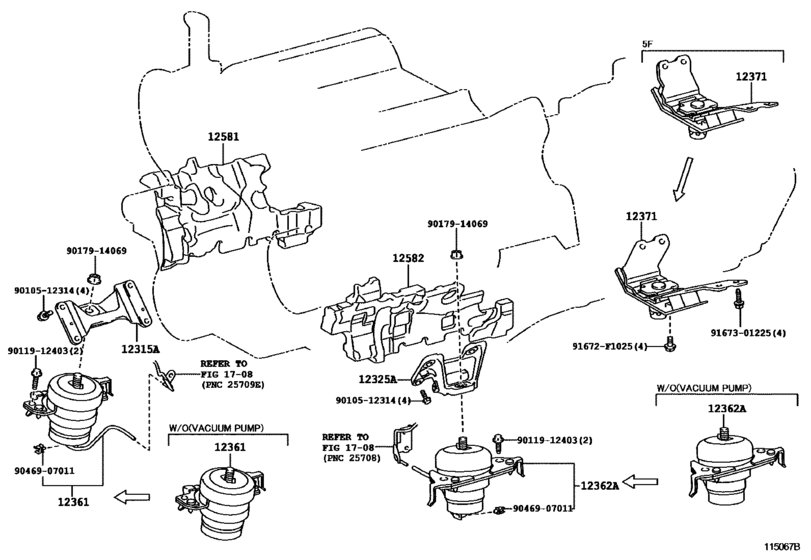

Mounting ([09.2007 - ] (0709- )1VDFTV) 13
| # | OEM | Part name |
|---|---|---|
| 12315 | 12315-51030 | Bracket, Engine Mounting, Rh(For Transverse Engine) |
| 12325 | 12325-51020 | Bracket, Engine Mounting, Lh(For Transverse Engine) |
| 12361 | 12361-51030 | Insulator, Engine Mounting, Front |
| 12362 | 12362-51010 | Insulator, Engine Mounting, Front Lh |
| 12371 | 12371-51070 | Insulator, Engine Mounting, Rear No.1 |
| 12581 | 12581-51011 | Insulator, Cylinder Block, No.1 |
| 12582 | 12582-51011 | Insulator, Cylinder Block, No.2 |
| 91672 | 91672-F1025 | BOLT FLANGE |
| 9010512314 | 90105-12314 | Bolt, Hexagon(For Front Disc Brake Caliper) |
| 9011912403 | 90119-12403 | BOLT WWASHER |
| 9017914069 | 90179-14069 | Nut |
| 9046907011 | 90469-07011 | Clamp No.1 (For Windseield Washer) |
| 9167301225 | 91673-01225 | BOLT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 12315-51030 | Bracket, Engine Mounting, Rh(For Transverse Engine) | Mounting ([09.2007 - ] (0709- )1VDFTV) |
| 12325-51020 | Bracket, Engine Mounting, Lh(For Transverse Engine) | Mounting ([09.2007 - ] (0709- )1VDFTV) |
| 12361-51030 | Insulator, Engine Mounting, Front | Mounting ([09.2007 - ] (0709- )1VDFTV) |
| 12362-51010 | Insulator, Engine Mounting, Front Lh | Mounting ([09.2007 - ] (0709- )1VDFTV) |
| 12371-51070 | Insulator, Engine Mounting, Rear No.1 | Mounting ([09.2007 - ] (0709- )1VDFTV) |
| 12581-51011 | Insulator, Cylinder Block, No.1 | Mounting ([09.2007 - ] (0709- )1VDFTV) |
| 12582-51011 | Insulator, Cylinder Block, No.2 | Mounting ([09.2007 - ] (0709- )1VDFTV) |
| 90105-12314 | Bolt, Hexagon(For Front Disc Brake Caliper) | Mounting ([09.2007 - ] (0709- )1VDFTV) |
| 90119-12403 | BOLT WWASHER | Mounting ([09.2007 - ] (0709- )1VDFTV) |
| 90179-14069 | Nut | Mounting ([09.2007 - ] (0709- )1VDFTV) |
| 90469-07011 | Clamp No.1 (For Windseield Washer) | Mounting ([09.2007 - ] (0709- )1VDFTV) |
| 91672-F1025 | BOLT FLANGE | Mounting ([09.2007 - ] (0709- )1VDFTV) |
| 91673-01225 | BOLT FLANGE | Mounting ([09.2007 - ] (0709- )1VDFTV) |
