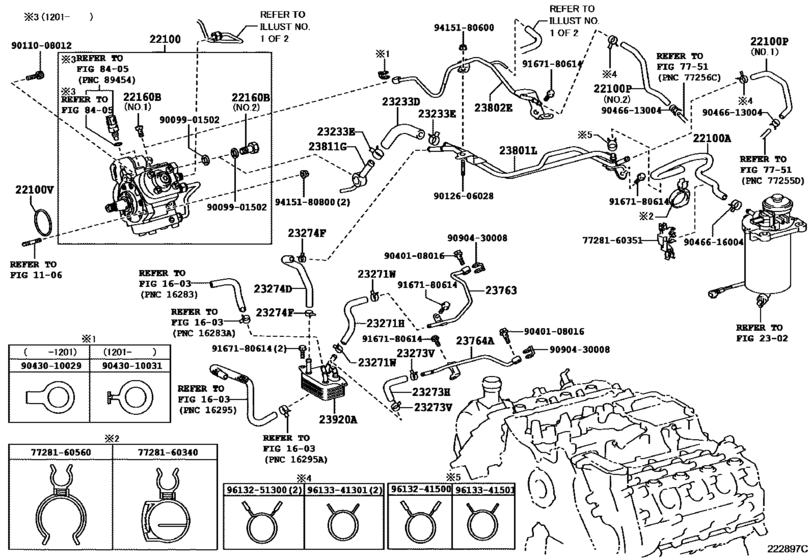

| 22100-51042 |
Pump Assy, Injection Or Supply |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 23233-51011 |
Hose, Fuel Pump |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 23271-51030 |
Hose, Fuel, No.1 |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 23271-51050 |
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter) |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 23273-51020 |
Hose, Fuel, No.2 |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 23273-51041 |
Hose, Fuel(For Fuel Pipe To Fuel Tube) |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 23274-51020 |
Hose, Fuel, No.3 |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 23274-51030 |
Hose, Fuel(For Fuel Pipe To Fuel Tube) |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 23763-51010 |
Pipe, Nozzle Leakage, No.3 |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 23764-51010 |
Pipe, Nozzle Leakage, No.4 |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 23801-51020 |
Pipe Sub-Assy, Fuel(For Fuel Filter To Injection Pump) |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 23802-51020 |
Pipe Sub-Assy, Fuel |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 23811-51010 |
Pipe, Fuel, No.1 |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 23920-51020 |
Cooler Assy, Fuel |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 77281-60340 |
Bracket, Fuel Main Tube, No.1 |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 77281-60351 |
Bracket, Fuel Main Tube, No.1 |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 77281-60560 |
Bracket, Fuel Main Tube, No.1 |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 90099-01502 |
Washer(For Inlet Follow Screw) |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 90099-18005 |
Screw, Fuel Inlet Follow |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 90099-18010 |
Screw, Fuel Pipe Follow |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 90110-08012 |
Bolt(For Power Steering Pressure Control Valve) |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 90126-06028 |
Bolt, Stud(For Oil Pan) |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 90301-49003 |
Gasket, Injection Pump |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 90401-08016 |
Bolt, Union(For Nozzle Leakage Pipe) |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 90430-10029 |
GASKET |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 90430-10031 |
Gasket |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 90466-13004 |
Clip(For Fuel Vapor Feed Hose, No.1) |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 90466-16004 |
Clip(For Ventilation Hose No.2) |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 90904-30008 |
Gasket |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 91671-80614 |
Bolt (For Transmission Control Cable Bracket) |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 94151-80600 |
Nut, Cap(For Cylinder Head Cover) |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 94151-80800 |
Nut (For Transmission Control Cable) |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 96132-41500 |
Clip(For Ventilation Tube) |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 96132-51300 |
Clip(For Ventilation Hose No.2) |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 96133-41301 |
Clip(For Fuel Vapor Feed Hose, No.2) |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 96133-41501 |
Clip(For Air Hose No.3) |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
| 96137-41501 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Injection Pump Assembly ([09.2007 - ] EXCEPT EUROPE STEP5,W/O(FUELHEATER) (0709- )1VDFTV) |
