Search › Model › VDJ200
VDJ200

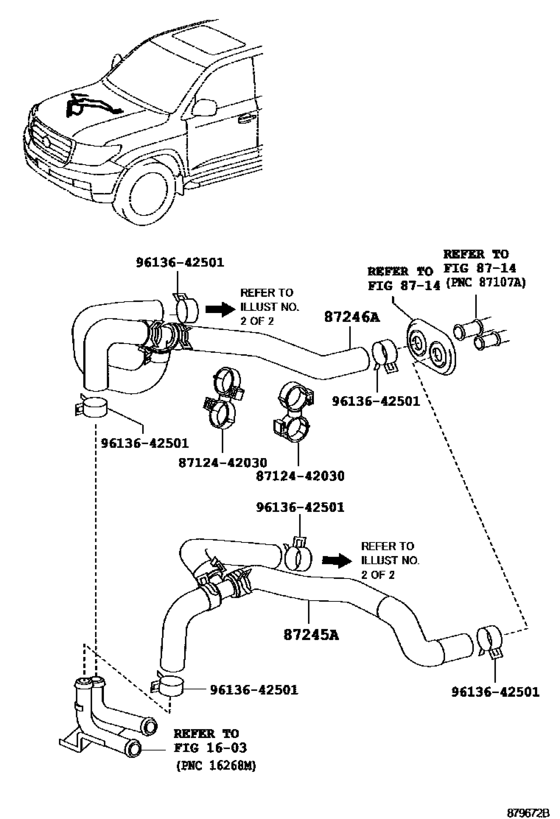

Heating & Air Conditioning - Water Piping ([09.2007 - ] FRONT,W(REAR HEATER) (0709- )VDJ200) 4
| # | OEM | Part name |
|---|---|---|
| 87245 | 87245-60C10 | Hose, Heater Water, Inlet A |
| 87246 | 87245-60C20 | Hose, Heater Water, Outlet A |
| 8712442030 | 87124-42030 | Clamp, Heater |
| 9613642501 | 96136-42501 | Clip(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 87124-42030 | Clamp, Heater | Heating & Air Conditioning - Water Piping ([09.2007 - ] FRONT,W(REAR HEATER) (0709- )VDJ200) |
| 87245-60C10 | Hose, Heater Water, Inlet A | Heating & Air Conditioning - Water Piping ([09.2007 - ] FRONT,W(REAR HEATER) (0709- )VDJ200) |
| 87245-60C20 | Hose, Heater Water, Outlet A | Heating & Air Conditioning - Water Piping ([09.2007 - ] FRONT,W(REAR HEATER) (0709- )VDJ200) |
| 96136-42501 | Clip(For Ventilation Hose) | Heating & Air Conditioning - Water Piping ([09.2007 - ] FRONT,W(REAR HEATER) (0709- )VDJ200) |
