Search › Model › VCV15

VCV15

Toyota SCEPTER · 1992 · 6,500 parts · 221 categories

6,500 items

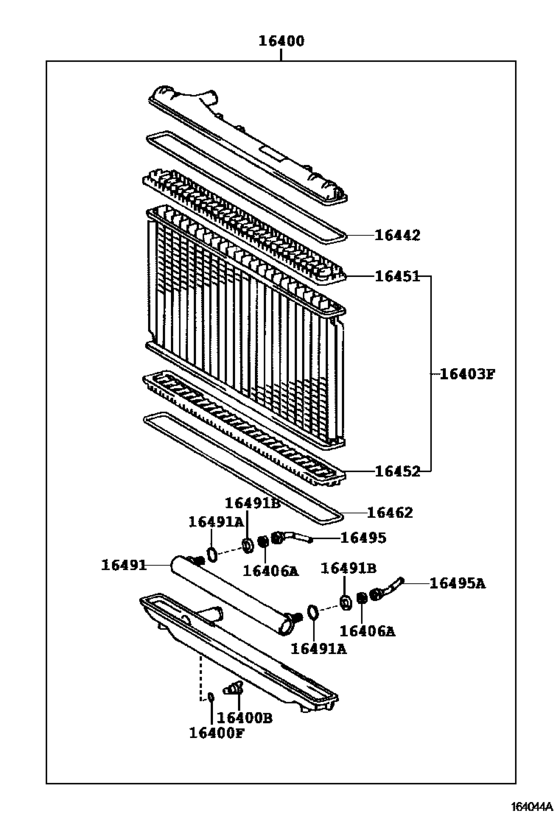

Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE) 28

#	OEM	Part name
16400	16400-07070	Radiator Assy
16400	16400-07071	Radiator Assy
16400	23322-54010	Plug,air(For Oil Cooler Drain Cock)
16400	90080-34002	Plug, Radiator Drain Cock
16400	90080-30011	Packing(For Radiator Drain Cock)
16400	96711-19007	Packing(For Radiator Drain Cock)
16400	16400-07040	Radiator Assy
16403	16403-03020	Core Sub-Assy, Radiator
16406	16406-03010	Support(For Oil Cooler)
16406	16406-62060	Support(For Oil Cooler)
16442	16442-03010	Ring, O(For Radiator Upper Tank)
16442	16442-74760	Ring, O(For Radiator Upper Tank)
16451	16451-03010	Plate, Radiator Core, Upper
16451	16451-74760	Plate, Radiator Core, Upper
16452	16452-03010	Plate, Radiator Core, Lower
16452	16452-74760	Plate, Radiator Core, Lower
16462	16462-03010	Ring, O(For Radiator Lower Tank)
16462	16462-46040	Ring, O(For Radiator Upper Tank)
16491	16491-03010	Cooler, Oil(For Atm)
16491	16491-0A020	Cooler, Oil(For Atm)
16491	16492-03010	Ring, O(For Atm Oil Cooler)
16491	16492-50020	Ring, O(For Atm Oil Cooler)
16491	16493-03010	Washer, Plate(For Atm Oil Cooler)
16491	16493-62060	Washer, Plate(For Atm Oil Cooler)
16495	16495-03010	Nut, Flare(For Atm Oil Cooler)
16495	16495-0A040	Nut, Flare(For Atm Oil Cooler)
16495	16495-03030	Nut, Flare, No.2(For Atm Oil Cooler)
16495	16495-03050	Nut, Flare, No.2(For Atm Oil Cooler)

OEM	Part name	Category
16400-07040	Radiator Assy	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16400-07070	Radiator Assy	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16400-07071	Radiator Assy	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16403-03020	Core Sub-Assy, Radiator	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16406-03010	Support(For Oil Cooler)	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16406-62060	Support(For Oil Cooler)	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16442-03010	Ring, O(For Radiator Upper Tank)	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16442-74760	Ring, O(For Radiator Upper Tank)	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16451-03010	Plate, Radiator Core, Upper	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16451-74760	Plate, Radiator Core, Upper	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16452-03010	Plate, Radiator Core, Lower	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16452-74760	Plate, Radiator Core, Lower	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16462-03010	Ring, O(For Radiator Lower Tank)	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16462-46040	Ring, O(For Radiator Upper Tank)	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16491-03010	Cooler, Oil(For Atm)	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16491-0A020	Cooler, Oil(For Atm)	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16492-03010	Ring, O(For Atm Oil Cooler)	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16492-50020	Ring, O(For Atm Oil Cooler)	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16493-03010	Washer, Plate(For Atm Oil Cooler)	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16493-62060	Washer, Plate(For Atm Oil Cooler)	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16495-03010	Nut, Flare(For Atm Oil Cooler)	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16495-03030	Nut, Flare, No.2(For Atm Oil Cooler)	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16495-03050	Nut, Flare, No.2(For Atm Oil Cooler)	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
16495-0A040	Nut, Flare(For Atm Oil Cooler)	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
23322-54010	Plug,air(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
90080-30011	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
90080-34002	Plug, Radiator Drain Cock	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
96711-19007	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([08.1993 - ] (9308- )3VZFE)
