VCV15

Toyota SCEPTER · 1992 · 6,500 parts · 221 categories
VCV15 ×

← Back to categories

6,500 items

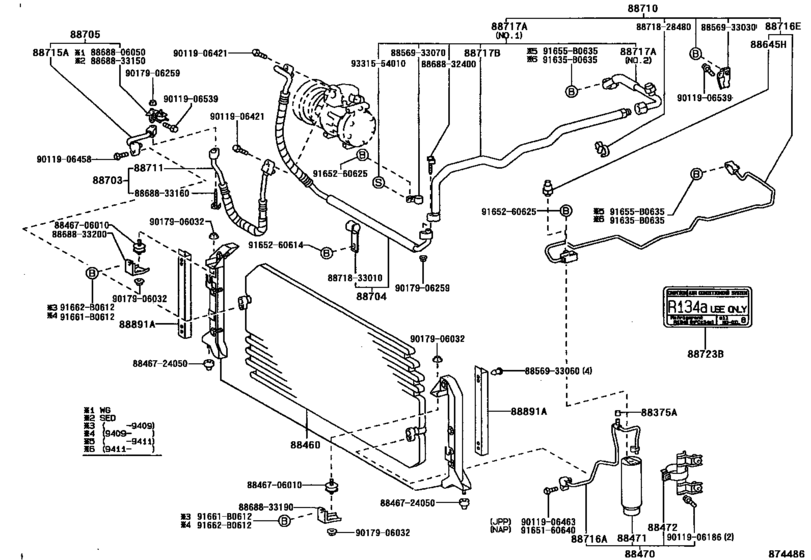

Heating & Air Conditioning - Cooler Piping ([08.1994 - 08.1996] (9408-9608)VCV15) 77
#OEMPart name
88375 88375-02020 Cap, Service Valve (For Cooler Pipe)
88375 88375-20010 Cap, Service Valve (For Cooler Pipe)
88460 88460-33040 Condenser Assy, Cooler
88460 88460-33030 Condenser Assy, Cooler
88460 88460-06010 Condenser Assy, Cooler
88470 88470-06020 Receiver & Dryer Assy, Cooler
88470 88470-33020 Receiver & Dryer Assy, Cooler
88470 88470-06010 Receiver & Dryer Assy, Cooler
88471 88471-06020 Tank, Receiver Air Conditioner
88471 88471-06010 Tank, Receiver Air Conditioner
88472 88473-33040 Bracket, Receiver Tank, No.1
88472 88473-06010 Bracket, Receiver Tank, No.1
88472 88473-06020 Bracket, Receiver Tank, No.1
88645 88645-20050 Switch, Pressure
88645 88645-20040 Switch, Pressure No.1
88703 88703-06040 Hose Sub-Assy, Discharge
88703 88703-33090 Hose Sub-Assy, Discharge
88703 88703-06020 Hose Sub-Assy, Discharge
88704 88704-33080 Hose Sub-Assy, Suction
88704 88704-33020 Hose Sub-Assy, Suction
88705 88705-06020 Pipe Sub-Assy, Discharge
88705 88705-33020 Pipe Sub-Assy, Discharge
88705 88705-06010 Pipe Sub-Assy, Discharge
88710 88710-33050 Tube Assy, Air Conditioner
88710 88710-33051 Tube Assy, Air Conditioner
88710 88710-33030 Tube Assy, Air Conditioner
88711 88711-06050 Hose, Cooler Refrigerant Discharge, No.1
88715 88715-06020 Pipe, Cooler Refrigerant Discharge, A
88715 88715-33010 Pipe, Cooler Refrigerant Discharge, A
88715 88715-06010 Pipe, Cooler Refrigerant Discharge, A
88716 88716-06040 Pipe, Cooler Refrigerant Liquid, A
88716 88716-07020 Pipe, Cooler Refrigerant Liquid, A
88716 88716-33090 Pipe, Cooler Refrigerant Liquid, E
88716 88716-06030 Pipe, Cooler Refrigerant Liquid, A
88716 88716-33010 Pipe, Cooler Refrigerant Liquid, E
88717 88717-33070 Pipe, Cooler Refrigerant Suction, A
88717 88717-33010 Pipe, Cooler Refrigerant Suction, A
88723 88723-14010 Label, Cooler Service Caution
88723 88723-06010 Label, Cooler Service Caution
88723 88723-33010 Label, Cooler Service Caution
88891 88578-33010 Packing A (For Cooler)
91635 91635-B0635 BOLT WWASHER
91635 91631-B0630 BOLT WWASHER
91655 91655-B0635 New Genuine Part
91655 90119-06487 New Genuine Part
91661 91661-B0612 New Genuine Part
91662 91662-B0612 New Genuine Part
8846706010 88467-06010 Cushion, Cooler Condenser, No.1
8846706010 88467-95704 Cushion, Cooler Condenser, No.1
8846724050 88467-24050 Cushion, Cooler Condenser, No.1
8856933030 88569-33030 Clamp (for Cooler Relay)
8856933060 88569-33060 Clamp (for Cooler Relay)
8856933070 88569-33070 Clamp (for Cooler Relay)
8868806050 88688-06050 Bracket, Cooler Diaphragm
8868806050 88688-33150 Bracket, Cooler Diaphragm
8868832400 88688-32400 Bracket, Cooler Diaphragm
8868833160 88688-33160 Bracket, Cooler Diaphragm
8868833190 88688-33190 Bracket, Cooler Diaphragm
8868833200 88688-33200 Bracket, Cooler Diaphragm
8871828480 88718-28480 Pipe, Cooler Refrigerant Suction, No.2
8871833010 88718-33010 Pipe, Cooler Refrigerant Suction, No.2
9011906186 90119-06186 BOLT
9011906186 90119-06420 BOLT WWASHER
9011906421 90119-06421 New Genuine Part
9011906458 90119-06458 New Genuine Part
9011906463 90119-06463 New Genuine Part
9011906539 90119-06539 New Genuine Part
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9017906259 90179-06259 New Genuine Part
9017906259 90179-06292 NUT
9165160640 91651-60640 Bolt, Rear Body Mounting
9165160640 91651-B0640 Bolt, Rear Body Mounting
9165260614 91652-60614 New Genuine Part
9165260625 91652-60625 New Genuine Part
9165260625 91651-60625 New Genuine Part
9331554010 93315-54010 SCREW WWASHER
