Search › Model › VCV10
VCV10

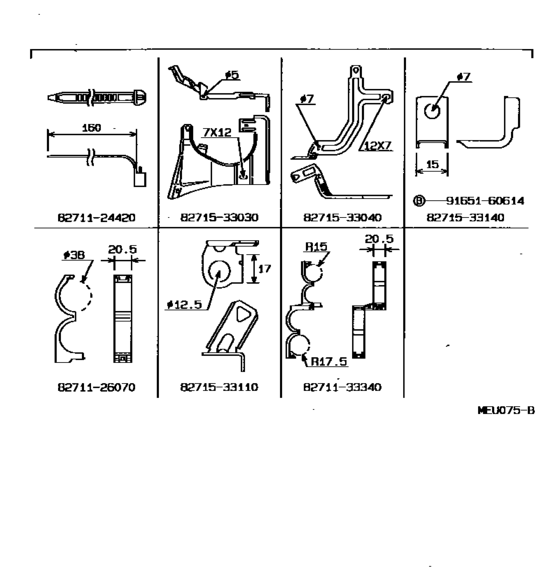

Wiring & Clamp ([07.1992 - 08.1996] ENGINE WIRE CLAMP (9207-9608)) 8
| # | OEM | Part name |
|---|---|---|
| 8271124420 | 82711-24420 | Wire, Fuse To Fuse(for Combustion Heater) |
| 8271126070 | 82711-26070 | Wire, Fuse To Fuse(for Combustion Heater) |
| 8271133340 | 82711-33340 | Wire, Fuse To Fuse(for Combustion Heater) |
| 8271533030 | 82715-33030 | Bracket,wiring Harness Clamp |
| 8271533040 | 82715-33040 | Bracket,wiring Harness Clamp |
| 8271533110 | 82715-33110 | Bracket,wiring Harness Clamp |
| 8271533140 | 82715-33140 | Bracket,wiring Harness Clamp |
| 9165160614 | 91651-60614 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 82711-24420 | Wire, Fuse To Fuse(for Combustion Heater) | Wiring & Clamp ([07.1992 - 08.1996] ENGINE WIRE CLAMP (9207-9608)) |
| 82711-26070 | Wire, Fuse To Fuse(for Combustion Heater) | Wiring & Clamp ([07.1992 - 08.1996] ENGINE WIRE CLAMP (9207-9608)) |
| 82711-33340 | Wire, Fuse To Fuse(for Combustion Heater) | Wiring & Clamp ([07.1992 - 08.1996] ENGINE WIRE CLAMP (9207-9608)) |
| 82715-33030 | Bracket,wiring Harness Clamp | Wiring & Clamp ([07.1992 - 08.1996] ENGINE WIRE CLAMP (9207-9608)) |
| 82715-33040 | Bracket,wiring Harness Clamp | Wiring & Clamp ([07.1992 - 08.1996] ENGINE WIRE CLAMP (9207-9608)) |
| 82715-33110 | Bracket,wiring Harness Clamp | Wiring & Clamp ([07.1992 - 08.1996] ENGINE WIRE CLAMP (9207-9608)) |
| 82715-33140 | Bracket,wiring Harness Clamp | Wiring & Clamp ([07.1992 - 08.1996] ENGINE WIRE CLAMP (9207-9608)) |
| 91651-60614 | Bolt | Wiring & Clamp ([07.1992 - 08.1996] ENGINE WIRE CLAMP (9207-9608)) |
