Search › Model › VCV10

VCV10

Toyota SCEPTER · 1992 · 5,601 parts · 184 categories

5,601 items

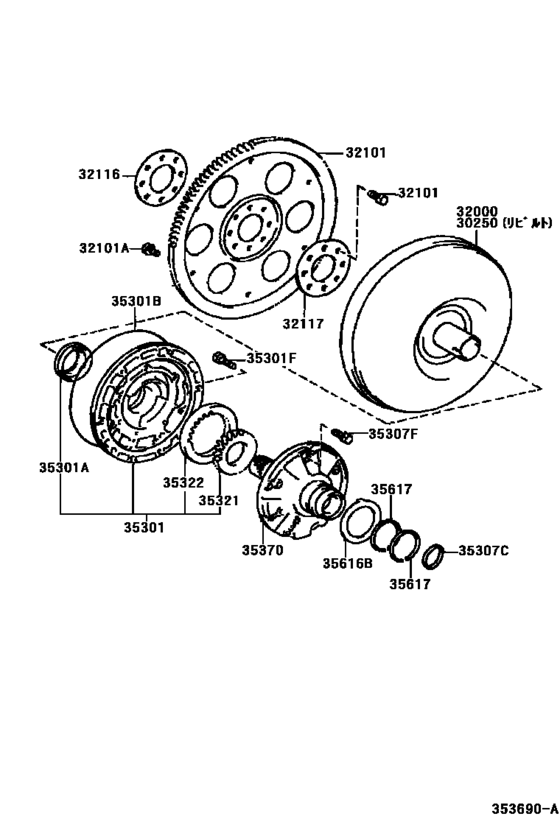

Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- )) 29

#	OEM	Part name
30250	30250-33010	Converter Assy, Torque, Rebuilt
32000	32000-33010	Converter Assy, Torque
32101	32101-32080	Gear Sub-Assy, Drive Plate & Ring
32101	90119-09018	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-09025	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-09019	Bolt(For Drive Plate & Torque Converter Setting)
32101	90109-09001	Bolt(For Drive Plate & Torque Converter Setting)
32116	32116-32020	Spacer, Drive Plate, Front
32117	32117-32020	Spacer, Drive Plate, Rear
35301	35035-32030	Body Sub-Assy, Front Oil Pump
35301	90311-38020	Seal, Oil (For Front Oil Pump)
35301	90301-99024	Ring, O (For Front Oil Pump Body)
35301	90105-08050	Bolt (For Overdrive Case & Transaxle Case Setting)
35307	90119-06180	Bolt (For Stator Shaft)
35307	90119-06808	Bolt (For Stator Shaft)
35307	90119-06559	Bolt (For Stator Shaft)
35321	35321-12020	Gear, Front Oil Pump Drive
35321	35321-12030	Gear, Front Oil Pump Drive
35321	35321-12040	Gear, Front Oil Pump Drive
35321	35321-12050	Gear, Front Oil Pump Drive
35321	35321-12060	Gear, Front Oil Pump Drive
35322	35322-12010	Gear, Front Oil Pump Driven
35322	35322-12020	Gear, Front Oil Pump Driven
35322	35322-12030	Gear, Front Oil Pump Driven
35322	35322-12040	Gear, Front Oil Pump Driven
35322	35322-12050	Gear, Front Oil Pump Driven
35370	35370-33010	Shaft Assy, Stator
35616	35616-32010	Washer, Clutch Drum Thrust (For Stator Shaft)
35617	35617-32011	Ring, Clutch Drum Oil Seal

OEM	Part name	Category
30250-33010	Converter Assy, Torque, Rebuilt	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
32000-33010	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
32101-32080	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
32116-32020	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
32117-32020	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
35035-32030	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
35321-12020	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
35321-12030	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
35321-12040	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
35321-12050	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
35321-12060	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
35322-12010	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
35322-12020	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
35322-12030	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
35322-12040	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
35322-12050	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
35370-33010	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
35616-32010	Washer, Clutch Drum Thrust (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
35617-32011	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
90105-08050	Bolt (For Overdrive Case & Transaxle Case Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
90109-09001	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
90119-06180	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
90119-06559	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
90119-06808	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
90119-09018	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
90119-09019	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
90119-09025	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
90301-99024	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
90311-38020	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([07.1992 - ] (9207- ))
