Search › Model › VCV10

VCV10

Toyota SCEPTER · 1992 · 5,601 parts · 184 categories
VCV10 ×

← Back to categories

5,601 items

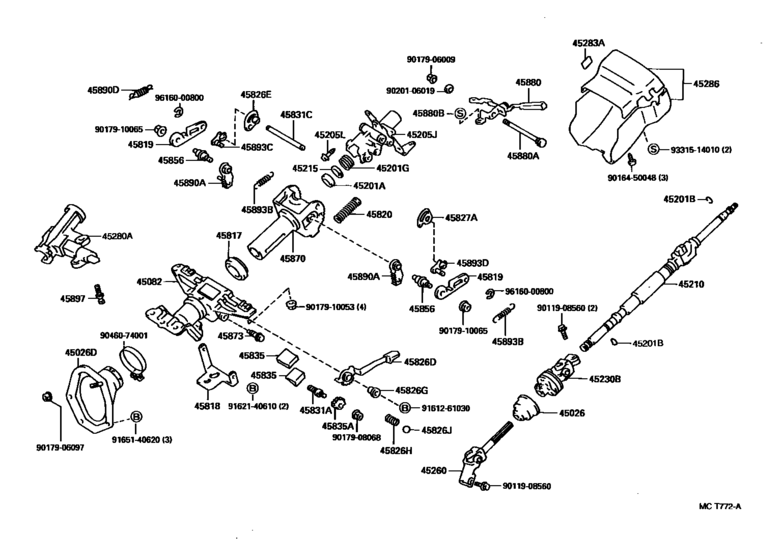

Steering Column & Shaft ([08.1993 - ] (9308- )VCV10) 107
#OEMPart name
45026 45026-33020 Cover Sub-Assy, Steering Column Hole, No.2
45026 45025-33020 Cover Sub-Assy, Steering Column Hole, No.1
45082 45082-33010 Bracket Sub-Assy, Break Away W/capsule
45201 90363-18005 Bearing(For Steering Main Shaft)
45201 90520-16002 Ring, Shaft Snap(For Steering Main Shaft)
45201 90520-17042 Ring, Shaft Snap(For Steering Main Shaft)
45201 90501-40017 Spring, Compression(For Steering Main Shaft)
45205 45205-32131 Tube Sub-Assy, Steering Column, Upper
45205 45205-33041 Tube Sub-Assy, Steering Column, Upper
45205 45205-33060 Tube Sub-Assy, Steering Column, Upper
45205 45205-33100 Tube Sub-Assy, Steering Column, Upper
45205 90159-60398 Screw(For Steering Column Tube)
45210 45210-33030 Shaft Assy, Steering Main
45210 45210-33031 Shaft Assy, Steering Main
45215 45215-12010 Collar, Main Shaft Bearing Thrust
45230 45230-33020 Joint Assy, Steering Shaft Universal
45260 45260-33020 Shaft Assy, Steering Intermediate, No.2
45260 45260-33040 Shaft Assy, Steering Intermediate, No.2
45280 45280-32290 Bracket Assy, Steering Column, Upper
45283 45283-22010 Plate, Safety Caution
45286 45023-33900-B0 Cover, Steering Column
45286 45023-33900-C0 Cover, Steering Column
45286 45023-33900-E1 Cover, Steering Column
45286 45286-33904-E0 Cover, Steering Column
45286 45286-33904-22 Cover, Steering Column
45286 45286-33904-S4 Cover, Steering Column
45286 45286-33911-B0 Cover, Steering Column
45286 45286-33911-C0 Cover, Steering Column
45286 45286-33912-B0 Cover, Steering Column
45286 45286-33912-C0 Cover, Steering Column
45817 45817-20040 Stopper, Steering Shaft Thrust
45818 45818-32070 Bracket, Connector
45819 45819-20070 Retainer, Tilt Lever
45819 45819-20080 Retainer, Tilt Lever
45819 45819-22060 Retainer, Tilt Lever
45820 45820-12020 Spring Assy, Tilt Steering Support
45820 45820-32010 Spring Assy, Tilt Steering Support
45820 45820-32030 Spring Assy, Tilt Steering Support
45820 45820-32020 Spring Assy, Tilt Steering Support
45826 45826-32051 Lever, Steering Telescopic
45826 45826-22050 Lever, Steering Tilt
45826 90389-10022 Collar(For Steering Telescopic Lever)
45826 90501-12014 Spring, Compression(For Steering Telescopic Lever)
45826 90360-06001 Ball (For Hoist Cylinder)
45827 45827-20050 Lever, Steering Tilt Sub
45827 45827-22030 Lever, Steering Tilt Sub
45831 45831-22010 Bolt, Telescope Lever Lock
45831 45831-20030 Shaft, Tilt Lever Lock
45831 45831-22020 Bolt, Tilt Lever Lock, No.1
45835 45835-22030 Wedge, Lock
45835 45835-22040 Wedge, Lock
45835 45835-22020 Attachment, Tilt Lever Serration
45856 45856-20030 Bolt, Tilt Steering, No.2
45856 45856-20040 Bolt, Tilt Steering, No.2
45856 45856-22010 Bolt, Tilt Steering, No.1
45870 45870-20380 Tube Assy, Steering Column
45870 45870-33140 Tube Assy, Steering Column
45873 45873-50020 Stopper, Steering Column Tube
45880 45880-32010 Lever Assy, Steering Tilt
45880 90109-06162 Bolt(For Steering Tilt Lever)
45880 90109-06168 Bolt(For Steering Tilt Lever)
45880 90163-50001 Screw(For Steering Tilt Lever)
45890 45890-20110 Pawl Assy, Tilt Steering
45890 45890-22090 Pawl Assy, Tilt Steering
45890 90507-07003 Spring, Tension W/damper(For Adjuster Memory Cover)
45893 90507-08010 Spring, Tension(For Steering Tilt Lever)
45893 90507-08013 Spring, Tension(For Tilt Steering Pawl Stopper)
45893 90507-10019 Spring, Tension(For Tilt Steering Pawl Stopper)
45893 45893-20190 Stopper, Steering Pawl, Rh
45893 45893-20200 Stopper, Steering Pawl, Rh
45893 45893-20210 Stopper, Steering Pawl, Rh
45893 45893-20220 Stopper, Steering Pawl, Rh
45893 45893-20230 Stopper, Steering Pawl, Rh
45893 45893-20240 Stopper, Steering Pawl, Rh
45893 45893-20250 Stopper, Steering Pawl, Rh
45893 45893-24010 Stopper, Tilt Steering Pawl
45893 45893-24020 Stopper, Tilt Steering Pawl
45893 45893-24030 Stopper, Tilt Steering Pawl
45893 45893-24040 Stopper, Tilt Steering Pawl
45893 45893-24050 Stopper, Tilt Steering Pawl
45893 45893-24060 Stopper, Tilt Steering Pawl
45893 45893-24070 Stopper, Tilt Steering Pawl
45893 45893-20260 Stopper, Tilt Steering Pawl
45893 45893-20270 Stopper, Tilt Steering Pawl
45893 45893-20280 Stopper, Tilt Steering Pawl
45893 45893-20290 Stopper, Tilt Steering Pawl
45893 45893-20300 Stopper, Tilt Steering Pawl
45893 45893-20310 Stopper, Tilt Steering Pawl
45893 45893-20320 Stopper, Tilt Steering Pawl
45897 45897-12020 Bolt, Steering Lock Set
9011908560 90119-08560 Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer
9016450048 90164-50048 SCREW
9017906009 90179-06009 Nut (For Transmission Control Cable)
9017906009 90179-06156 Nut (For Transmission Control Cable)
9017906097 90179-06097 Clip(For Front Bumper), No.1
9017906097 90179-06206 Nut
9017908068 90179-08068 NUT
9017910053 90179-10053 New Genuine Part
9017910065 90179-10065 Nut, Master Cylinder Push Rod Clevis Lock
9020106019 90201-06019 Washer, Plate(For Steering Tilt Lever)
9046074001 90460-74001 New Genuine Part
9161261030 91612-61030 Bolt (For Transmission Control Cable Bracket)
9162140610 91621-40610 BOLT
9165140620 91651-40620 BOLT
9331514010 93315-14010 SCREW
9616000800 96160-00800 Ring, E(For Counter Weight)
