VCV10

Toyota SCEPTER · 1992 · 5,601 parts · 184 categories

5,601 items

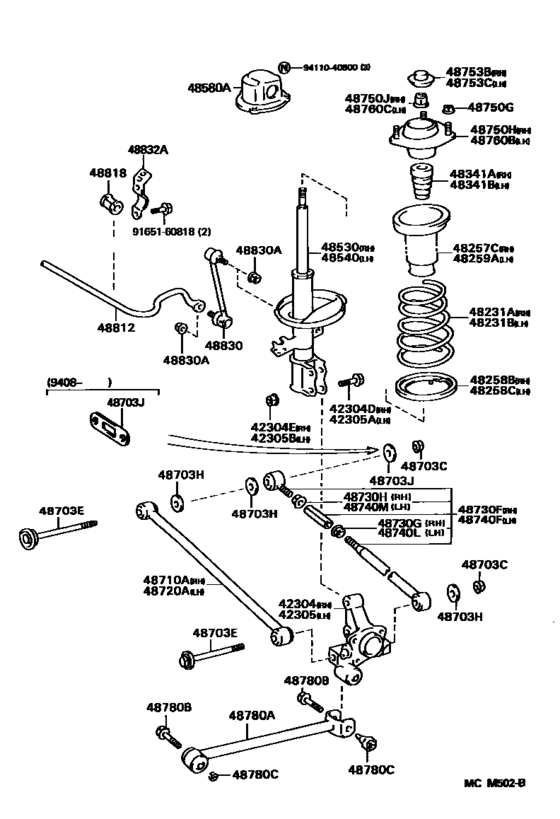

Rear Spring & Shock Absorber ([07.1992 - ] (9207- )) 68

#	OEM	Part name
42304	42304-20090	Carrier Sub-Assy, Rear Axle, Rh
42304	42304-33010	Carrier Sub-Assy, Rear Axle, Rh
42304	90105-15001	Bolt (For Rear Axle Carrier)
42304	90179-15001	Nut (For Rear Axle Carrier)
42305	42305-20090	Carrier Sub-Assy, Rear Axle, Lh
42305	42305-33010	Carrier Sub-Assy, Rear Axle, Lh
48231	48231-33110	Spring, Coil, Rear Rh
48257	48257-32060	Insulator, Rear Coil Spring, Upper Rh
48258	48258-32020	Insulator, Rear Coil Spring, Lower Rh
48259	48259-32020	Insulator, Rear Coil Spring, Upper Lh
48341	48341-32051	Bumper, Rear Spring, No.1 Rh
48341	48341-32052	Bumper, Rear Spring, No.1 Rh
48530	48530-32270	Absorber Assy, Shock, Rear Rh
48530	48530-39255	Absorber Assy, Shock, Rear Rh
48530	48530-33070	Absorber Assy, Shock, Rear Rh
48530	48530-80127	Absorber Assy, Shock, Rear Rh
48530	48530-39225	Absorber Assy, Shock, Rear Rh
48540	48540-32270	Absorber Assy, Shock, Rear Lh
48540	48540-39205	Absorber Assy, Shock, Rear Lh
48540	48540-33070	Absorber Assy, Shock, Rear Lh
48540	48540-39535	Absorber Assy, Shock, Rear Lh
48540	48540-39175	Absorber Assy, Shock, Rear Lh
48580	48580-33020	Cap Assy, Shock Absorber
48703	90179-14019	Nut
48703	90901-09001	Bolt(For Rear Suspension Arm)
48703	90901-19001	Bolt(For Rear Suspension Arm)
48703	90201-14017	Washer(For Rear Suspension Arm)
48703	48715-32010	Washer, No.2(For Rear Suspension Arm)
48703	48715-33010	Washer, No.2(For Rear Suspension Arm)
48710	48710-33020	Arm Assy, Rear Suspension, No.1 Rh
48710	48710-33030	Arm Assy, Rear Suspension, No.1 Rh
48730	48730-33010	Arm Assy, Rear Suspension, No.2 Rh
48730	48730-33020	Arm Assy, Rear Suspension, No.2 Rh
48730	90179-18016	Nut, No.1(For Rear Suspension Arm No.2 Rh)
48730	90179-18017	Nut, No.1(For Rear Suspension Arm No.2 Rh)
48740	48740-33010	Arm Assy, Rear Suspension, No.2 Lh
48740	48740-33020	Arm Assy, Rear Suspension, No.2 Lh
48740	48740-33040	Arm Assy, Rear Suspension, No.2 Lh
48740	90179-16022	Nut, No.1(For Rear Suspension Arm No.2)
48750	90179-08122	Nut(For Rear Suspension Support)
48750	48750-33010	Support Assy, Rear Suspension, Rh
48750	48750-33011	Support Assy, Rear Suspension, Rh
48750	94182-11400	Nut(For Idler Arm Support)
48750	94184-61400	Nut(For Idler Arm Support)
48753	48753-32041	Cover, Rear Suspension Supoport, No.1 Rh
48760	48760-33010	Support Assy Rear Suspension, Lh
48760	48760-33011	Support Assy Rear Suspension, Lh
48780	48780-12010	Rod Assy, Strut, Rear
48780	48780-32060	Rod Assy, Strut, Rear
48780	48780-33010	Rod Assy, Strut, Rear
48780	90119-12131	Bolt(For Strut Rod)
48780	90080-11133	Bolt(For Strut Rod)
48780	90179-12062	Nut(For Rear Suspension Arm)
48780	90179-12063	Nut(For Rear Suspension Arm)
48780	90179-12091	Nut(For Front Suspension Lower Arm)
48812	48812-06020	Bar, Stabilizer, Rear
48812	48812-33020	Bar, Stabilizer, Rear
48812	48812-33090	Bar, Stabilizer, Rear
48812	48812-AA030	Bar, Stabilizer, Rear
48818	48818-33011	Bush, Stabilizer, Rear
48818	48818-33040	Bush, Stabilizer, Rear
48830	48830-33010	Link Assy, Rear Stabilizer
48830	90179-10054	Nut, No.1 (For Center Support Bearing)
48832	48832-33010	Bracket, Rear Stabilizer Bar, No.1
48832	48832-33020	Bracket, Rear Stabilizer Bar, No.1
9165160818	91651-60818	BOLTWWASHER
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)

OEM	Part name	Category
42304-20090	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
42304-33010	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
42305-20090	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
42305-33010	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48231-33110	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48257-32060	Insulator, Rear Coil Spring, Upper Rh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48258-32020	Insulator, Rear Coil Spring, Lower Rh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48259-32020	Insulator, Rear Coil Spring, Upper Lh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48341-32051	Bumper, Rear Spring, No.1 Rh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48341-32052	Bumper, Rear Spring, No.1 Rh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48530-32270	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48530-33070	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48530-39225	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48530-39255	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48530-80127	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48540-32270	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48540-33070	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48540-39175	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48540-39205	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48540-39535	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48580-33020	Cap Assy, Shock Absorber	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48710-33020	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48710-33030	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48715-32010	Washer, No.2(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48715-33010	Washer, No.2(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48730-33010	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48730-33020	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48740-33010	Arm Assy, Rear Suspension, No.2 Lh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48740-33020	Arm Assy, Rear Suspension, No.2 Lh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48740-33040	Arm Assy, Rear Suspension, No.2 Lh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48750-33010	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48750-33011	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48753-32041	Cover, Rear Suspension Supoport, No.1 Rh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48760-33010	Support Assy Rear Suspension, Lh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48760-33011	Support Assy Rear Suspension, Lh	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48780-12010	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48780-32060	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48780-33010	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48812-06020	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48812-33020	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48812-33090	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48812-AA030	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48818-33011	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48818-33040	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48830-33010	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48832-33010	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
48832-33020	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
90080-11133	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
90105-15001	Bolt (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
90119-12131	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
90179-08122	Nut(For Rear Suspension Support)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
90179-10054	Nut, No.1 (For Center Support Bearing)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
90179-12062	Nut(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
90179-12063	Nut(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
90179-12091	Nut(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
90179-14019	Nut	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
90179-15001	Nut (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
90179-16022	Nut, No.1(For Rear Suspension Arm No.2)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
90179-18016	Nut, No.1(For Rear Suspension Arm No.2 Rh)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
90179-18017	Nut, No.1(For Rear Suspension Arm No.2 Rh)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
90201-14017	Washer(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
90901-09001	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
90901-19001	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
91651-60818	BOLTWWASHER	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
94110-40800	Nut(For Steering Damper)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
94130-00802	Nut, No.1 (For Center Support Bearing)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
94182-11400	Nut(For Idler Arm Support)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
94184-61400	Nut(For Idler Arm Support)	Rear Spring & Shock Absorber ([07.1992 - ] (9207- ))
