VCV10

Toyota SCEPTER · 1992 · 5,601 parts · 184 categories
VCV10 ×

← Back to categories

5,601 items

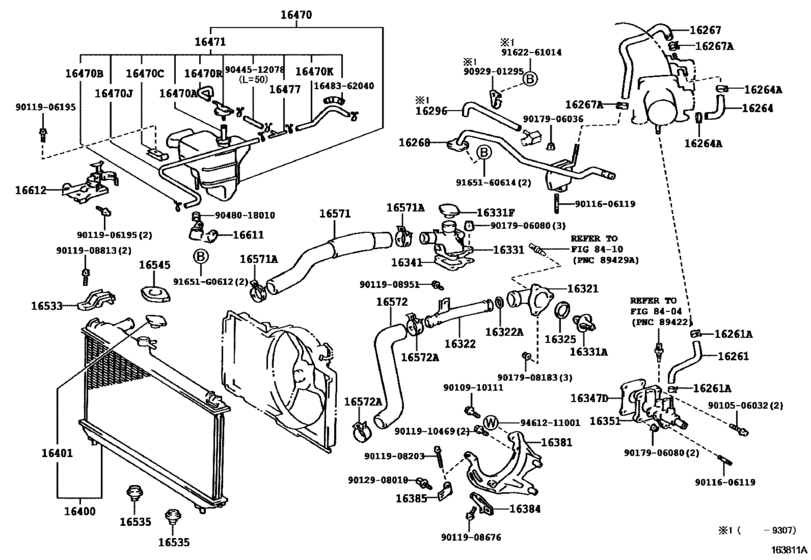

Radiator & Water Outlet ([07.1992 - 08.1993] (9207-9308)3VZFE) 94
#OEMPart name
16261 16261-62020 Hose, Water By-Pass
16261 16261-62030 Hose, Water By-Pass
16261 96135-41300 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 96135-51300 Clamp, Hose
16264 16264-62030 Hose, Water By-Pass, No.2
16267 16267-62031 Hose, Water By-Pass, No.3
16268 16268-62030 Pipe, Water By-Pass, No.1
16296 16296-62010 Hose, Water By-Pass, No.8
16321 16321-62010 Inlet, Water
16322 16322-62020 Pipe, Water Inlet
16322 96711-35031 Ring, O(For Water Inlet)
16322 96761-35031 Ring, O(For Water Inlet Pipe)
16325 16325-62010 Gasket, Water Inlet Housing, No.1
16331 16331-62030 Outlet, Water
16331 16331-62031 Outlet, Water
16331 90916-03075 Thermostat
16331 16401-62090 Cap Sub-Assy(For Water Outlet)
16341 16341-62030 Gasket, Water Outlet
16347 16347-62030 Gasket, Water By-Pass
16351 16351-62050 Outlet, Water By-Pass
16381 16381-62021 Bar, Fan Belt Adjusting
16384 16384-62050 Bracket, Fan Belt Adjusting Bar
16385 16385-62010 Slider, Fan Belt Adjusting
16400 16400-62100 Radiator Assy
16400 16400-62150 Radiator Assy
16400 23322-54010 Plug,air(For Oil Cooler Drain Cock)
16400 96711-19007 Packing(For Radiator Drain Cock)
16401 16401-62100 Cap Sub-Assy, Radiator
16401 16401-31520 Radiator Cap Sub-Assy (108kPa)
16401 16401-36020 Cap Sub-Assy, Radiator
16403 16403-74760 Core Sub-Assy, Radiator
16403 16403-74761 Core Sub-Assy, Radiator
16406 16406-62060 Support(For Oil Cooler)
16442 16442-74760 Ring, O(For Radiator Upper Tank)
16451 16451-74760 Plate, Radiator Core, Upper
16452 16452-74760 Plate, Radiator Core, Lower
16462 16462-46040 Ring, O(For Radiator Upper Tank)
16470 16470-0A010 Tank Assy, Radiator Reserve
16470 16470-20020 Tank Assy, Radiator Reserve
16470 16470-62040 Tank Assy, Radiator Reserve
16470 16472-03010 Hose Or Pipe(For Radiator Reserve Tank)
16470 90445-12078 Hose(For Radiator Breather)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16470 16471-74180 Bracket(For Radiator Reserve Tank)
16470 16472-0A020 Hose, No.3(For Radiator Reserve Tank)
16470 16479-62040 Hose, No.3(For Radiator Reserve Tank)
16470 16478-62040 Hose, No.4(For Radiator Reserve Tank)
16470 85338-70070 Hose Or Pipe(For Radiator Reserve Tank)
16470 16472-0A010 Hose, No.2(For Radiator Reserve Tank)
16470 16477-74180 Hose, No.2(For Radiator Reserve Tank)
16471 16405-0A010 Cap Sub-Assy, Reserve Tank
16471 16405-20010 Cap Sub-Assy, Reserve Tank
16471 16405-62030 Cap Sub-Assy, Reserve Tank
16477 16477-62040 Pipe(For Radiator Reserve Tank)
16491 16491-54790 Cooler, Oil(For Atm)
16491 16492-50020 Ring, O(For Atm Oil Cooler)
16491 16493-62060 Washer, Plate(For Atm Oil Cooler)
16495 16495-74760 Nut, Flare(For Atm Oil Cooler)
16495 16497-74760 Nut, Flare, No.2(For Atm Oil Cooler)
16533 16533-74190 Support, Radiator, Upper
16535 16535-62030 Support, Radiator, Lower
16535 16535-62031 Support, Radiator, Lower
16545 16545-62011 Cover, Radiator Cap
16571 16571-62040 Hose, Radiator, Inlet
16571 90467-37004 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90467-37005 Clip(For Water Inlet Hose)
16572 16572-62030 Hose, Radiator, Outlet
16572 90467-37002 Clip(For Water Inlet Hose)
16611 16611-74080 Bracket, Radiator Reserve Tank
16612 16612-74010 Bracket, Radiator Reserve Tank
16612 16612-74020 Bracket, Radiator Reserve Tank
91651 91651-G0612 New Genuine Part
1648362040 16483-62040 New Genuine Part
9010506032 90105-06032 New Genuine Part
9010506032 91511-G0620 BOLT, FLANGE
9010910111 90109-10111 New Genuine Part
9011606119 90116-06119 Bolt, Stud(For Oil Pan)
9011906195 90119-06195 New Genuine Part
9011908203 90119-08203 New Genuine Part
9011908676 90119-08676 BOLT WWASHER
9011908813 90119-08813 BOLT W-WASHER
9011908951 90119-08951 Bolt (For Transmission Control Cable Bracket)
9011908951 91621-J0814 Bolt (For Transmission Control Cable Bracket)
9011910469 90119-10469 BOLT
9012908010 90129-08010 New Genuine Part
9017906036 90179-06036 Nut, Cap(For Cylinder Head Cover)
9017906036 90179-06299 Nut, Wire Adjusting, No.1
9017906080 90179-06080 NUT
9017908183 90179-08183 NUT
9048018010 90480-18010 Grommet, Radiator Reserve Tank Hose
9092901295 90929-01295 New Genuine Part
9162261014 91622-61014 New Genuine Part
9165160614 91651-60614 Bolt
9461211001 94612-11001 Washer, Plate (For Center Support Bearing Housing)
