Search › Model › VCV10

VCV10

Toyota SCEPTER · 1992 · 5,601 parts · 184 categories

5,601 items

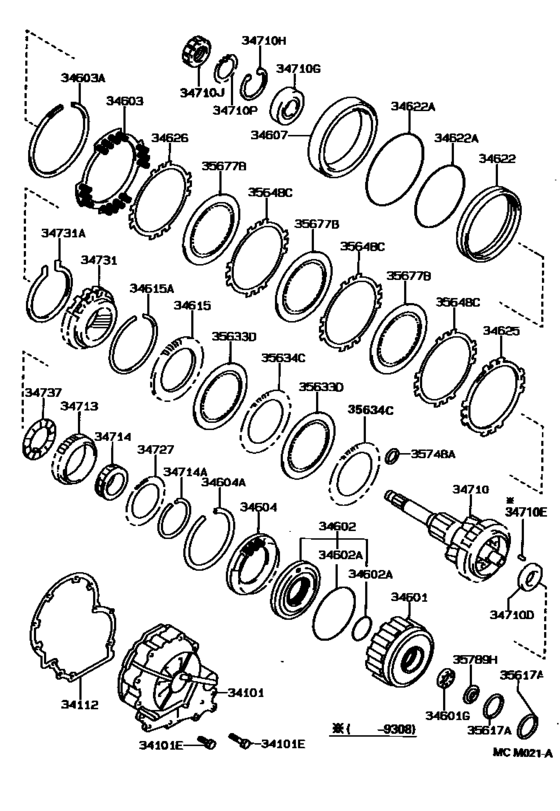

Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10) 54

#	OEM	Part name
34101	34101-33040	Case Sub-Assy, Overdrive
34101	34101-45020	Case Sub-Assy, Overdrive
34101	90949-03043	Spring, Torsion (For Parking Lock Pawl)
34101	34101-33041	Case Sub-Assy, Overdrive
34101	90105-08056	Bolt (For Overdrive Case & Transaxle Case Setting)
34101	90105-08062	Bolt (For Overdrive Case & Transaxle Case Setting)
34101	90105-08103	Bolt (For Overdrive Case & Transaxle Case Setting)
34101	90105-08167	Bolt (For Overdrive Case & Transaxle Case Setting)
34112	34112-32040	Gasket, Overdrive Case
34112	34112-32041	Gasket, Overdrive Case
34601	34601-32021	Drum Sub-Assy, Overdrive Direct Clutch
34601	90374-28009	Bearing,thrust Needle Roller(For Overdrive Direct Clutch)
34601	90374-28013	Bearing,thrust Needle Roller(For Overdrive Direct Clutch)
34602	34602-32020	Piston Sub-Assy, Overdrive Direct Clutch
34602	90301-57188	Ring, O (For Underdrive Clutch Piston)
34602	90301-56007	Ring, O (For Underdrive Clutch Piston)
34602	90301-99016	Ring, O (For Overdrive Direct Clutch Piston)
34603	34603-20010	Spring Sub-Assy, Overdrive Brake Return
34603	90521-99050	Ring, Hole Snap (For Overdrive Brake Return Spring)
34604	34604-32010	Spring Sub-Assy, Overdrive Clutch Return
34604	90521-99060	Ring, Hole Snap (For Overdrive Clutch Return Spring)
34607	34607-32010	Drum Sub-Assy, Overdrive Brake
34615	34615-32010	Flange, Overdrive Clutch
34615	34615-33020	Flange, Overdrive Clutch
34615	90521-99058	Ring, Hole Snap (For Overdrive Clutch Flange)
34622	34622-20010	Piston, Overdrive Brake
34622	90301-99043	Ring, O (For Overdrive Brake Piston)
34622	90301-99044	Ring, O (For Overdrive Brake Piston)
34625	34625-32020	Flange, Overdrive Brake, No.1
34625	34625-33010	Flange, Overdrive Brake, No.1
34626	34626-20011	Plate, Overdrive Brake Cushion
34710	34710-32020	Gear Assy, Overdrive Planetary
34710	90374-39003	Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)
34710	90334-03001	Plug, Straight(For Overdrive Planetary Gear)
34710	90363-40039	Bearing, Radial Ball(For Overdrive Planetary Gear)
34710	90363-40053	Bearing, Radial Ball(For Overdrive Planetary Gear)
34710	90521-78003	Ring, Hole Snap(For Overdrive Planetary Gear Bearing)
34710	90179-40005	Nut(For Overdrive Planetary Gear)
34710	90209-40001	Washer(For Overdrive Planetary Gear)
34713	34713-32010	Race, 1 Way Clutch Outer (For Overdrive)
34714	34714-32021	Clutch, 1 Way(For Overdrive)
34714	90521-93002	Ring, Hole Snap(For 1 Way Clutch)
34727	34727-32020	Plate, Retaining (For Overdrive)
34731	34731-32022	Gear, Overdrive Planetary Ring
34731	90521-99059	Ring, Hole Snap (For Overdrive Planetary Ring Gear)
34737	34737-32020	Washer, Overdrive Planetary Gear Thrust, No.3
34737	34737-33010	Washer, Overdrive Planetary Gear Thrust, No.3
35617	35617-16010	Ring, Oil Seal (For Overdrive Case)
35633	35633-33030	Disc, Clutch (For Overdrive Direct Clutch)
35634	34615-20010	Flange, Overdrive Clutch
35648	35648-32040	Flange, Overdrive Brake, No.1
35677	35677-33010	Disc, Clutch (For Overdrive Brake)
35748	35748-32010	Ring, Intermediate Shaft Oil Seal (For Overdrive)
35789	35789-20020	Race, Thrust Bearing (For Overdrive Case)

OEM	Part name	Category
34101-33040	Case Sub-Assy, Overdrive	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34101-33041	Case Sub-Assy, Overdrive	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34101-45020	Case Sub-Assy, Overdrive	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34112-32040	Gasket, Overdrive Case	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34112-32041	Gasket, Overdrive Case	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34601-32021	Drum Sub-Assy, Overdrive Direct Clutch	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34602-32020	Piston Sub-Assy, Overdrive Direct Clutch	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34603-20010	Spring Sub-Assy, Overdrive Brake Return	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34604-32010	Spring Sub-Assy, Overdrive Clutch Return	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34607-32010	Drum Sub-Assy, Overdrive Brake	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34615-20010	Flange, Overdrive Clutch	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34615-32010	Flange, Overdrive Clutch	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34615-33020	Flange, Overdrive Clutch	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34622-20010	Piston, Overdrive Brake	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34625-32020	Flange, Overdrive Brake, No.1	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34625-33010	Flange, Overdrive Brake, No.1	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34626-20011	Plate, Overdrive Brake Cushion	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34710-32020	Gear Assy, Overdrive Planetary	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34713-32010	Race, 1 Way Clutch Outer (For Overdrive)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34714-32021	Clutch, 1 Way(For Overdrive)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34727-32020	Plate, Retaining (For Overdrive)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34731-32022	Gear, Overdrive Planetary Ring	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34737-32020	Washer, Overdrive Planetary Gear Thrust, No.3	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
34737-33010	Washer, Overdrive Planetary Gear Thrust, No.3	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
35617-16010	Ring, Oil Seal (For Overdrive Case)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
35633-33030	Disc, Clutch (For Overdrive Direct Clutch)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
35648-32040	Flange, Overdrive Brake, No.1	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
35677-33010	Disc, Clutch (For Overdrive Brake)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
35748-32010	Ring, Intermediate Shaft Oil Seal (For Overdrive)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
35789-20020	Race, Thrust Bearing (For Overdrive Case)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90105-08056	Bolt (For Overdrive Case & Transaxle Case Setting)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90105-08062	Bolt (For Overdrive Case & Transaxle Case Setting)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90105-08103	Bolt (For Overdrive Case & Transaxle Case Setting)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90105-08167	Bolt (For Overdrive Case & Transaxle Case Setting)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90179-40005	Nut(For Overdrive Planetary Gear)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90209-40001	Washer(For Overdrive Planetary Gear)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90301-56007	Ring, O (For Underdrive Clutch Piston)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90301-57188	Ring, O (For Underdrive Clutch Piston)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90301-99016	Ring, O (For Overdrive Direct Clutch Piston)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90301-99043	Ring, O (For Overdrive Brake Piston)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90301-99044	Ring, O (For Overdrive Brake Piston)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90334-03001	Plug, Straight(For Overdrive Planetary Gear)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90363-40039	Bearing, Radial Ball(For Overdrive Planetary Gear)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90363-40053	Bearing, Radial Ball(For Overdrive Planetary Gear)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90374-28009	Bearing,thrust Needle Roller(For Overdrive Direct Clutch)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90374-28013	Bearing,thrust Needle Roller(For Overdrive Direct Clutch)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90374-39003	Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90521-78003	Ring, Hole Snap(For Overdrive Planetary Gear Bearing)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90521-93002	Ring, Hole Snap(For 1 Way Clutch)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90521-99050	Ring, Hole Snap (For Overdrive Brake Return Spring)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90521-99058	Ring, Hole Snap (For Overdrive Clutch Flange)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90521-99059	Ring, Hole Snap (For Overdrive Planetary Ring Gear)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90521-99060	Ring, Hole Snap (For Overdrive Clutch Return Spring)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)
90949-03043	Spring, Torsion (For Parking Lock Pawl)	Overdrive Gear (Atm) ([07.1992 - ] (9207- )VCV10)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 184
Collected: 2026-07-30
