VCV10

Toyota SCEPTER · 1992 · 5,601 parts · 184 categories
VCV10 ×

← Back to categories

5,601 items

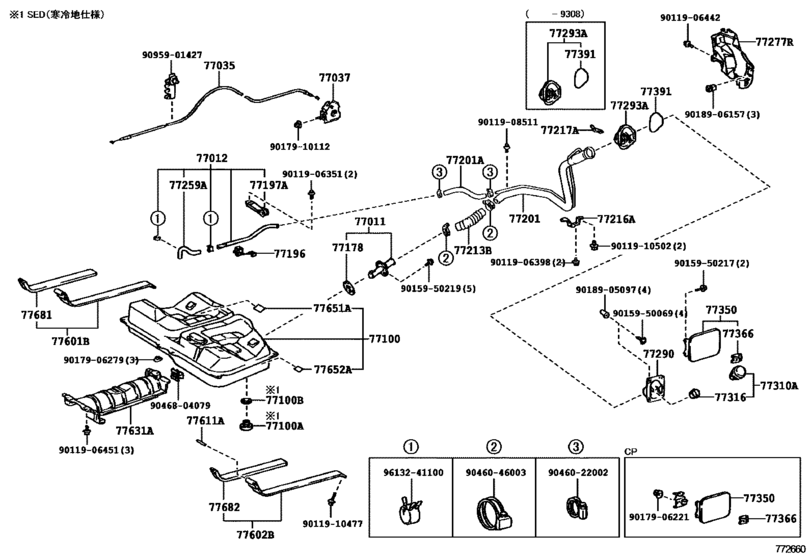

Fuel Tank & Tube ([07.1992 - ] (9207- )) 121
#OEMPart name
77011 77011-10050 Pipe Sub-Assy, Fuel Tank Filler, Lower
77011 77011-41010 Pipe Sub-Assy, Fuel Tank Filler, Lower
77012 77012-33010 Tube Sub-Assy, Fuel Tank Breather
77012 77028-33010 Tube Sub-Assy, Fuel Tank Breather
77012 77196-33020 Clamp, Evaporation Vent Tube, No.1
77035 77035-33030 Cable Sub-Assy, Fuel Lid Lock Control
77037 77037-14020 Lock Sub-Assy, Fuel Filler Opening Lid
77037 77037-32020 Lock Sub-Assy, Fuel Filler Opening Lid
77100 77001-39315 Tank Assy, Fuel
77100 77001-39325 Tank Assy, Fuel
77100 90341-20004 Plug(For Fuel Tank)
77100 90430-20007 Gasket(For Fuel Tank)
77178 77178-20030 Gasket, Fuel Tank Filler Pipe, Lower
77197 77197-33020 Clamp, Evaporation Vent Tube, No.2
77201 77201-32130 Pipe Sub-Assy, Fuel Tank Inlet
77201 90445-22024 Hose, Fuel, No.1(For Fuel Tank)
77213 77213-33010 Hose, Fuel Tank To Filler Pipe
77213 77213-33020 Hose, Fuel Tank To Filler Pipe
77216 77216-32050 Support, Fuel Tank Filler Pipe, No.1
77216 77216-33010 Support, Fuel Tank Filler Pipe, No.1
77217 77217-32030 Support, Fuel Tank Filler Pipe, No.2
77217 77217-33010 Support, Fuel Tank Filler Pipe, No.2
77251 77251-33010 Tube, Fuel Main
77251 77251-33020 Tube, Fuel Main
77255 77255-33020 Tube, Fuel Return
77255 77255-33060 Tube, Fuel Return
77255 77259-33040 Hose, Fuel, No.2 (For Fuel Return Tube)
77259 77259-33010 Hose, Fuel(For Breather Tube)
77261 77261-33020 Tube, Fuel Tank To Canister
77261 77259-33030 Hose, Fuel
77261 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77261 95337-06020 Hose, Differential Pressure Control
77266 77266-33010 Protector, Fuel Tube, No.1
77267 77267-33010 Protector, Fuel Tube, No.2
77273 77273-33020 Clamp, Fuel Tube W/grommet, No.6
77277 77277-06010 Protector, Fuel Tank Filler Pipe
77277 77277-33010 Protector, Fuel Tank Filler Pipe
77277 90447-12133 Hose, Fuel, No.1(For Return Tube, No.1)
77285 77285-33010 Clamp, Fuel Tube W/grommet, No.1
77289 77289-33010 Clamp, Fuel Tube W/grommet, No.3
77290 77290-06010 Shield Assy, Fuel Tank Filler Pipe
77290 77290-32030 Shield Assy, Fuel Tank Filler Pipe
77293 77293-32020 Shield, Fuel Tank Filler Pipe, No.3
77298 77298-33010 Clamp, Fuel Tube W/grommet, No.4
77299 77299-33010 Clamp, Fuel Tube W/grommet, No.5
77310 77310-16011 Cap Assy, Fuel Tank
77310 77310-12140 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-33110 Lid Assy, Fuel Filler Opening
77366 77366-35010 Spring, Fuel Filler Opening Lid Hinge
77391 77391-16011 Ring, Fuel Inlet Box
77412 77412-33010 Support, Fuel Tube Grommet, No.2
77413 77413-33010 Support, Fuel Tube Grommet, No.3
77414 77414-33010 Support, Fuel Tube Grommet, No.4
77415 77415-33010 Support, Fuel Tube Grommet, No.5
77416 77416-33010 Support, Fuel Tube Grommet, No.6
77417 77417-33010 Support, Fuel Tube Grommet, No.7
77601 77601-33010 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-33010 Band Sub-Assy, Fuel Tank, No.1 Lh
77611 90250-08019 Pin (For Fuel Tank Band)
77631 77631-33010 Protector, Fuel Tank, Lower Center
77631 77631-33021 Protector, Fuel Tank, Lower Center
77631 77631-33020 Protector, Fuel Tank, Lower Center
77651 77652-32030 Cushion, Fuel Tank, No.1
77652 77652-33010 Cushion, Fuel Tank, No.2
77681 77681-32040 Seat, Fuel Tank Band, Rh
77681 77681-32060 Seat, Fuel Tank Band, Rh
77681 77681-32070 Seat, Fuel Tank Band, Rh
77740 77740-33030 Canister Assy, Charcoal
77751 77751-33020 Bracket, Charcoal Canister Base
77754 77754-33010 Hose, Charcoal Canister Outlet, No.1
77779 77779-33010 Tube, Charcoal Canister Outlet
77795 77795-33010 Hose, Charcoal Canister Outlet, No.2
77796 77796-33010 Hose, Charcoal Canister Outlet, No.3
9011906351 90119-06351 New Genuine Part
9011906398 90119-06398 BOLT WWASHER
9011906442 90119-06442 BOLT WWASHER
9011906450 90119-06450 New Genuine Part
9011906451 90119-06451 BOLT WWASHER
9011908511 90119-08511 BOLT
9011910477 90119-10477 New Genuine Part
9011910477 91655-B1040 BOLT WWASHER
9011910502 90119-10502 BOLT WWASHER
9015950069 90159-50069 SCREW
9015950217 90159-50217 SCREW WWASHER
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9017906219 90179-06219 Nut
9017906219 90182-A0005 Nut
9017906221 90179-06221 New Genuine Part
9017906221 90179-06264 NUT, WWASHER
9017906279 90179-06279 New Genuine Part
9017910112 90179-10112 New Genuine Part
9017910112 90179-10186 New Genuine Part
9018905097 90189-05097 GROMMET SCREW
9018906157 90189-06157 GROMMET SCREW
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046400082 90464-00082 Clamp(For Resistive Cord)
9046711009 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9046712001 90467-12001 Clip(For Carburetor Fuel Hose)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9046713058 90467-13058 Clip, No.2(For Idle-Up Hose)
9046713058 90467-13061 Crip (For Fuel Tank Filler Pipe)
9046804079 90468-04079 Clip(For Front Bumper), No.2
9048015023 90480-15023 Grommet
9091710079 90917-10079 Valve, Check, No.1
9094901499 90949-01499 New Genuine Part
9095901427 90959-01427 New Genuine Part
9161240616 91612-40616 Bolt, Hexagon(for Steering Column Bracket)
9161240616 91611-B0616 Bolt(For Transaxle Case Receiver)
9165640616 91656-40616 Bolt
9165640616 91651-60614 Bolt
9411040600 94110-40600 Nut, Rock
9613230600 96132-30600 Clip(For Actuator Hose)
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100 96132-51100 Clip (For Hose)
